Rooms

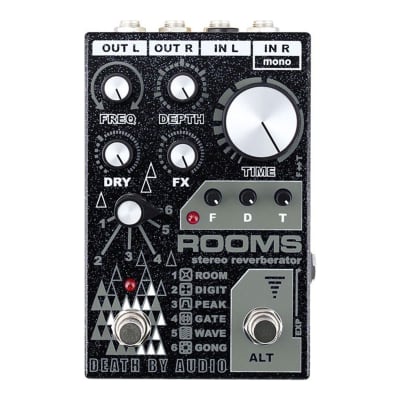

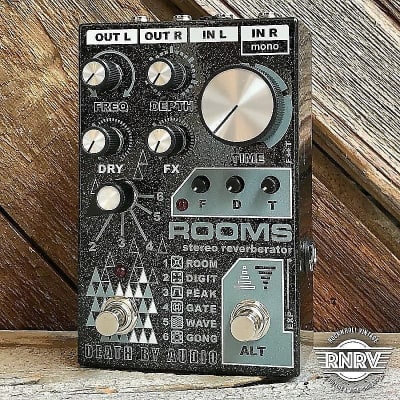

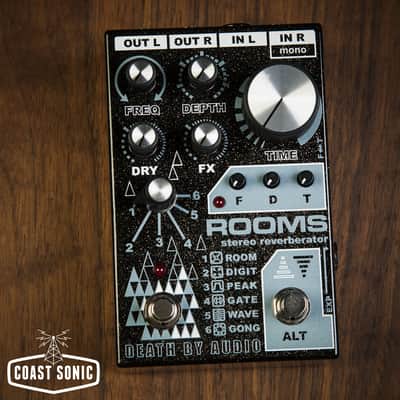

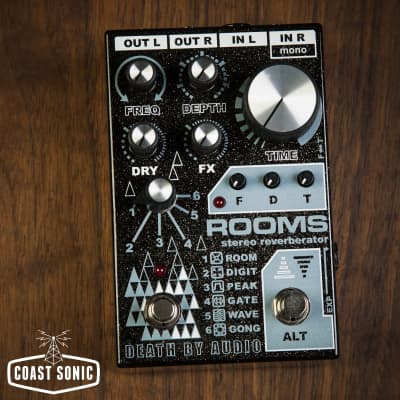

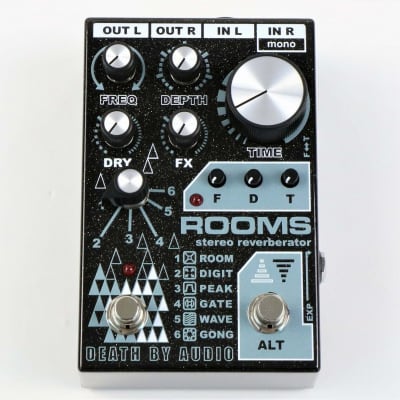

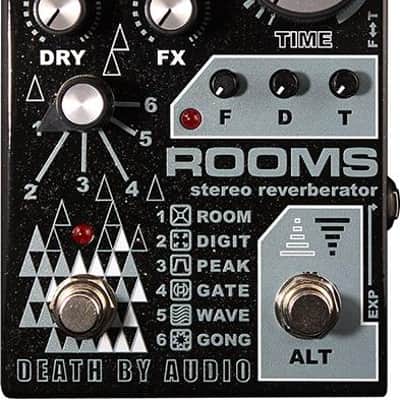

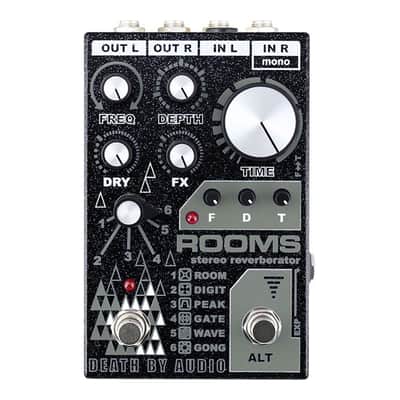

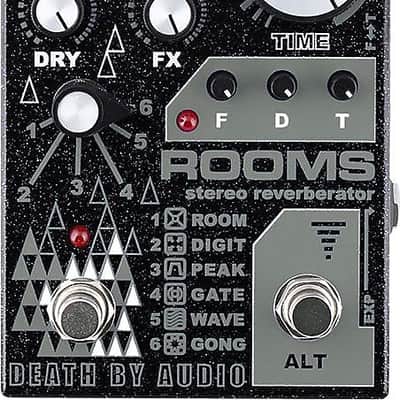

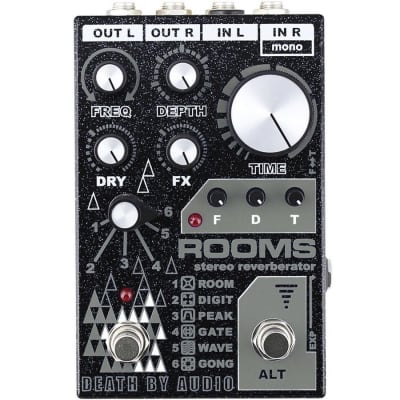

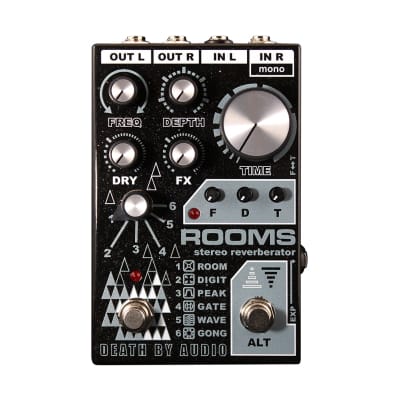

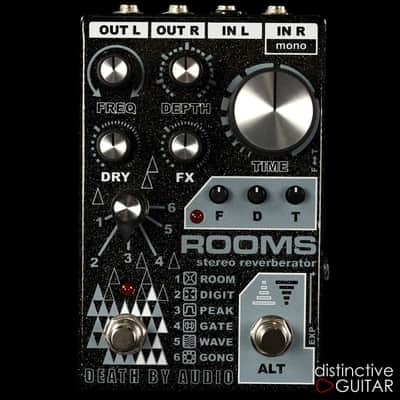

The Rooms by Death By Audio is a stereo, multi-function digital reverb pedal designed for creating various reverberant effects. It offers an intuitive array of controls for live mood-bending performances. The pedal features a studio-quality mixer section providing independent DRY and FX controls over six meticulously programmed reverb algorithms: ROOM, DIGIT, PEAK, GATE, WAVE, and GONG. Each algorithm is capable of producing a wide range of reverberant sounds.

Specifications:
- Dimensions: 5.95" x 3.86" x 2.96" (including hardware)
- Weight: 18 oz

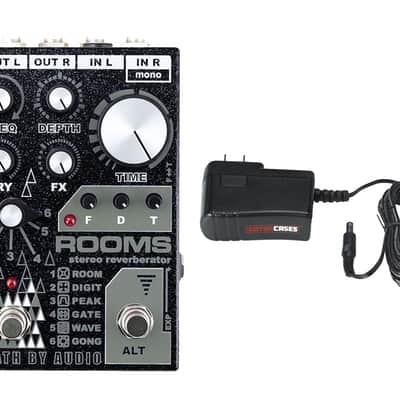

- Power: 80 mA, 9V (runs on a standard 2.1 mm negative center 9V adapter)
- Expression Pedal: Compatible with almost any expression pedal

Controls:
- FREQ: Controls the frequency parameter of the current mode
- DEPTH: Controls the depth parameter of the current mode
- TIME: Controls the reverb time in all modes
- DRY: Controls the volume of the dry signal, from -inf to 20x gain
- FX: Controls the volume of the reverb signal, from -inf to 20x gain
- ALT: Engages the ALT mode, switching between two sets of controls. When active, FREQ is controlled with the F knob, DEPTH with the D knob, and TIME with the T knob. Additionally, the ALT mode turns on expression control of either FREQ or TIME using the F↔T Switch on the side of the pedal. Note: Expression control ONLY works in ALT mode and when an expression pedal is plugged in.

Modes and Parameters:
1. ROOM: Tone of Decay, Pre-Delay
2. DIGIT: Delay Time, Delay Feedback
3. PEAK: Filter Frequency, Filter Resonance
4. GATE: Decay Tone, Gate Response Time
5. WAVE: Modulation Frequency, Modulation Depth
6. GONG: Modulator Frequency, Blends from Aliasing (left) to Ring Modulation (right)

The Rooms pedal also features creative I/O switching and dual-mono dry signal lines, allowing for a wealth of possible mono and stereo configurations, making it easy to route signals for parallel processing or stereo amplifier setups.
