Ghost Echo

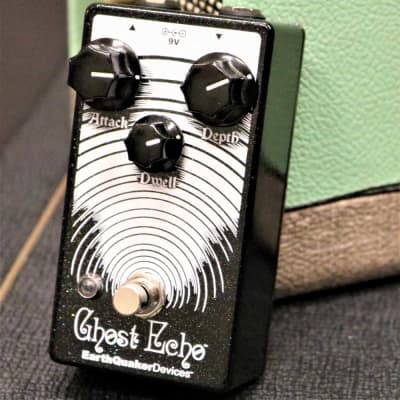

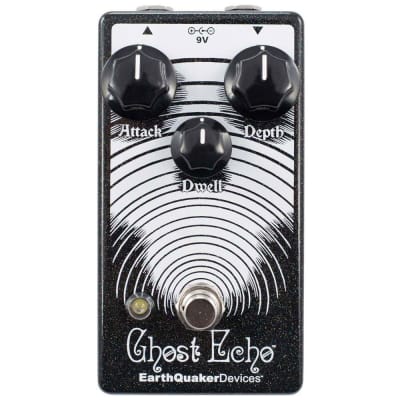

The Ghost Echo by EarthQuaker Devices is a vintage-voiced reverb pedal with the following technical specifications and features:

Dimensions: 4.75 x 2.50 x 2.25 inches (121 x 64 x 57 mm) with knobs
Current Draw: 86 mA
Input Impedance: 10 MΩ
Output Impedance: 1 kΩ
Power: 9 volt DC (center pin negative)
True Bypass with electronic relay-based switching
The pedal offers a pre-delay range of 30ms to 150ms, controlled by the Attack knob, allowing for a variety of reverb effects from quick slapback to deep reverberations. The Dwell control sets the length and thickness of the decay, while the Depth control adjusts the intensity of the reverb.

The Ghost Echo is designed to emulate the haunted amp-top spring reverberation units of the past, providing a vintage reverb sound in a compact stompbox format with simple, intuitive controls.

It is recommended to use pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies to minimize unwanted noise.

The pedal also features updated artwork and silent, relay-based switching for seamless operation.
