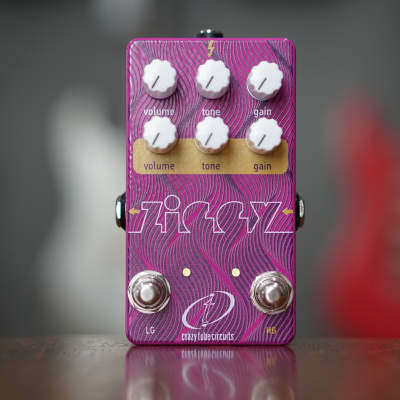

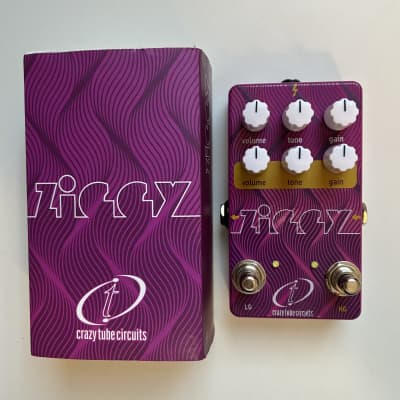

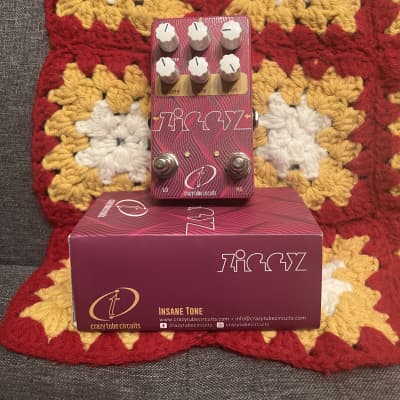

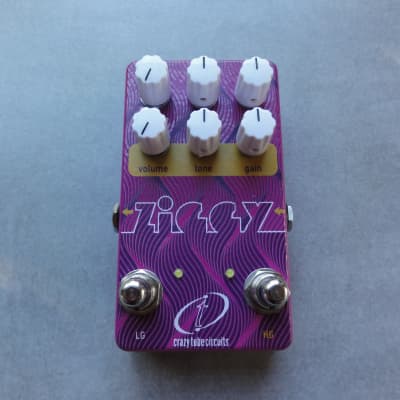

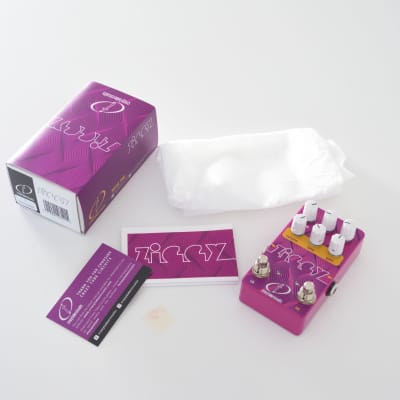

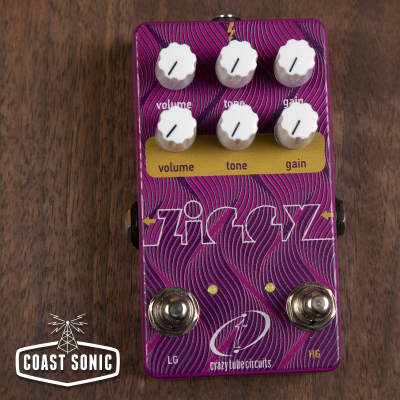

Ziggy Overdrive

The Crazy Tube Circuits Ziggy Overdrive is a dual overdrive/distortion pedal designed with discreet MOSFET gain stages to emulate the response of a tube amp with high touch sensitivity. It features two separate overdrive/distortion channels – low and high gain - each with its own controls for ultimate versatility. The low gain channel is voiced after late 60s Super Bass, while the high gain channel sounds and responds like a late 70s Master Volume British amp.

The pedal includes volume, tone, and gain controls for each channel, with the gain knobs also acting as voicing controls, adding more bass as they are turned clockwise. The tone knobs behave as a presence control, adding bite to the tone. An internal circuitry provides 18V DC from a standard 9V DC power supply to ensure maximum headroom and tube-like response.

Specifications:
- High Gain / Low Gain Channels
- Vol, Tone, Gain Controls
- True-bypass
- Power Supply: 9V DC (Adapter Not Included)

The Ziggy Overdrive also features a 3-way Clipping Switch, input impedance of 1 MOhm, output impedance of 1 kOhm, maximum output level of +6 dBu, maximum gain of 75 dB, and a current draw of 20 mA (DC 9V). Its dimensions are 112 (W) x 60 (D) x 31 (H) mm, and it weighs 250 g.
