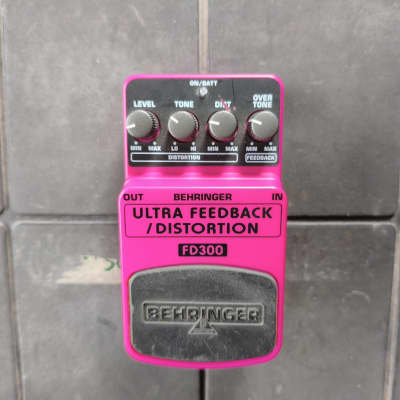

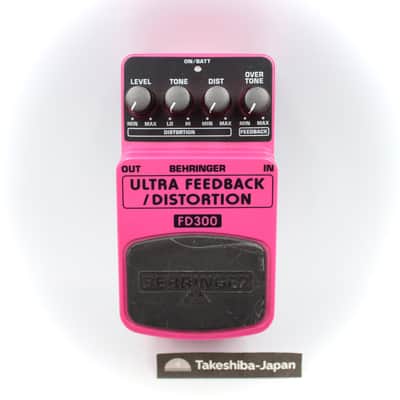

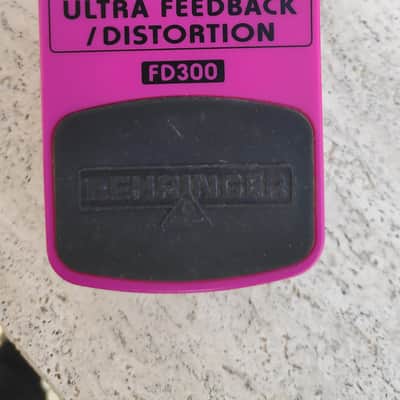

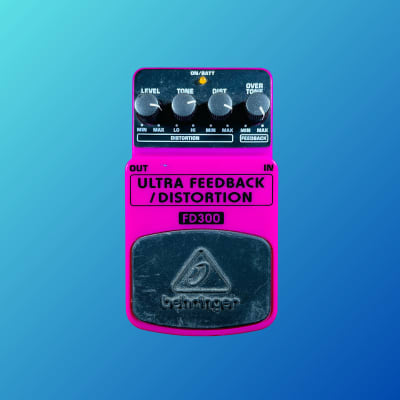

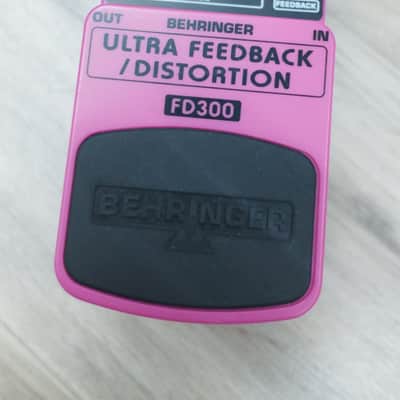

FD300 Ultra Feedback/Distortion

The Behringer FD300 Ultra Feedback/Distortion pedal is designed to produce endless feedback and sustain at any volume by simply pressing down the pedal. It also features an additional distortion circuit that provides super-thick and hard distortion with great dynamic response. Here are the technical specifications and features:

Controls:
1. LEVEL control: Adjusts the output level.
2. TONE control: Shapes the overall sound.
3. DISTORTION control: Adjusts the intensity of the distortion effect.
4. OVERTONE control: Adjusts the amount of overtones causing feedback.
5. ON/BATT LED: Illuminates when the effect is activated and serves as a battery level indicator.
6. Footswitch: Activates/deactivates the distortion effect and adds feedback/sustain to the signal as long as the pedal is pressed.

Connectors:
- 1/4" TS IN connector: Plugs in the instrument cable.
- 1/4" TS OUT connector: Sends the signal to the amp.
- DC IN connection: Plugs in a 9V power supply (not included).

Power Specifications:
- Power Supply: 9V, 100mA regulated
- Power Consumption: 30mA
- Battery: 9V type 6LR61

Physical/Weight:
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg

Safety Instructions:
- Do not use near water or install near heat sources.
- Use only authorized attachments/accessories.
- Do not service the product yourself; contact qualified servicing personnel for repairs.

The FD300 has no on/off switch. As soon as the plug is inserted into the IN connector, the pedal is activated. When not in use, removing the plug from the IN connector extends the life of the battery.
