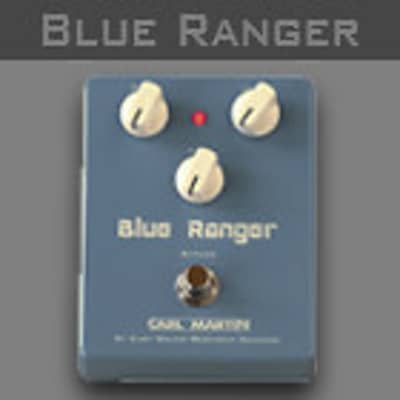

Blue Ranger

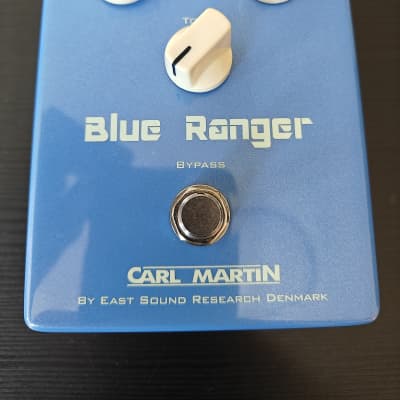

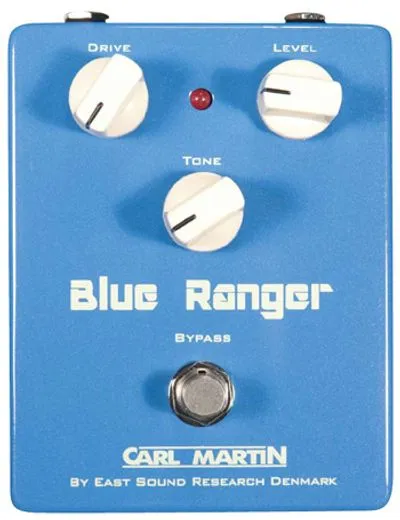

The Carl Martin Blue Ranger is an overdrive guitar effect pedal designed to deliver a Texas-style overdrive. It is equally suited to single coils or humbuckers and features a True Bypass Switch. The pedal incorporates a 'dual- clip' circuit to maintain clear and unmuffled sound at all levels.

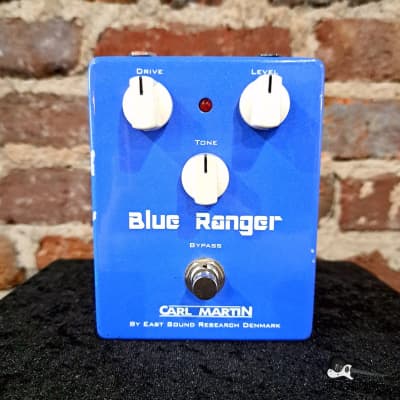

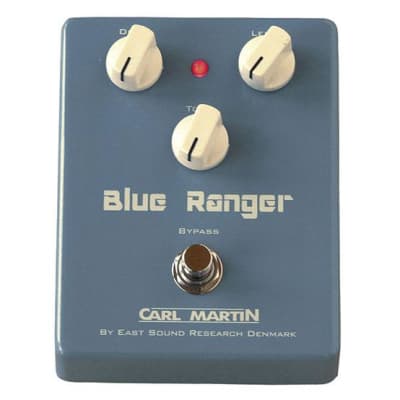

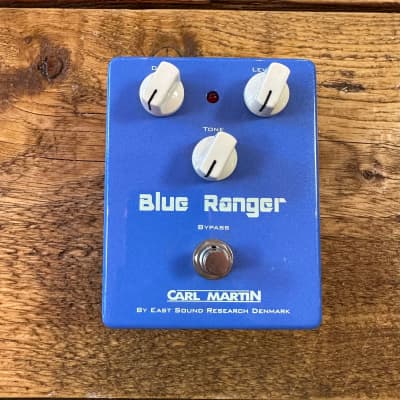

The control layout includes knobs for Level (overall volume), Gain (amount of overdrive), and Tone (fine-tuning the sound). These controls allow for a wide range of tones, from big open chords to saturated leads. With the Gain set to maximum, the Blue Ranger can even cross into Fuzz territory.

Technical Specifications:
- Power consumption: max. 7 mA
- Power supply: 9 V DC (regulated), 30 mA minimum, 2.1 mm female plug, center negative (-)
- Input impedance: 1M Ohm
- Output impedance: 560 Ohm
- Signal-to-Noise Ratio: 54 dB
- Dimensions: 4.72" (W) x 3.74" (D) x 2.2" (H)
- Weight: 0.94 lb

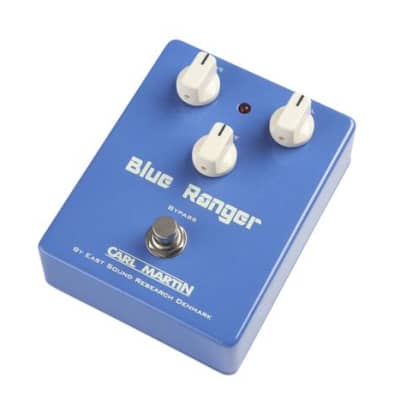

The Blue Ranger is housed in a diecast housing with mini-knobs and a retro color design. It can be powered by a 9V battery, although a regulated power supply is recommended for optimum response.
