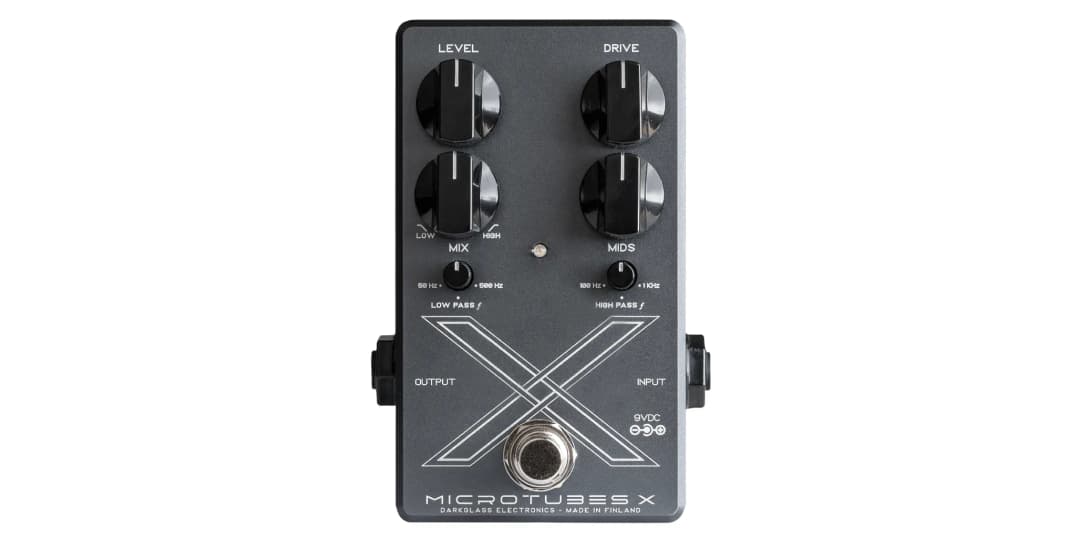

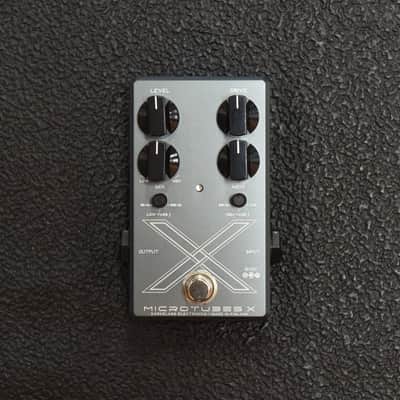

Microtubes X

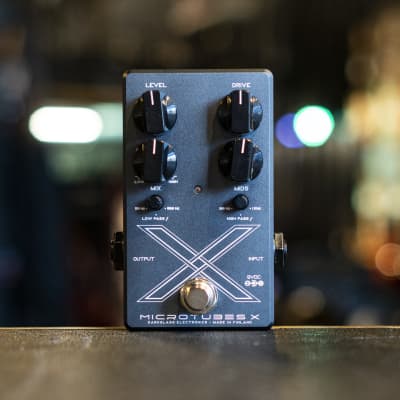

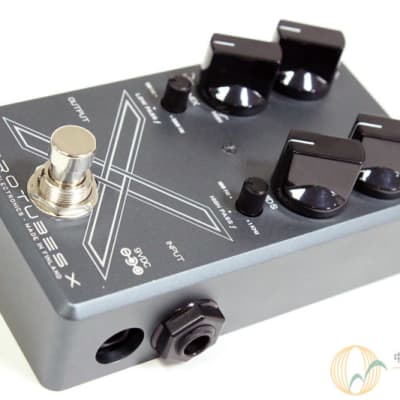

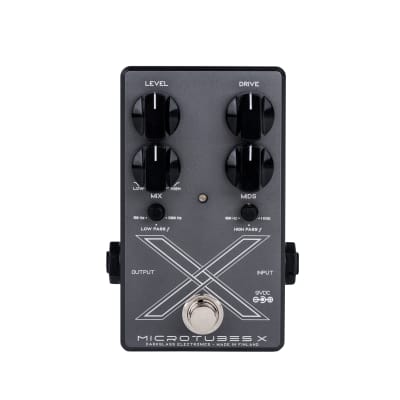

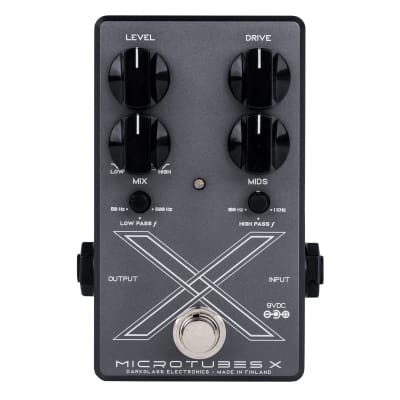

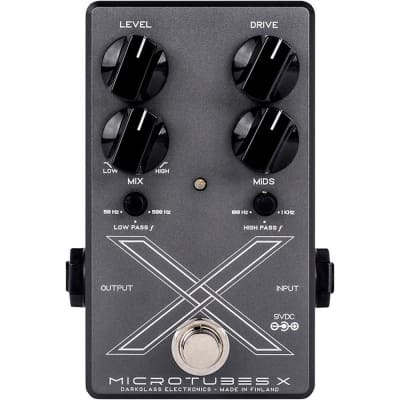

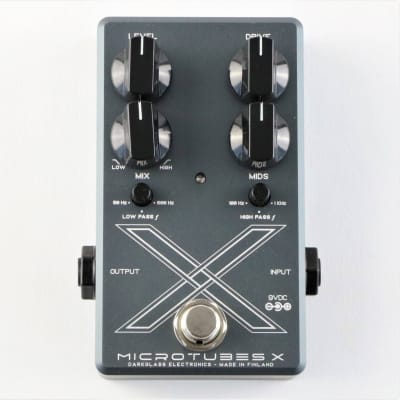

The Microtubes X by Darkglass Electronics is a multiband distortion engine with the following technical specifications:

- High-pass frequency: Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation) or 1kHz for ultra-sharp definition.
- Low-pass frequency: Controls the cutoff frequency to be mixed back to the high-pass side, ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.
- Level: Sets the overall output volume of the unit.
- Drive: Sets the amount of distortion for the high pass side.
- Mix: Sets the blend between low-pass and high-pass signals.
- Mids: Active mid control placed after the Mix control. +-12dB @ 500Hz.
- Output: Connect from the ¼” Output jack to the input of your amplifier or another effects pedal.
- Input: Connect your instrument or output from your pedal board to the ¼” mono jack.
- Power: Only use a regulated 9V DC adapter with a center-negative plug.
- Dimensions: Width: 75 mm / 3″, Length: 111 mm/ 4¼″, Height: 43 mm / 1¾″, Weight: 250 g / 0.55 lb
- Warning: The Microtubes X has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.

The manufacturer claims that the product fulfills the requirements as set by EN55013, EN55020, EN60555-2, EN60555-3, RoHS, WEEE.
