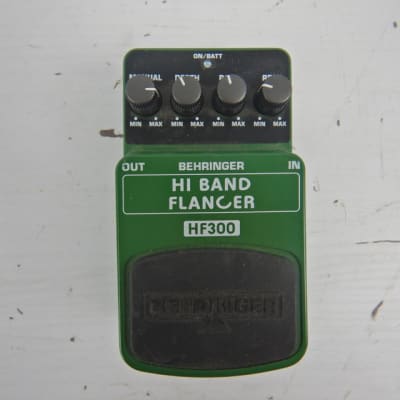

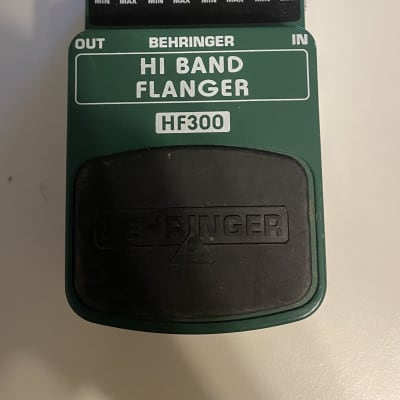

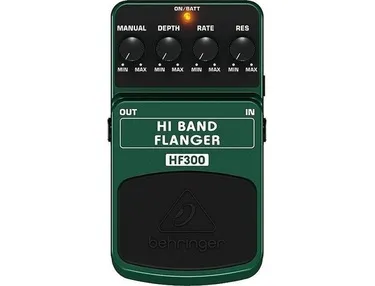

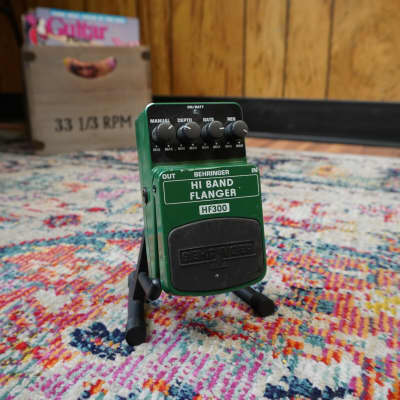

HF300 Hi Band Flanger

The Behringer HF300 Hi Band Flanger is an effects pedal designed to deliver high-quality flanging effects one octave higher than usual for guitars and keyboards. Here are the technical specifications and features:

Controls:
1. MANUAL control: Adjusts the delay length and determines the starting point for the modulation range.
2. DEPTH control: Adjusts the flanger sweep range according to the delay time.
3. RATE control: Adjusts the speed of the flanger’s low-frequency oscillator.
4. RES (resonance) control: Determines the amount of output signal fed back to the flanger input to increase the resonance effect.
5. ON/BATT LED: Illuminates when the effect is activated and serves as a battery level indicator.
6. Footswitch: Activates/deactivates the effect.

Connectors:
- 1/4" TS IN connector: Plug in the instrument cable.
- 1/4" TS OUT connector: Sends the signal to the amp.
- DC IN connection: Plug in a 9V power supply (not included).
- Battery compartment: Located underneath the pedal cover for 9V battery installation.

Specifications:
- Input Impedance: 500 kΩ
- Output Impedance: 1 kΩ
- Power Supply: 9V, 100 mA regulated
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg

Safety Instructions:
- Do not use near water or install near heat sources.
- Use only authorized attachments/accessories.
- Do not service the product yourself; contact qualified servicing personnel for repairs.

Warranty:
- Register the equipment on the Behringer website and read the terms and conditions of the warranty carefully.
