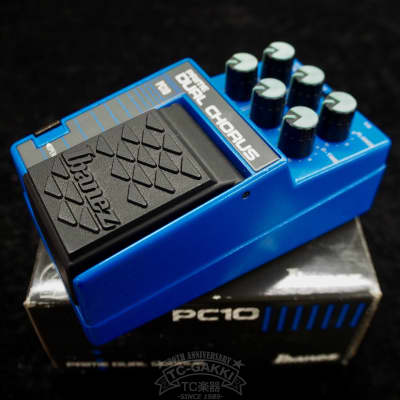

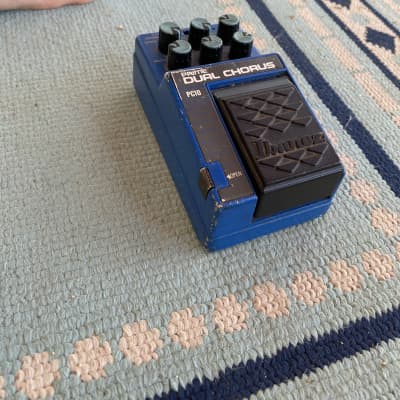

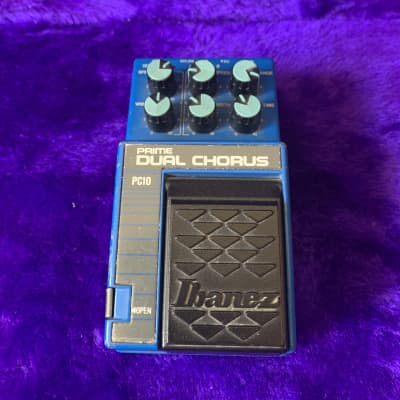

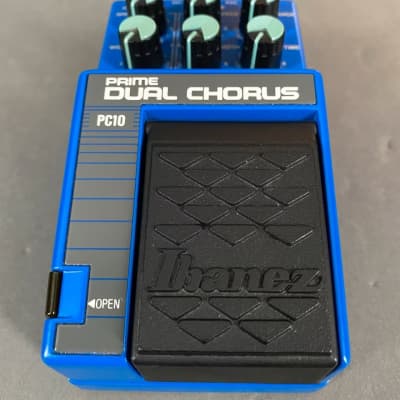

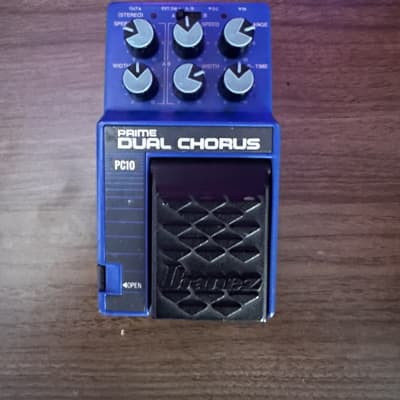

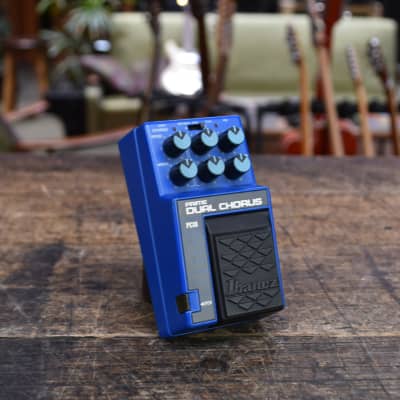

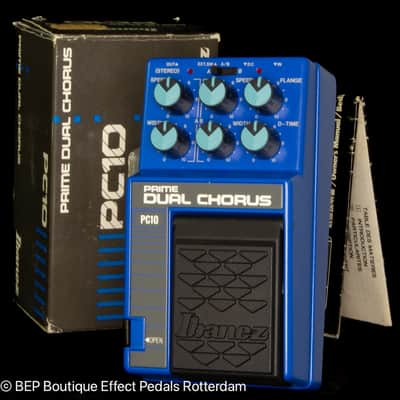

Prime Dual Chorus PC10

The Ibanez Prime Dual Chorus PC10 is a vintage guitar effects pedal that combines the features of a stereo chorus and a flanger in one compact unit. It was produced from 1986 to 1993 and is considered rare.

Features:
- The PC10 has two completely separate modulation sections that can be accessed by either the top-mounted A/B switch or by plugging in an optional footswitch.
- In the "A" mode, depressing the unit's footswitch will give you effect "A" or dry. In the "B" mode, depressing the unit's footswitch will give you effect "B" or dry. In the A/B mode, depressing the unit's footswitch will give you effect A or effect B alternately.
- It features a stereo output jack that, when accessed by a 1/4" stereo plug, provides both normal and inverted effect outputs, enabling true stereo play.

Use:
- The PC10 is a chorus with two modulators (or L.F.O.'s). One of the modulators can also create flanging effects by decreasing delay time and increasing intensity.
- Different speeds and widths on A and B give the best results.
- By using the footswitch "toggle" feature, two presets can be used for convenience in live performance. Two different chorus sounds or a chorus and flanger are available instantly.

Specifications:
- Input Impedance: 500k Ohms
- Output Impedance: < 1k Ohm
- Maximum Input Level: +4 dBv
- Delay Time: A: 3.2ms-6.5ms, B: 1.3ms-6.4ms
- Speed Range: A: 0.6Hz-6Hz, B: 0.035Hz-9Hz
- Equivalent Input Noise: -100 dBv (IHF-A)
- Power Consumption: 28 mA

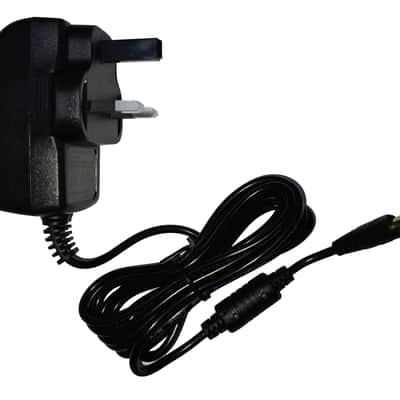

- Power Requirements: 9 V DC
- Dimensions: 125(D) x 70(W) x 54(H) mm
- Weight: 410g
