Radical Delay DX

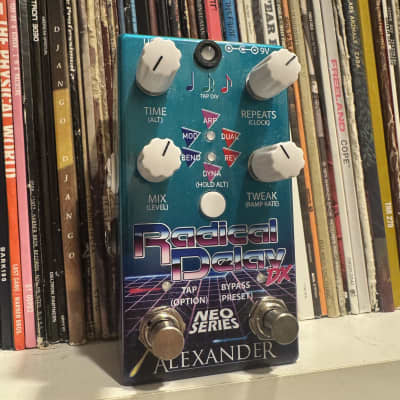

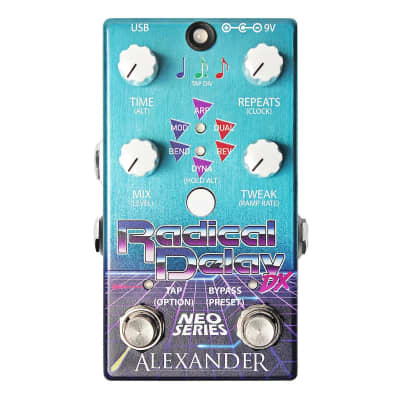

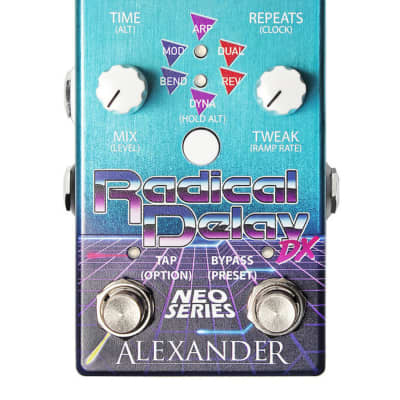

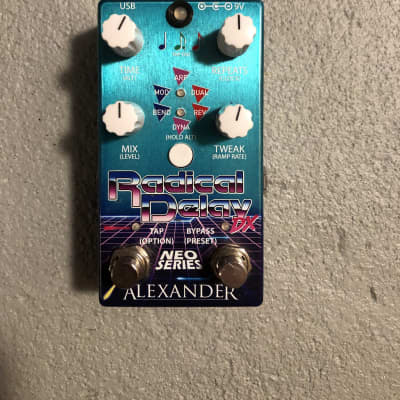

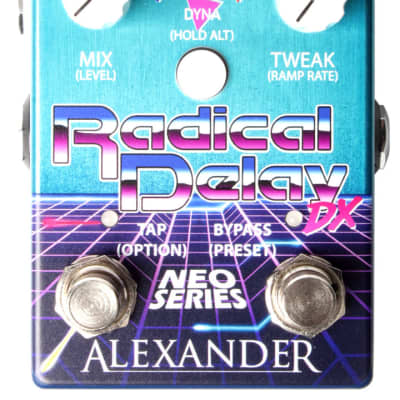

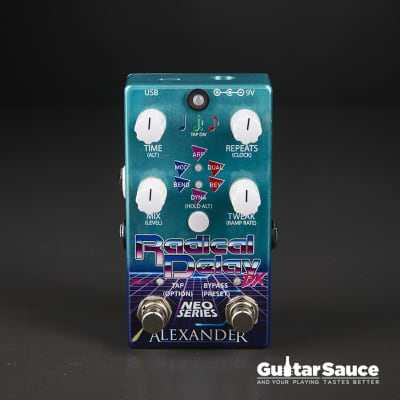

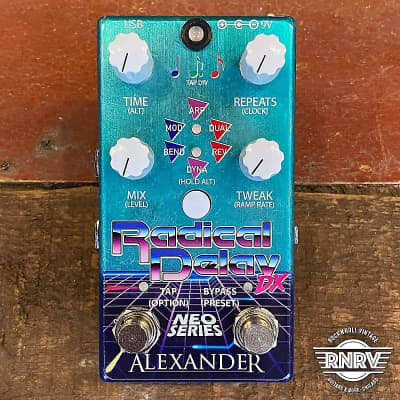

The Alexander Pedals Radical Delay DX is a versatile delay pedal designed to offer a wide range of creative possibilities. Here are its key features and technical specifications:

Features:
- Six delay modes: MOD, BEND, DYNA, REV, ARP, and DUAL
- Four presets, expandable to 16 with a MIDI controller
- MultiJack enables expression pedal, foot switch, or MIDI input
- Neo Morph feature allows controlling all knobs from expression or MIDI
- Tap Tempo with quarter, dotted eighth, and eighth note divisions
- Hold Option switch to cycle delay subdivisions or trigger Neo Morph
- USB port for firmware updates and USB MIDI
- Mono input
- Dual output (mix signal on tip, dry signal on ring)

Technical Specifications:
- Input Impedance: 1M ohms
- Output Impedance: 560 ohms
- Power Requirement: DC 9V only, 100mA or greater (requires isolated DC power supply)
- Dimensions: 4.7″ x 2.6″ x 1.5″ H x W x D (not including knobs)

The Radical Delay DX offers a comprehensive set of delay modes and advanced control options, making it a versatile tool for musicians seeking unique and customizable delay effects.
