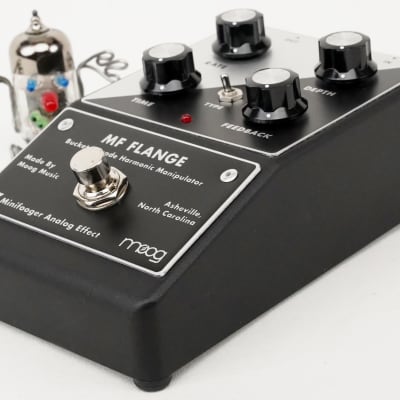

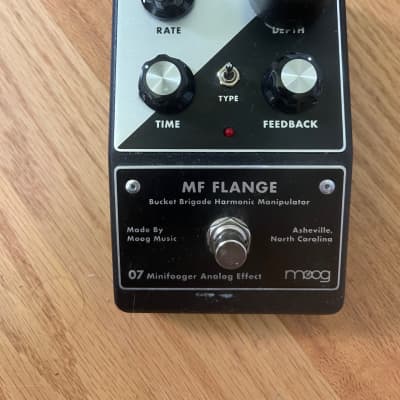

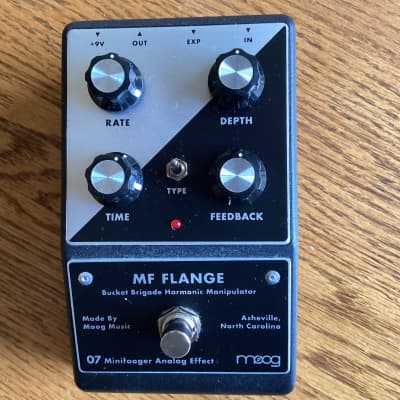

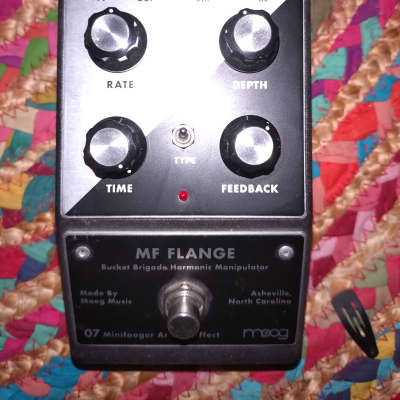

Minifooger MF Flange by Moog

The Minifooger MF Flange by Moog is an all-analog, Bucket Brigade Device (BBD) based harmonic manipulator pedal designed for guitar and bass. It offers a wide array of unique sound sculpting and phase manipulation capabilities. The pedal features a two-position Type switch that toggles between classic flange and vocal modes, allowing users to recreate classics or craft effects unique to their style.

Key Technical Specifications:
- Signal Path: 100% Analog
- Bypass Type: True Bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast Aluminum
- Dimensions: D=5.75” (14.4 cm), W=3.25” (8.3 cm), H=2.25” (5.8 cm)
- Delay Time: <0.540mS – 16mS (0.340-20mS with modulation)
- LFO Rate: <.025Hz - >11Hz
- Expression: Controls Time (Max Input: +5VDC – 60% Sweep Max)
- Input Impedance: >1MΩ
- Output Impedance: <1KΩ
- Max Input Level: +7dB μ
- Max Output Level: +10dB μ
- Current: 20mA Nominal / 30mA Max
- Output Stereo: Type Switch Up LEFT (Mono) = Dry+Wet, Type Switch Up RIGHT = Dry - Wet

The MF Flange also includes controls for Rate, Depth, Feedback, and Time, allowing users to fine-tune the resonant peak of a sweep, create rapid, percussive pulsing, and transition from subtle motion into massive multi- octave sweeps. Additionally, it features an Expression Pedal input assigned to the Time control, enabling manual sweep through the delay frequency range.

The pedal offers mono or stereo output capabilities, and users can access both outputs by setting the switch to Stereo and using a 1/4” TRS to TS splitter cable. The pedal is designed for durability and is suitable for live performances.

For warranty activation and complete warranty details, users can register their Minifooger on the Moog Music website.
