DDR Drive Delay Reverb

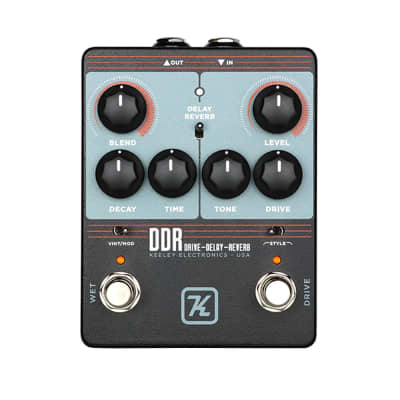

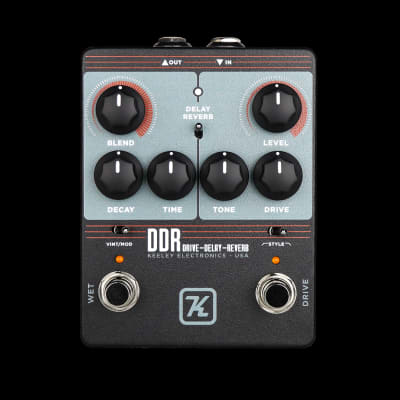

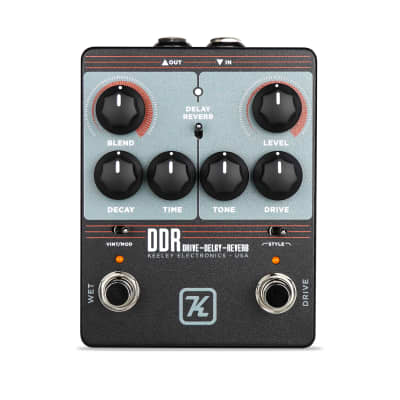

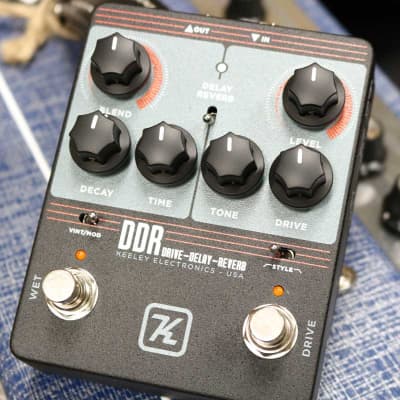

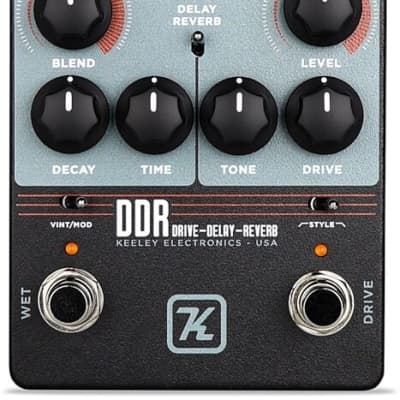

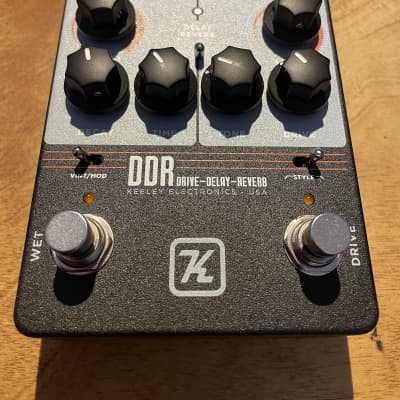

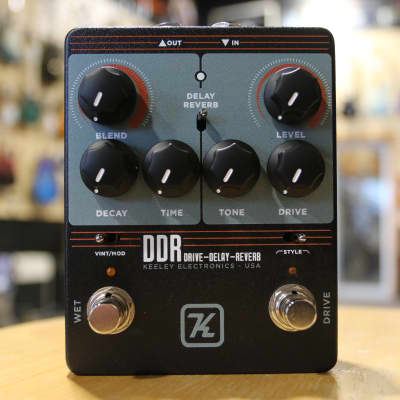

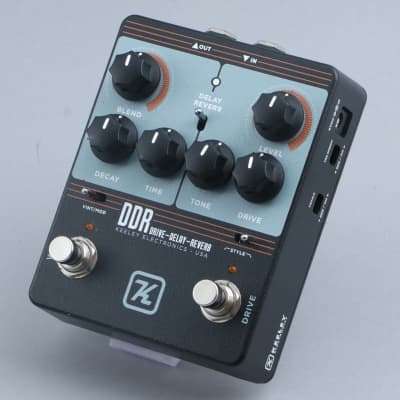

The Keeley DDR Drive Delay Reverb is a versatile multi-effect pedal designed to combine the most common guitar effects into one unit. It offers the following technical specifications and features:

- Pedal Type: Multi-effect Pedal
- Analog/Digital: Analog (drive), Digital (delay)
- Max Delay Time: 1 second
- Inputs: 1 x 1/4" TRS (mono in/insert)
- Outputs: 1 x 1/4" TRS (mono out/insert)
- DRIVE Channel: Offers two modified super-drives to choose from with Volume, Tone, and Drive controls
- STYLE Switch: Allows selection between Tube-amp Crunch or Lead-channel Sustain
- WET Channel: Provides three-knob delay or reverb with Blend, Decay, and Time controls
- Delay/Reverb Switch: Center toggle for WET Mode Select
- Top-mounted jacks for effect pedal insert or split

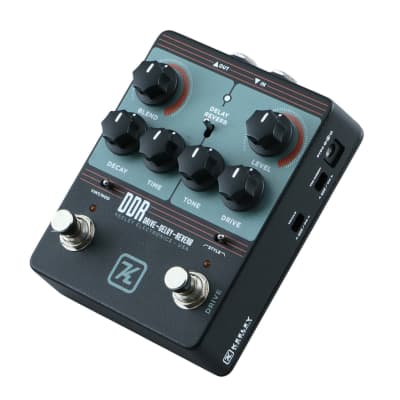

- TRS Insert Switch: Side-mounted selector for inserting effects between Drive and Wet channels
- True-Bypass or Trails Switch: Side-mounted selector for choosing between True Bypass or Trails mode
- Power: 9VDC, 100 mA, no battery option
- Designed and Made in the USA

The DDR's clipping circuitry is a modded Keeley 1962 with a Katana boost on top, offering versatile overdrive tones. The Vintage/Modern Switch allows toggling between Spring & Plate reverb or Analog & Digital delay. Additionally, the pedal features a built-in effects loop to insert effects between Drive and Wet channels, providing flexibility in pedalboard layout.

The DDR Drive Delay Reverb is suitable for guitarists seeking a compact and comprehensive solution for overdrive, delay, and reverb effects, offering a wide range of tonal possibilities in a single pedal.
