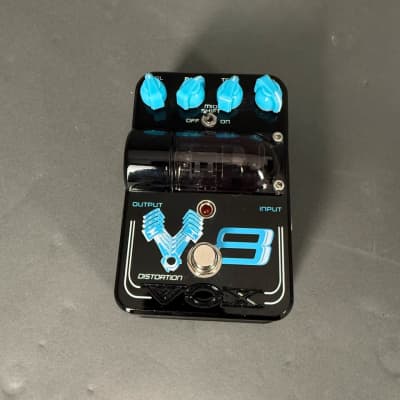

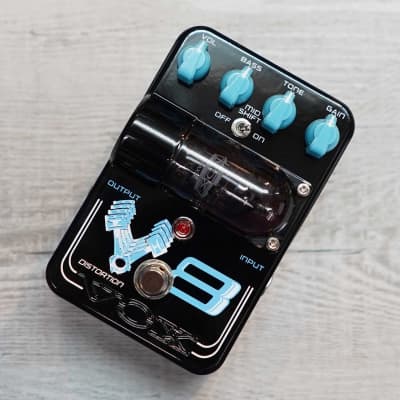

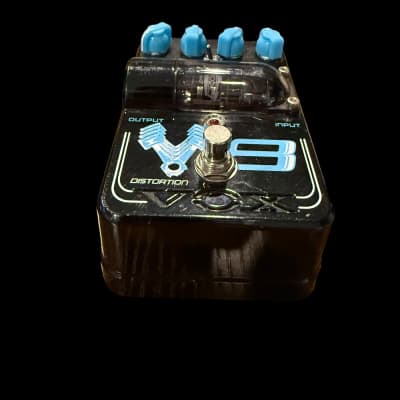

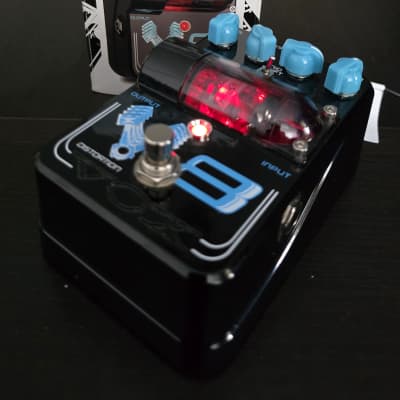

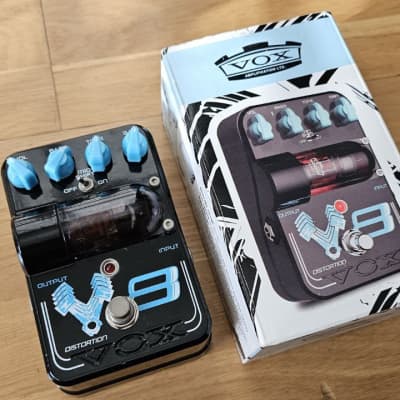

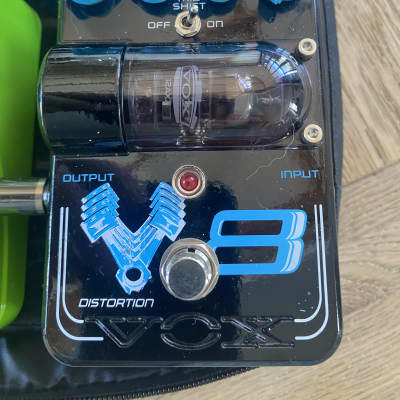

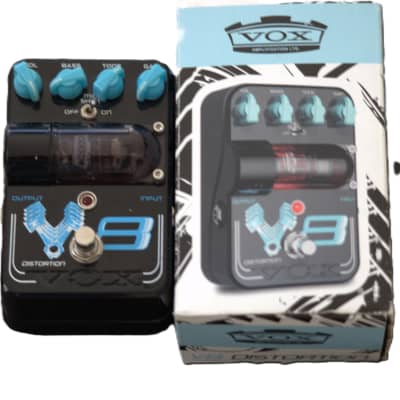

Tone Garage V8 Distortion

The VOX Tone Garage V8 Distortion (V8DS) is a high-gain distortion pedal designed to deliver awe-inspiring tones suitable for heavy riffs, soloing, and cutting high-gain lead sounds. It features a mid-shift switch that allows users to change the band where the mid-range peaks, providing a broad range with an emphasized attack when turned off, and shifting the band to be more suitable for lead playing when turned on.

Specifications:
- Input impedance: 1M Ω
- Output impedance: 2.2k Ω
- Vacuum tube: ECC83 / 12AX7
- Connections: INPUT jack (guitar input), OUTPUT jack (line output)
- Power: AA battery x 6, AC adapter: DC 9V (Option)
- Vacuum tube operating voltage: 200 V
- Consumption current: 240 mA
- Battery Life: Approximately 7 hours
- Dimensions: 87 x 132 x 63 mm / 3.43 x 5.20 x 2.48 inches
- Weight: 420 g / 14.81 oz (not including battery)
- Accessories: AA alkaline battery x 6 (for verifying operation)

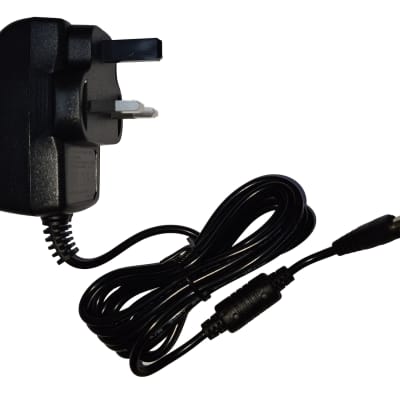

- Options: AC Adapter

The pedal is built with a tough die-cast body for durability and features true bypass design for tonal confidence even when the effect is off. It utilizes newly developed Hi-Volt technology on the tube stomp models, allowing the tube to operate at 200V. The pedal's internal structure contains all-discrete circuitry, with no integrated circuits such as op-amp ICs, and uses rigorously refined discrete circuits. The true bypass design ensures that the sound of the guitar will not be compromised or colored when the effect is bypassed.
