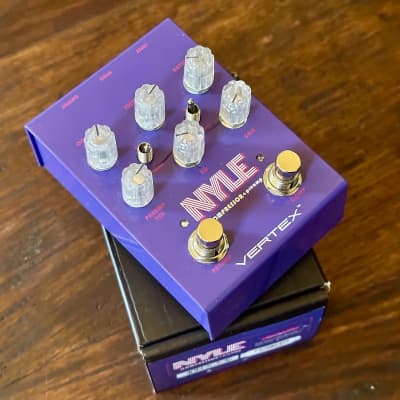

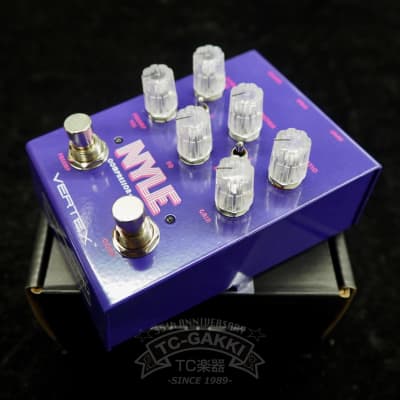

Nyle Compressor Preamp

The Nyle Compressor Preamp by Vertex is a compressor-preamp hybrid that combines classic studio rack compressors of the 70s and 80s with a vintage preamp, offering a range of features and controls for versatile use. Here are the technical specifications and features:

Features:
- Analog Studio-Grade Compressor
- "Vintage Voiced" Mic Preamp
- 100% Mechanical True Bypass
- Designed in California
- Lifetime Warranty (Discontinued Feb 1, 2021)

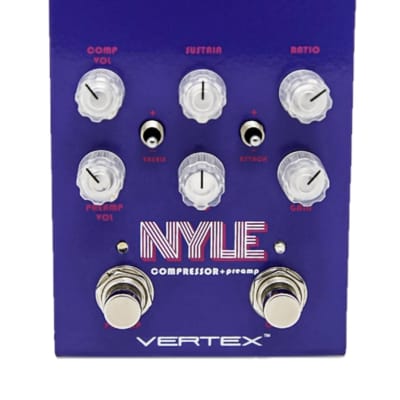

Controls:
- Comp Vol, Sustain, Ratio, Attack for compressor side
- Preamp Vol, EQ, Gain, Treble for preamp circuit
- Three-way toggle switches for attack, treble, and ratio
- Tone knob for adjusting low-mid frequencies

Dimensions:
- 6” x 4” x 6”

Power:
- Power Connector: 2.1mm barrel (center negative)
- DC Voltage: 9.6V (9.8 Max)
- Current Consumption: Less than 10mA

The Nyle Compressor Preamp offers compression, EQ shaping, and level control in one enclosure, making it suitable for achieving classic funk clean tones or glassy bass tones.
