AC-Tone Single Channel

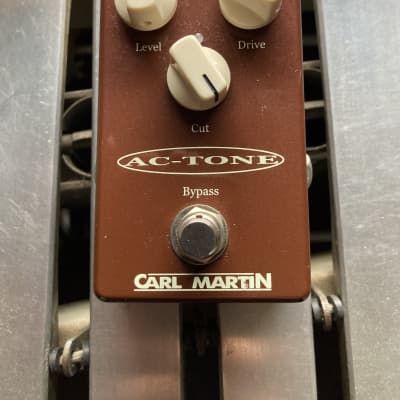

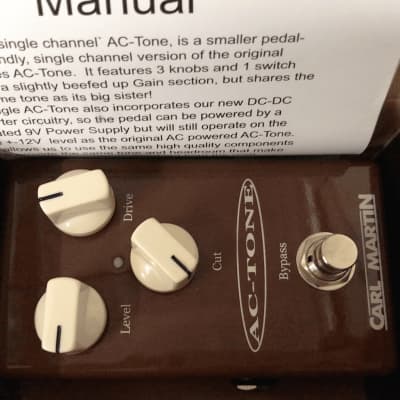

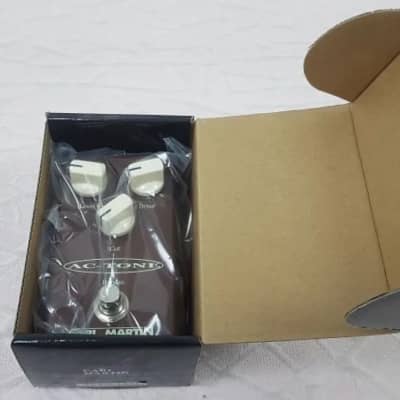

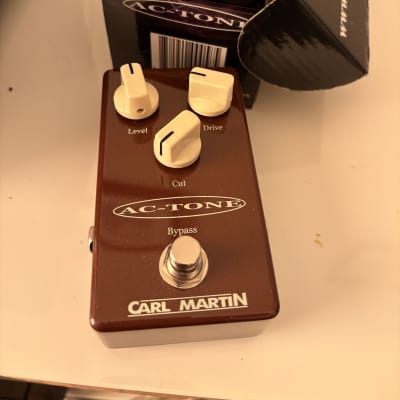

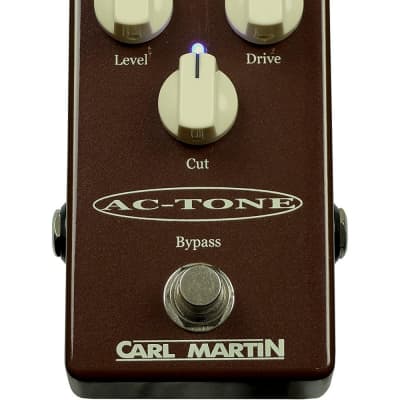

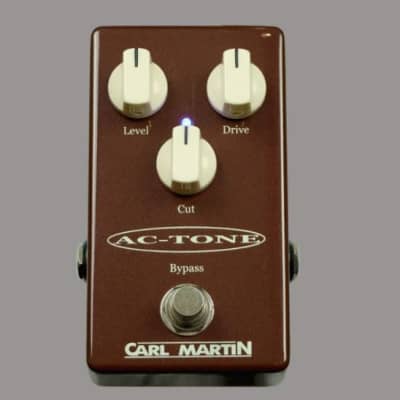

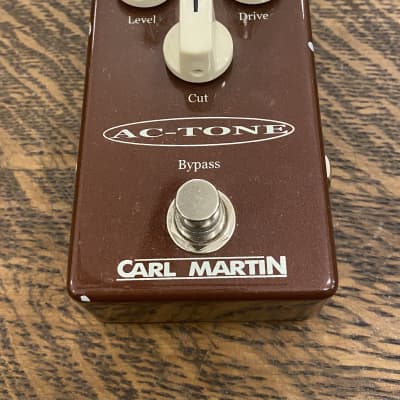

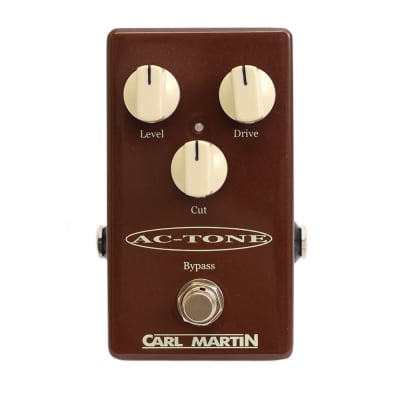

The Carl Martin AC-Tone Single Channel pedal is a scaled-down version of the dual channel Pro Series AC-Tone, featuring top-boosted Vox tones in a compact metal enclosure. It includes three simple controls for drive, output level, and high-frequency cut, mimicking the cutting drive tones of vintage AC-series British amps. The pedal incorporates a new DC-DC converter circuitry, allowing it to be powered by a regulated 9V power supply while operating on the same +-12V level as the original AC powered AC-Tone. This ensures the use of high- quality components that provide the same tone and headroom as the CM Pro- Series pedals. The pedal dimensions are 186mm (D) x 120mm (W) x 55mm (H). The power specifications include power consumption of 2.3 Watts and the ability to operate on 100, 115, or 230 VAC 50-60Hz power. The pedal offers a gain max of +80dB and a boost max of +20dB, with a signal-to-noise ratio of 58 dB.
