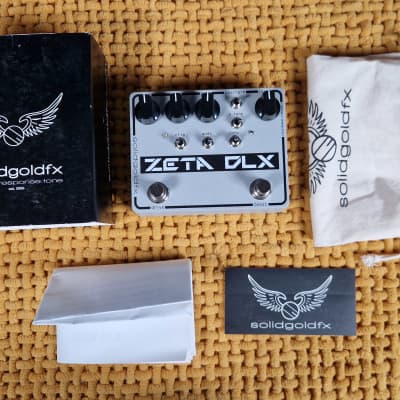

Zeta DLX

The SolidGoldFX Zeta DLX is a versatile guitar effects pedal that combines a preamp, overdrive, and boost functions. Here are the technical specifications and features:

- Technology: Transistors
- Compact effect pedal for guitar
- Made in Canada
- Year of release: 2020
- Controls: Volume, Tone, Gain, Body, Mids, Clip, Level, B. Tone, Post/Pre switch
- True bypass
- Optional 9VDC power supply (center negative, 30 mA)
- Dimensions: 4.67" x 3.68" x 1.18" (119mm x 94mm x 30mm)
- Weight: 370g
- DC Input: Negative ground, 9V-18V DC power supply with a 2.1mm barrel plug and negative center
- Battery operation not possible
- Internal gain trimpot for adjusting the overall gain of the drive channel
- Post/Pre switch controls the order of both channels when used simultaneously
- Clip 3-position switch controls the type of clipping diodes in the drive channel
- JFET-equipped selectable boost with a dedicated 3-position tone switch
- Boost section can be used independently or configured to run before or after the drive channel
- Internal trimpots for bias adjustment and overall gain of the drive channel

The Zeta DLX offers a comprehensive array of control options, allowing for fine-tuning of bass and mid-range frequencies. It is designed to provide a wide range of overdrive and boost tones, making it suitable for various musical styles and use-cases.
