Soul Driven

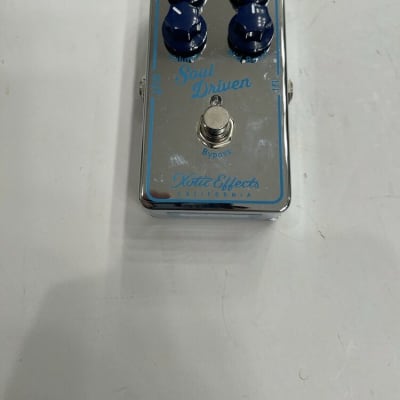

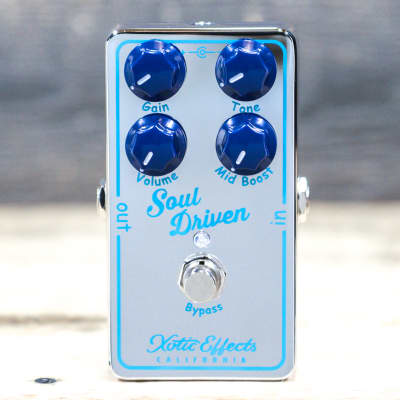

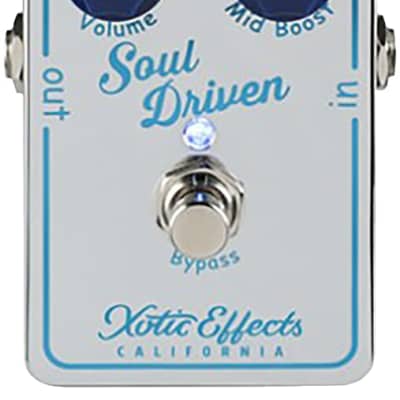

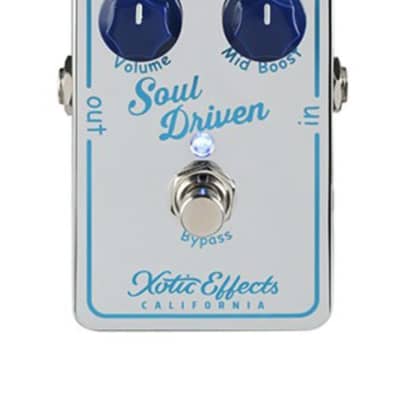

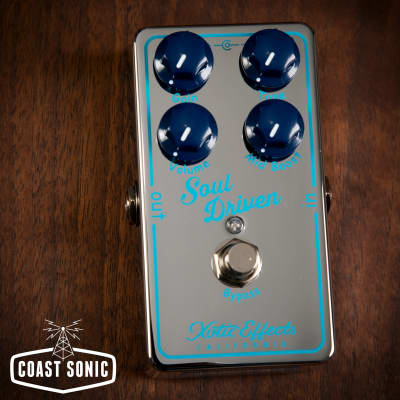

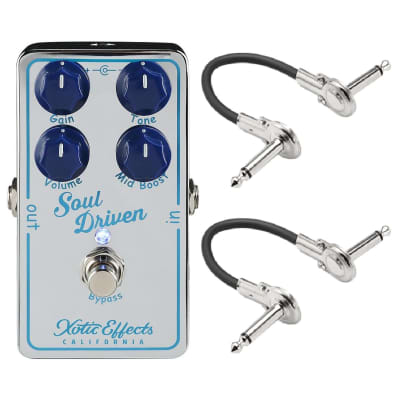

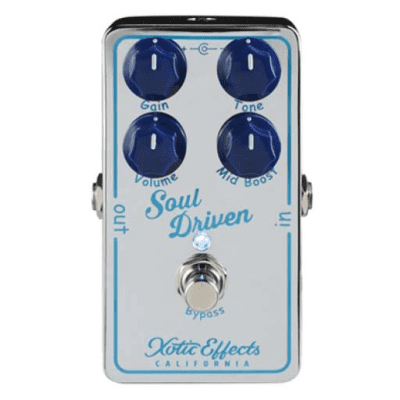

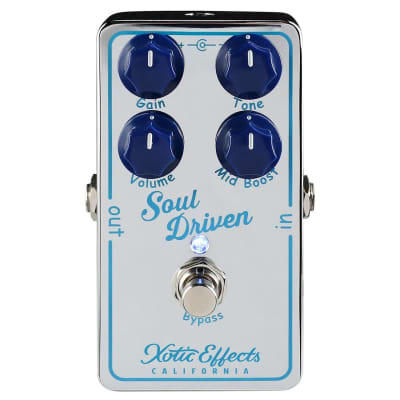

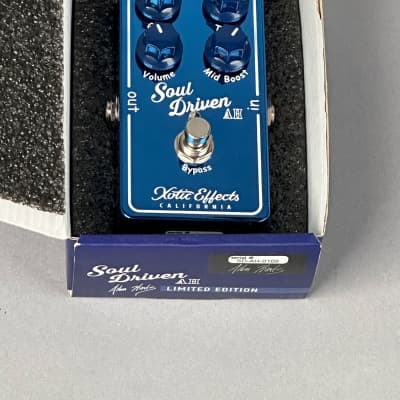

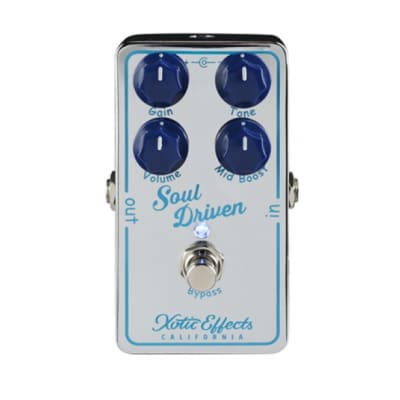

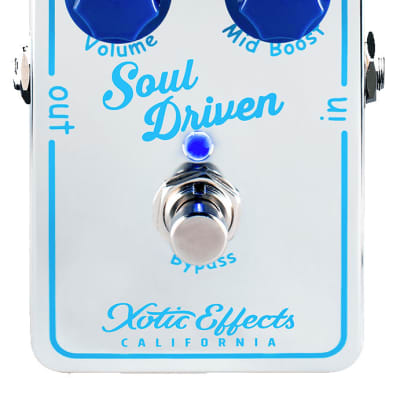

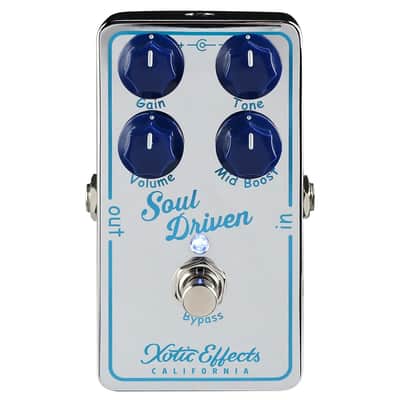

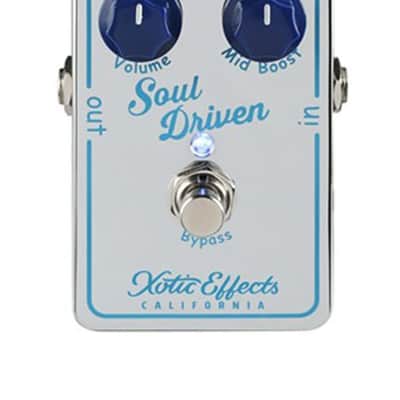

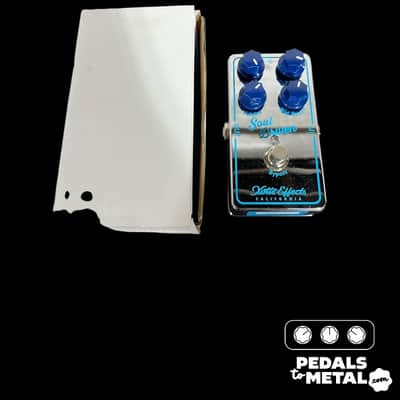

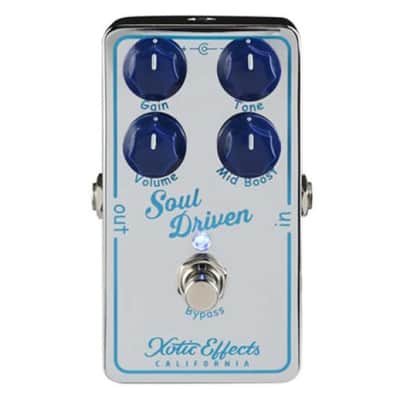

The Soul Driven by Xotic Effects is a versatile overdrive pedal designed to enhance the natural harmonics of a guitar while maintaining transparency. It offers creamy boost and overdriven tones with flexible tone shaping options. The pedal features a "Mid boost" knob for rich dynamic mid-range frequencies and a unique "Tone" knob for customizable tonal characteristics, ranging from tight bottom end to bold highs.

Technical Specifications:
- Pedal Type: Overdrive
- Inputs: 1 x 1/4"
- Outputs: 1 x 1/4"
- True Bypass: Yes
- Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (110mm x 60mm x 50mm)
- Weight: 0.6 lbs. (270g)
- Power Consumption: 9VDC/4mA or 18VDC/6mA
- Battery Type: 9VDC (006P) x 1
- AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
- Input Impedance: 500k ohm (min)
- Output Impedance: 10k ohm

Additional Features:
- Internal dipswitch settings for further tone shaping capabilities
- Compact size suitable for pedalboards
- Discrete FET design with road-worthy enclosure
- Can be used for driving clean channels or overdriving dirty channels

The Soul Driven pedal is known for its versatility and ability to provide a wide range of tone variations, making it a staple for pedalboard setups.
