Palladium Gain Stage

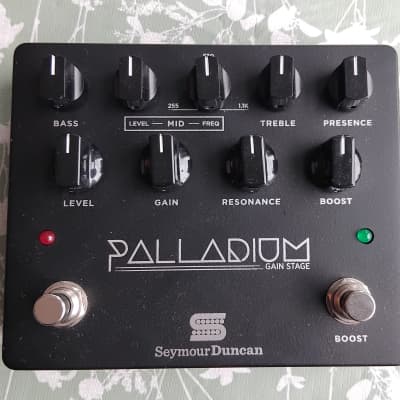

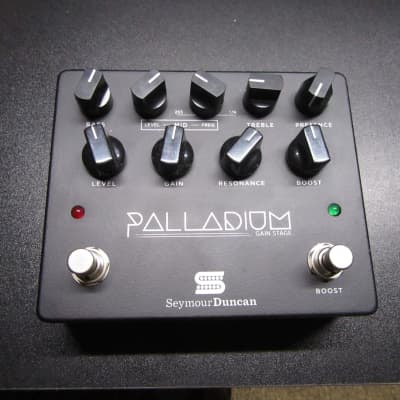

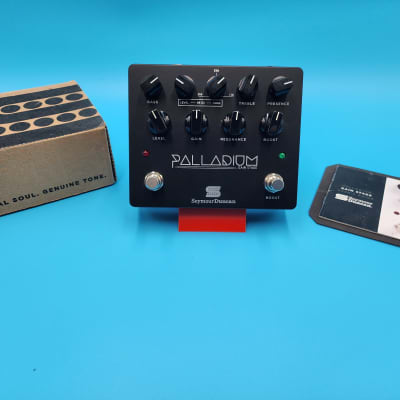

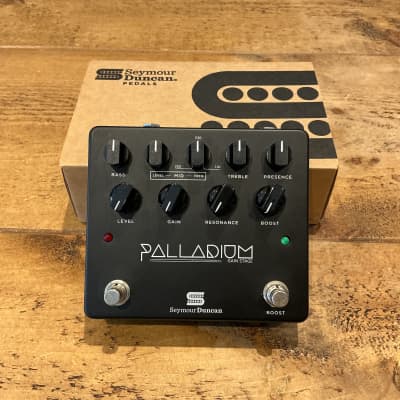

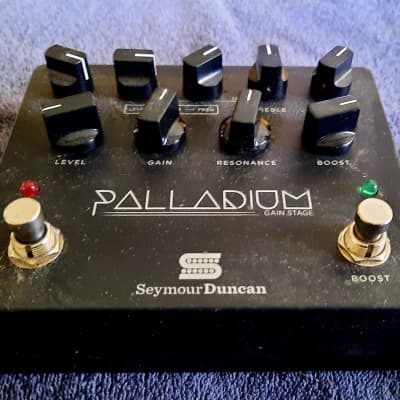

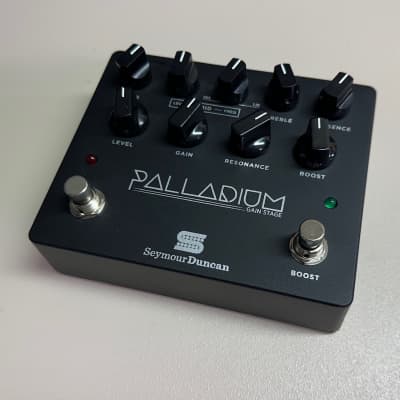

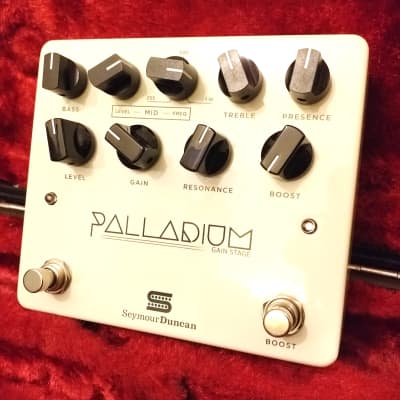

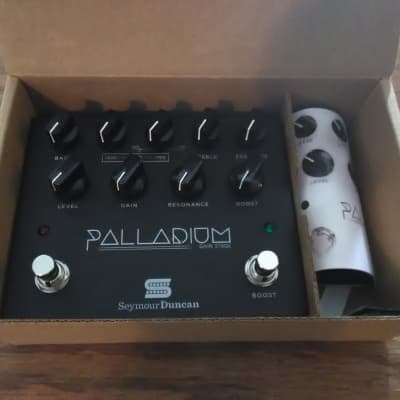

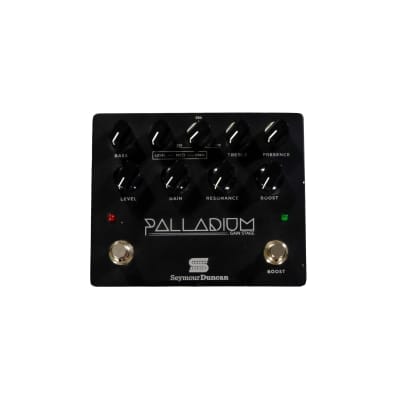

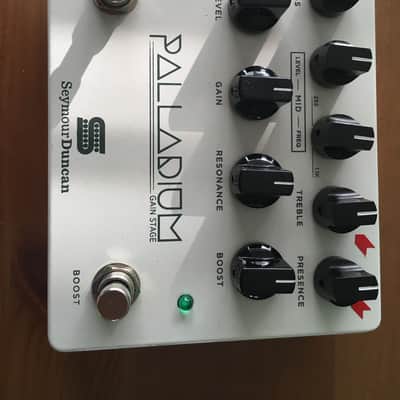

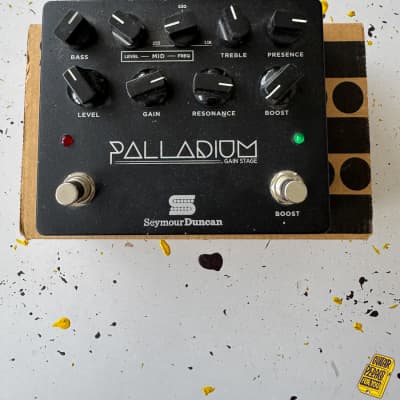

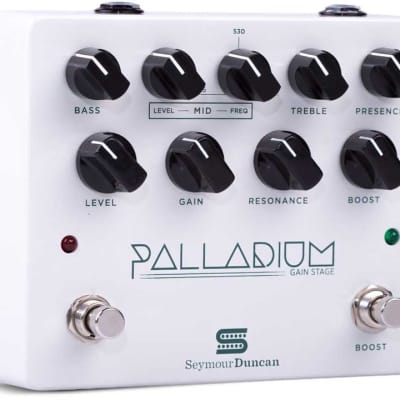

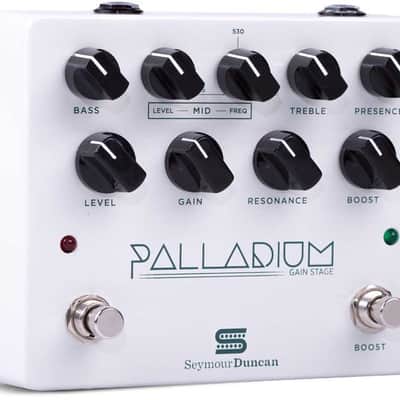

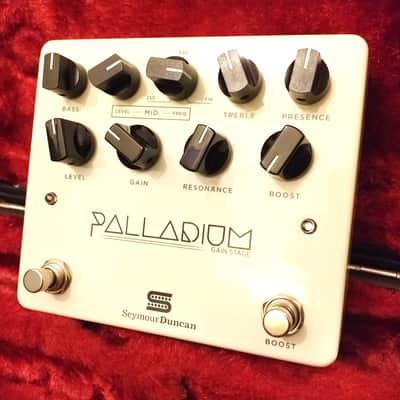

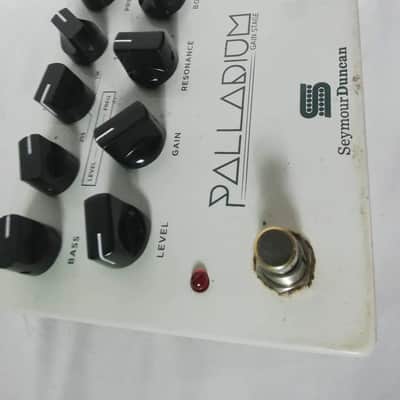

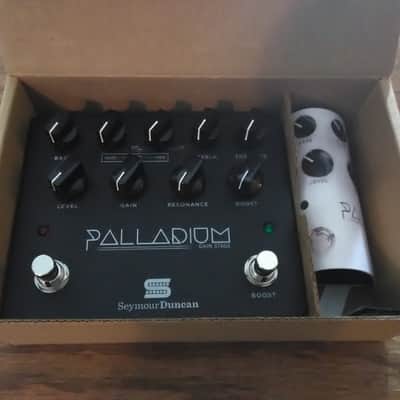

The Palladium Gain Stage by Seymour Duncan is a versatile effects pedal designed to capture the feel and responsiveness of a high-gain tube amp. It features three gain stages, including an overall saturation control, a resonance control for low-frequency gain shaping, and a boost control that adds overdrive to the beginning of the signal path. This allows for a wide range of tones, from classic rock at lower settings to modern metal at higher gain settings.

Technical Specifications:
- Input Impedance: 500k ohms
- Output Impedance: 2.8k ohms
- Gain Range: 42.5db to 71db
- Resonance Gain Range: 41.5db to 66db
- Boost Gain: 25db
- Noise Referred to Input: < -124 dbv, 400 Hz to 20 kHz
- Control Functionality: Bass, Mid Level, Mid Freq, Treble, Presence, Level, Gain, Resonance, Boost Knob, Boost Footswitch
- Tone Control Response: Bass (100Hz center, +/-15db boost/cut), Mid (255Hz to 1100Hz, +/-12db boost/cut), Treble (2.7kHz center, +/-13db boost/cut), Presence (5.2kHz center, +/-11db boost/cut)
- Power: External 9 volt to 18 volt regulated DC adapter (center pin negative) drives internal 24v supply
- Current Consumption: 180mA
- Dimensions: 5.6” x 4.63” x 2.2” tall
- Weight: 16 ounces

The Palladium Gain Stage is suitable for use with a power amp or a clean guitar amp to create a high-gain signature sound, or in front of a distorted amp to tighten up the attack for rhythms or increase sustain and saturation for solos. It offers comprehensive EQ control, making it adaptable to various amp setups.
