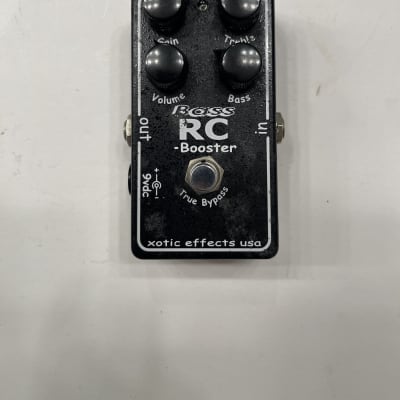

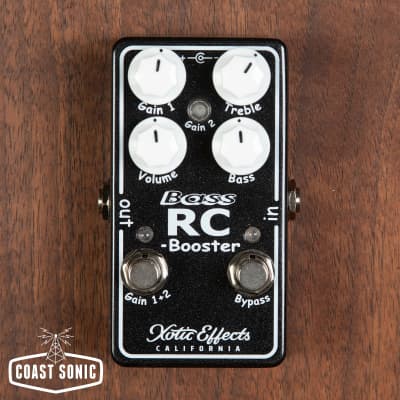

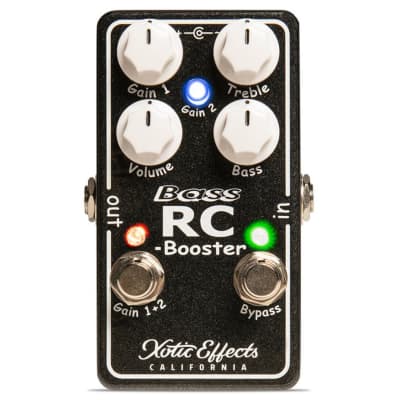

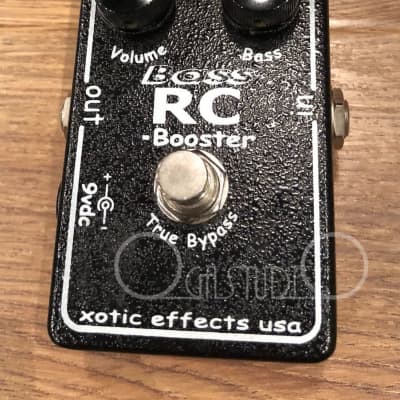

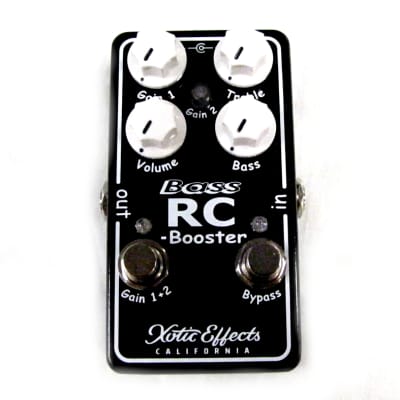

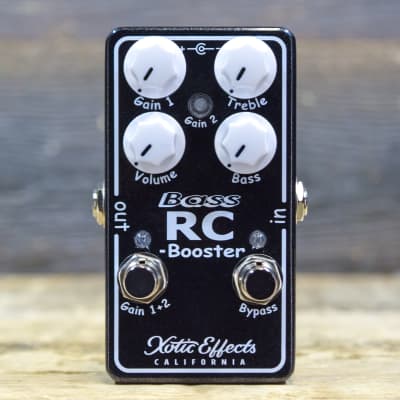

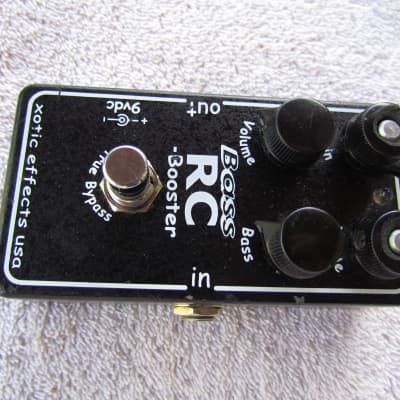

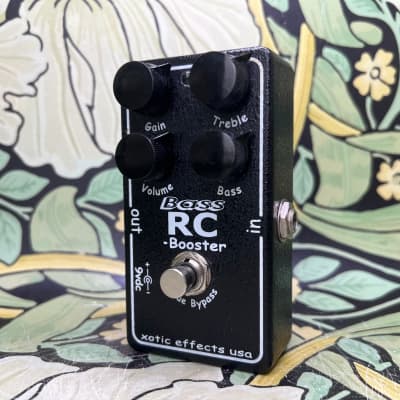

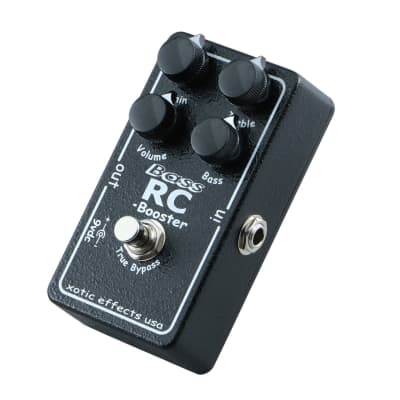

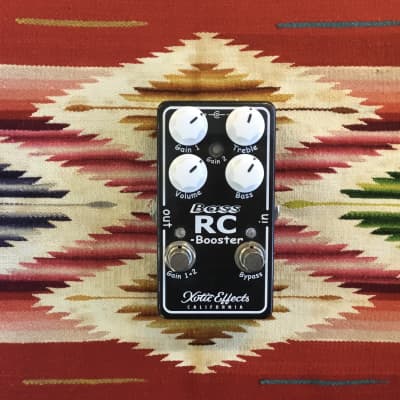

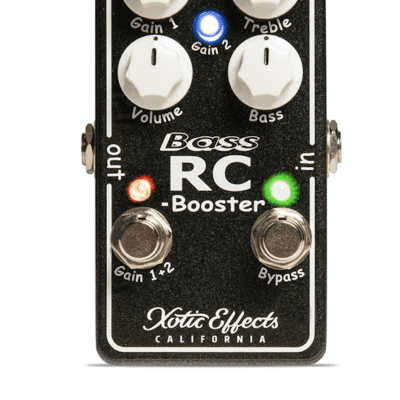

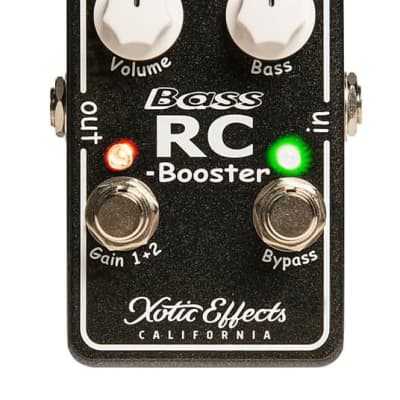

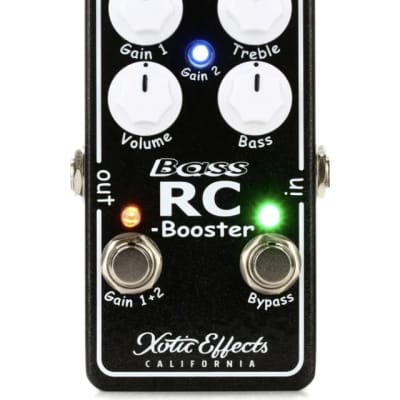

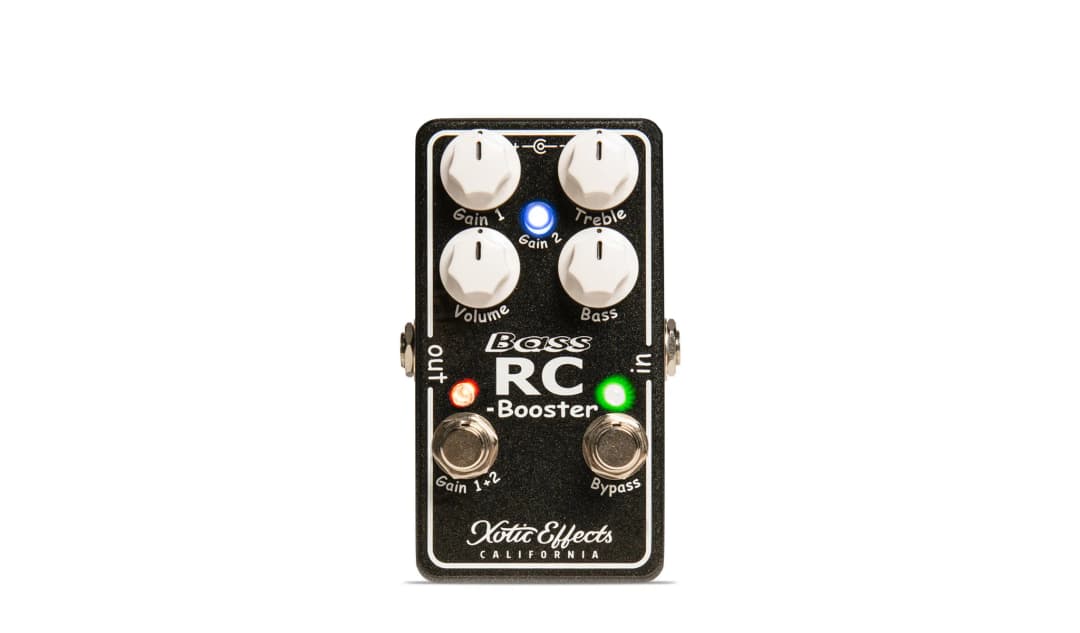

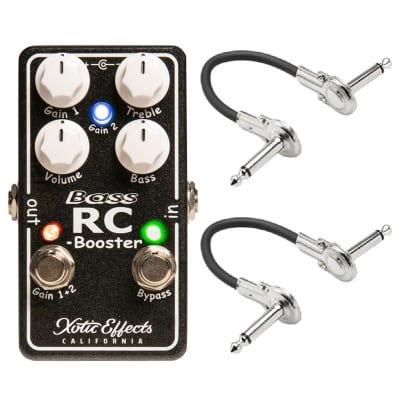

Bass RC Booster

The Bass RC Booster by Xotic Effects is a versatile pedal designed to enhance the tone of bass guitars without masking their natural sound. It offers a super transparent 20dB+ clean boost and a ±15dB two-band active EQ, ensuring that the original tone integrity is maintained. The pedal features true bypass switching to eliminate any signal interference when switched off.

Technical Specifications:
- Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (112mm x 60mm x 50mm)
- Weight: 0.6 lbs. (280g)
- Bypass: True Bypass Switching
- Power Consumption: 9VDC/6mA or 18V/6mA
- Battery Type: 9VDC (006P) x 1
- AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated only)
- Input Impedance: 1M ohm
- Output Impedance: 2k ohm

The Bass RC Booster can be run at 9V-18V for more headroom, and it is equipped with simple treble and bass controls for easy and accurate tone adjustments. Additionally, it can be used with an AC adapter or a 9V battery.

The Xotic "Voltage Doubler" is also available as an accessory, which is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA), providing more headroom and dynamic range for the pedal.
