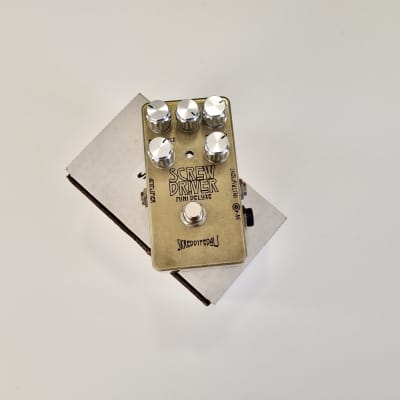

Screw Driver Mini Deluxe

The Skreddy Pedals Screw Driver Mini Deluxe is a versatile pedal that combines clean boost, overdrive, and distortion functionalities. It features a mosfet treble-boost input stage followed by a highly modified, tightly-controlled, hybrid fuzz circuit. The pedal offers maximum versatility, lush and controllable vintage 'dirt' voicing, noiseless performance, and an ideal tonal balance.

Key technical specifications include:
- Volume: Sets the output volume, allowing for adjustment to match the bypass signal or boost the signal for a fatter tone.
- Gain Control: Provides a range from slightly gritty clean through touch- sensitive overdrive to aggressive distortion.
- Sharpness Control: Adjusts the amount of bass going into the distortion section, offering options from thin, twangy treble-boost to thick, fuzzy breakup.
- Brilliance Control: Allows adjustment of brightness to suit the amp.
- Pregain Control: Sets the gain of the mosfet input transistor to suit the guitar, offering a range from hot, distorted tones to cooler, clearer responses with more headroom.

Power:
- The pedal operates on a 9v battery (not included) or external power through an AC adapter.
- Power consumption: 1.5mA @ 9v.
- The pedal accepts the industry-standard 9v DC plug (5.5mm barrel x 2.1mm center coax), with the center being negative and the barrel being positive.

The pedal's dimensions are approximately 110mm x 60mm x 30mm, and it features an aluminum housing with a true bypass switch.

For service or repair inquiries, users can contact Skreddy Pedals at marc@skreddypedals.com.
