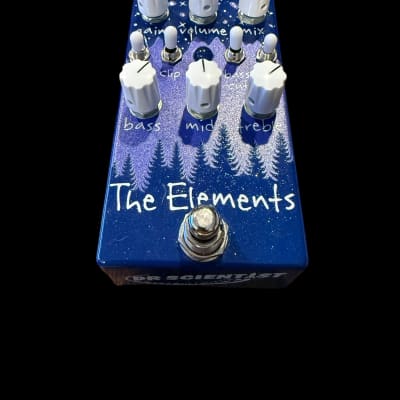

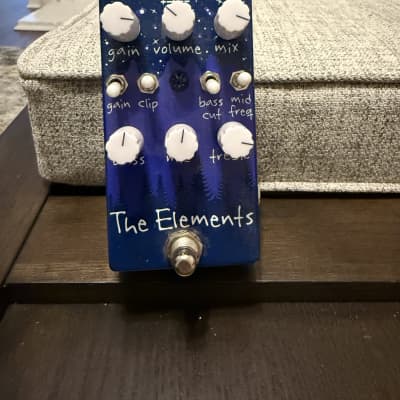

The Elements

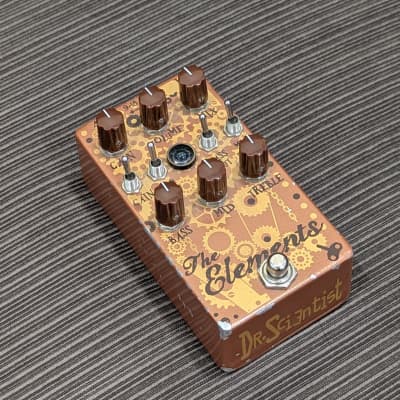

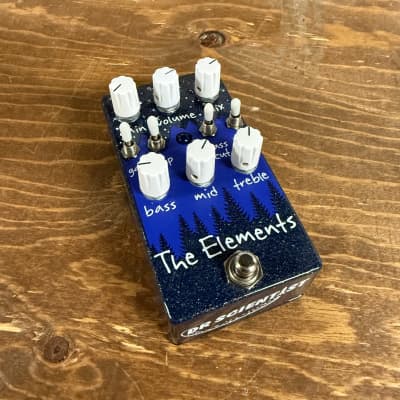

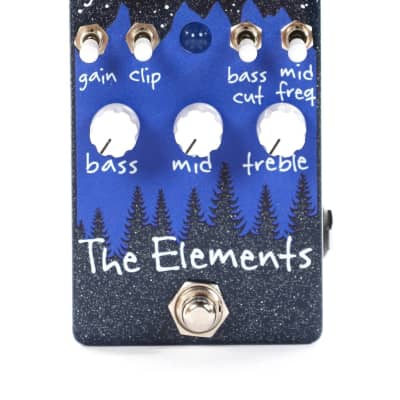

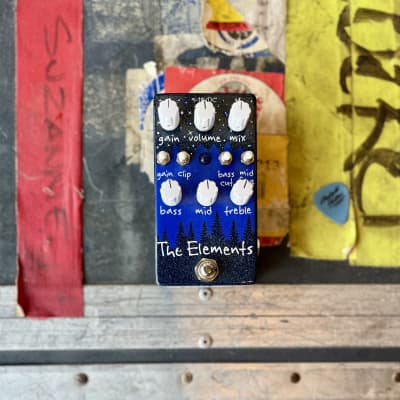

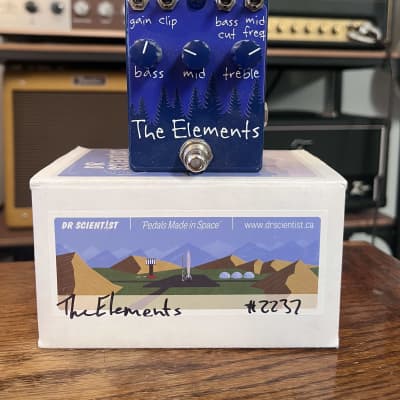

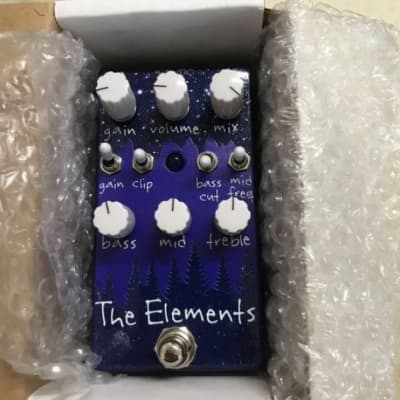

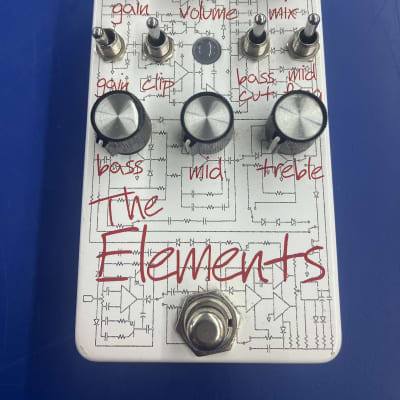

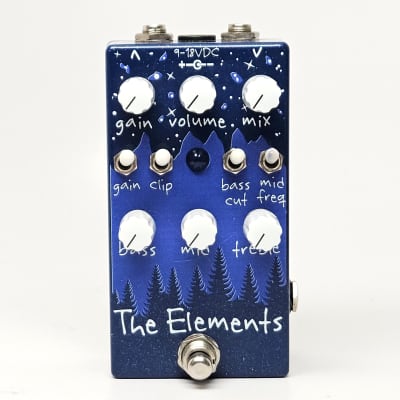

The Elements by Dr. Scientist is a dual-channel overdrive/distortion pedal with a wide gain range and a full 3-band equalizer. It offers low and high gain distortion channels selectable via a toggle switch, active 3-band EQ, and symmetrical or asymmetrical clipping diode options. The pedal features high- quality analog signal path, premium parts and components throughout, and true bypass with soft touch relay switching. It also provides full control over wet/dry mix and expression pedal control over the mix. The pedal has top- mounted audio and power jacks and is designed and handmade in B.C., Canada.

Technical Specifications:
- Operation: Mono input, mono output
- Power Requirements: 9VDC @ 50mA, 18VDC @ 100mA
- Input/Output Impedance: 500kΩ/1kΩ
- Knobs: Gain, Volume, Mix, Gain Toggle, Clip Toggle, Bass Cut, Mid Freq, Bass, Mid, Treble, Bypass
- Additional Specs: Treble control: +/-15dB 2nd Order peaking filter centred at 3kHz, Mid control: +/-15dB 2nd Order peaking filter centred at choice of 400Hz, 800Hz, 1200Hz, Bass control: +/-15dB 2nd Order peaking filter centred at 100Hz, Symmetrical clipping via LEDs, Asymmetrical via Germanium diode, or no clipping diodes, Exp. input: TRS cable, 10kΩ to 100kΩ resistance
- Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)

The Elements pedal is versatile and suitable for use with guitars, basses, synths, and many other instruments.
