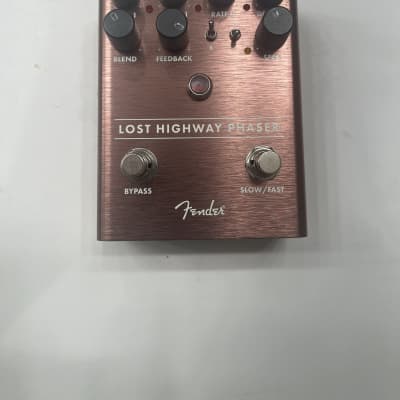

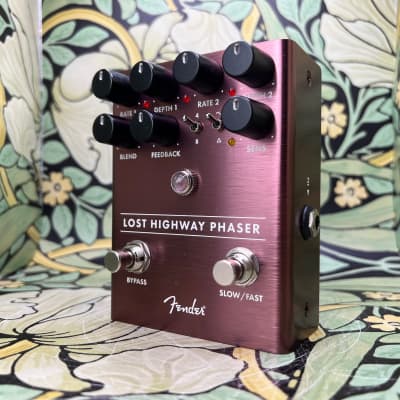

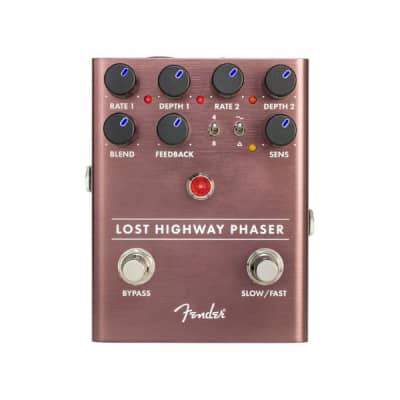

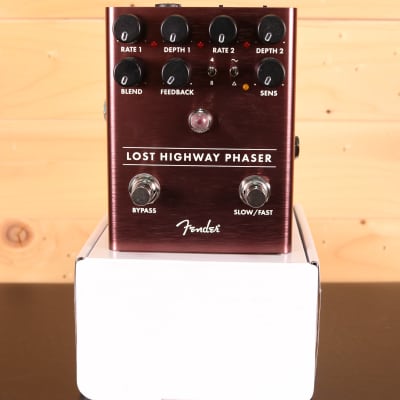

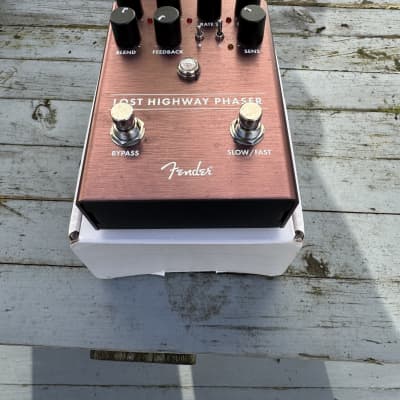

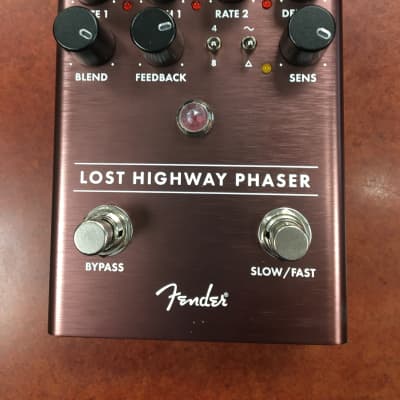

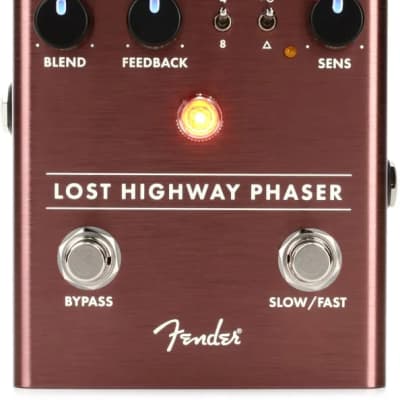

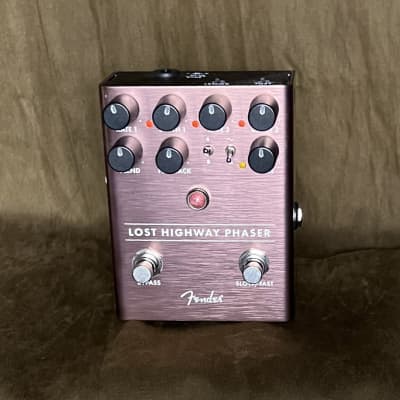

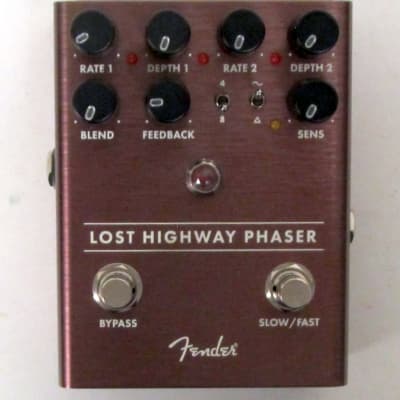

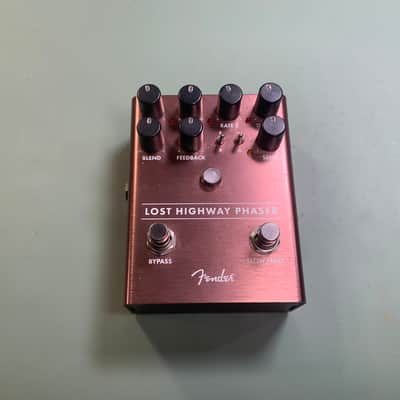

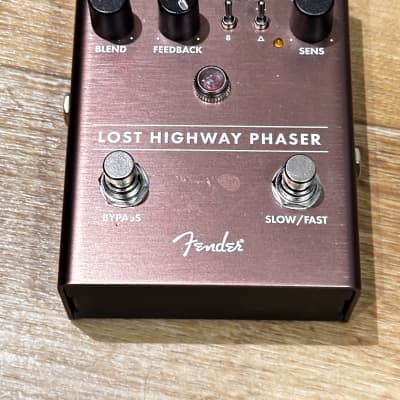

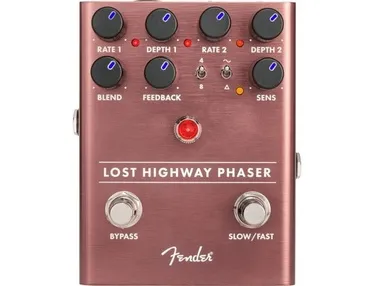

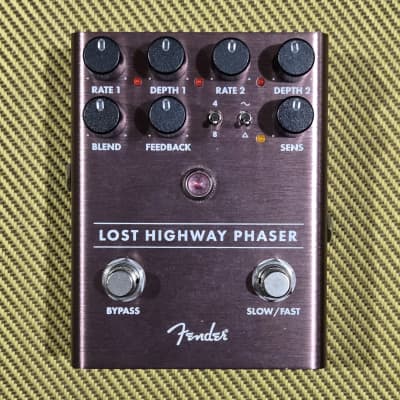

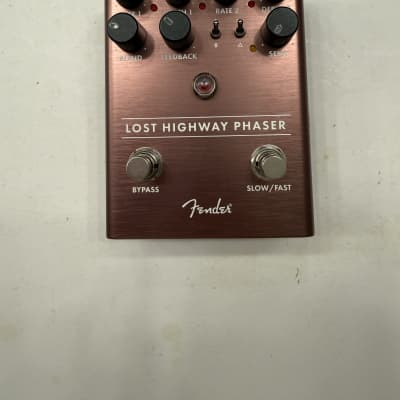

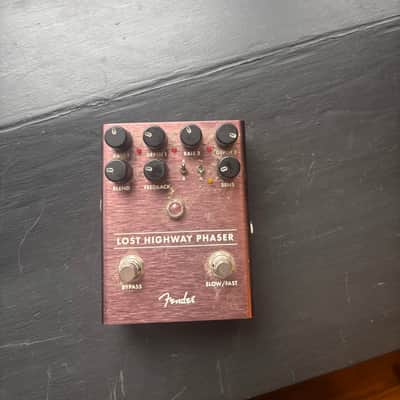

Lost Highway Phaser Pedal

The Fender Lost Highway Phaser Pedal is an analog 4- and 8-stage phaser pedal with slow/fast foot-switchable speeds, each with independent rate and depth controls. It features blend and feedback controls, as well as sine and triangle waveforms. The pedal also includes a wave toggle switch to select between sine and triangle waveforms, and a phase stage switch to toggle between 4 and 8 stage phasing. The sensitivity control allows modulation rate changes based on playing dynamics, and the pedal has a standard center- negative 9VDC jack for power supply. The dimensions of the pedal are 3.75” x 4.9” x 2.5” (95.25mm x 124.5mm x 63.5mm), and it weighs 1.2lbs (.54kg). The input impedance is 500k/uni03A9, and the output load impedance is greater than 10k/uni03A9. The power supply requirement is 9VDC regulated adapter, with a power consumption of 80mA at 9VDC.
