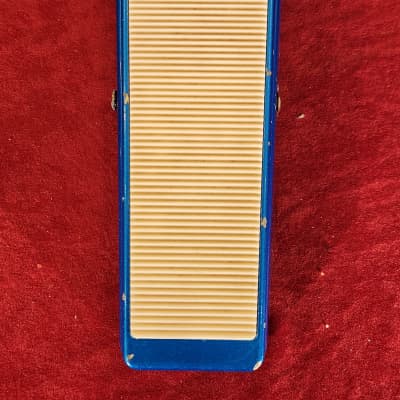

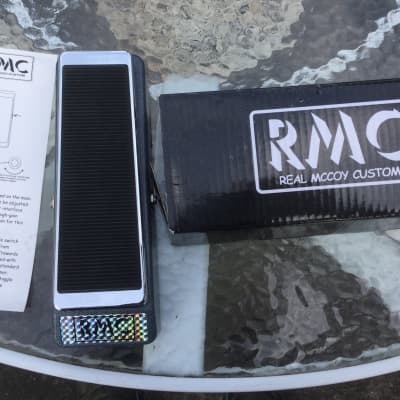

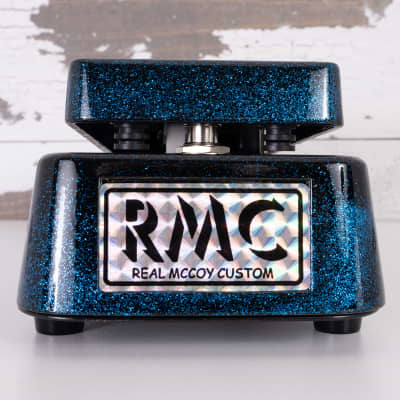

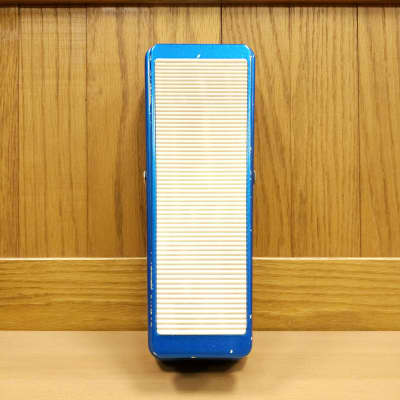

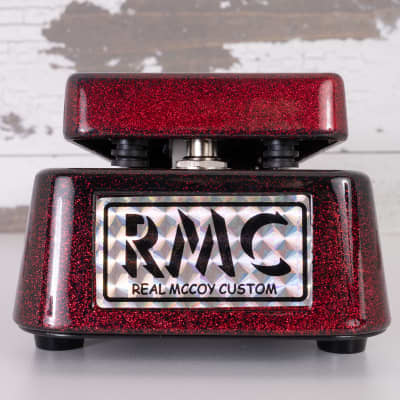

RMC4 Picture Wah

The RMC4 Picture Wah by Real McCoy Custom is a versatile wah pedal designed for professional musicians and enthusiasts. It features a robust construction and advanced circuitry to deliver a high-quality performance. The pedal is available in different build options, each offering specific characteristics:

1. VINTAGE - Carbon comp resistors (5%), not fuzz-friendly
2. VINTAGE PLUS - Carbon comp resistors, fuzz-friendly using Dave Weyer's mod
3. PRECISION PLUS - Metal film resistors (1%), fuzz-friendly using Weyer's mod
4. PRECISION FWR - Metal film resistors, fuzz-friendly using integrated FOXROX ELECTRONICS FWR circuit

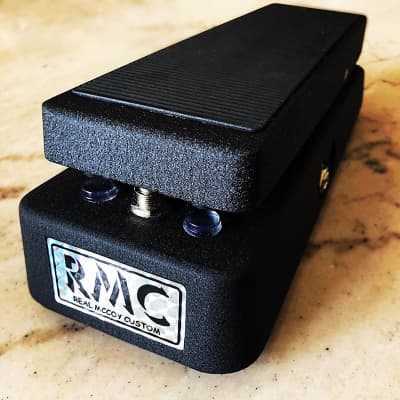

The standard build, found in a black case Picture Wah, is the fuzz-friendly PRECISION FWR. The pedal is equipped with a low-noise inductor, RFI filtering, and EMI filtering. It has a current draw of less than 10 mA and can be powered using an AC adapter with specific requirements: 5.5/2.1mm coax plug with a negative center post, 9VDC AC regulated Class II, and 20mA to 200mA max current output.

The RMC4 Picture Wah also features a true-bypass on/off switch, double-clad circuit board, rugged RMC ROC-POT, and an under-the-rocker toggle switch to change the sweep contour and EQ. Additionally, it offers easily adjustable rocker tension and is covered by a limited one-year warranty.

The pedal is designed and built by Geoffrey Teese, known for his expertise in creating high-quality wah pedals. The RMC4 Picture Wah is suitable for various musical styles and is a popular choice among professional guitarists.
