Filter Twin

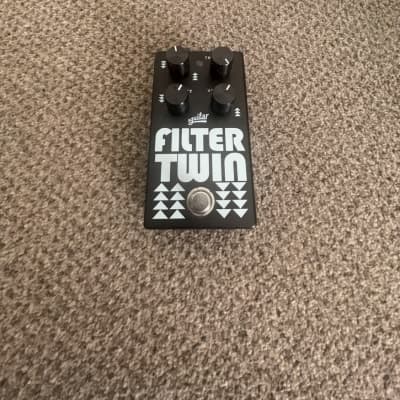

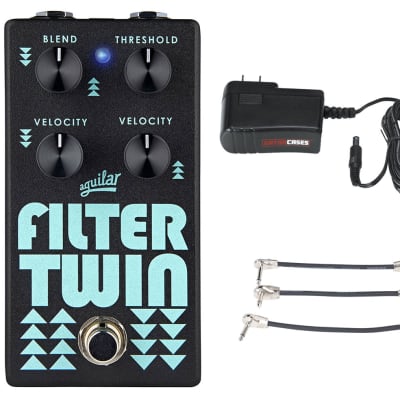

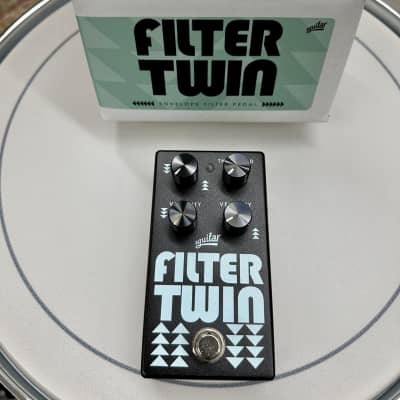

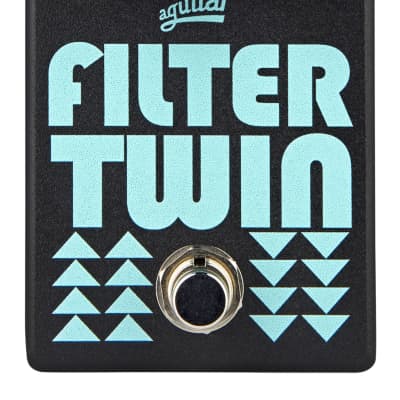

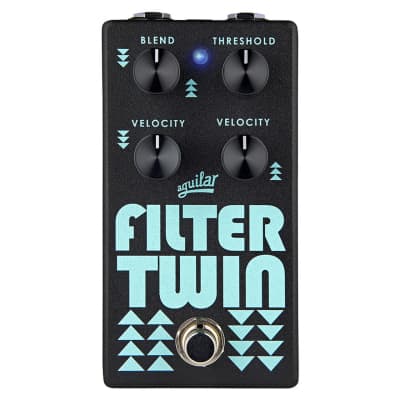

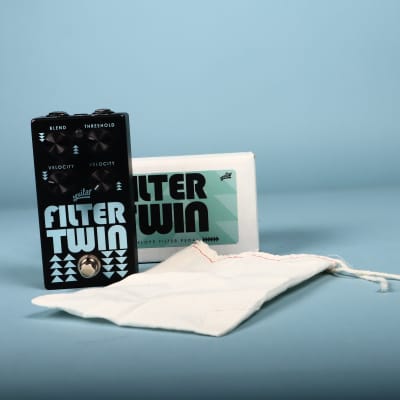

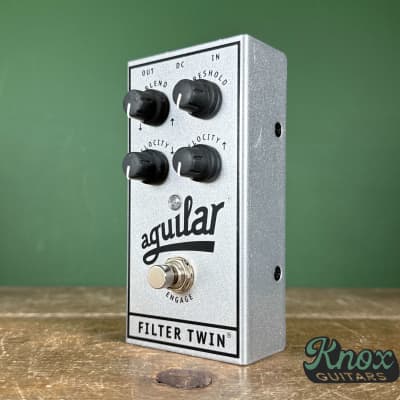

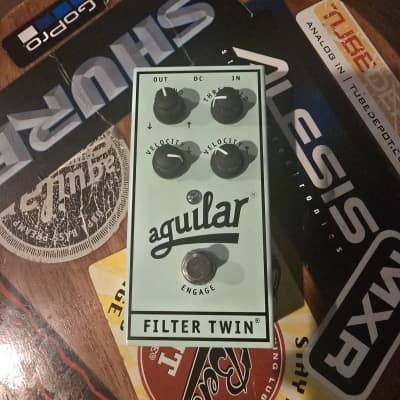

The Aguilar Filter Twin is a dual envelope filter pedal that utilizes two identical filters sweeping in opposite directions to produce classic 70's-inspired funk sounds and original filter tones. The pedal features separate velocity controls for the 'up' and 'down' filters, allowing for precise adjustment of the filter speed. The blend control enables users to adjust the mix between the filters, while the threshold control determines the unit's sensitivity to different playing styles. The pedal also includes a gig- saver bypass, ensuring the signal passes through even if the battery dies.

Technical Specifications:
- Inputs: One 1/4" jack
- Outputs: One 1/4" jack
- Power: Nine-volt battery or optional universal power supply
- Heavy-duty steel construction
- Current consumption: 10mA
- Input impedance: 1MΩ (Effect On)
- Output impedance: 1 KΩ
- Maximum Output: +6dBu (1.6VRMS)
- Noise Level: -94 dBu 'A' weighted
- External DC Power: 9-10 VDC center terminal negative
- Warranty: Three-year limited

The pedal's intuitive four-knob layout and unique filter effects make it a versatile tool for bass players seeking expressive and organic filter sounds.
