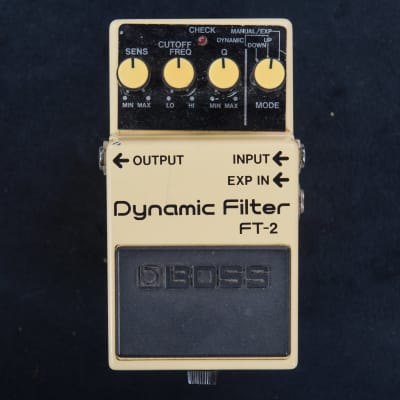

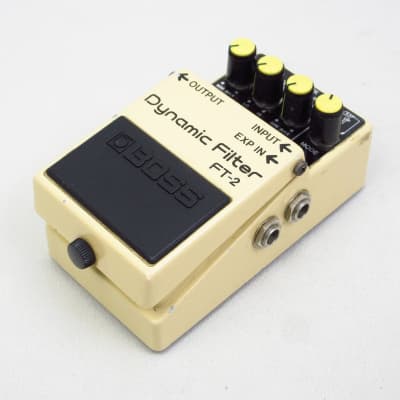

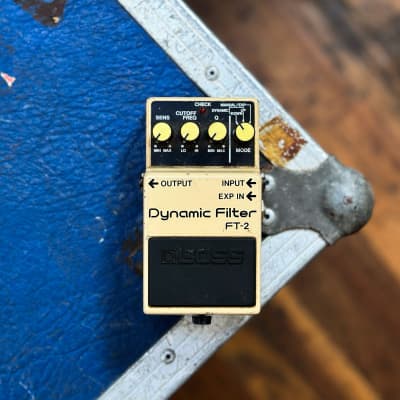

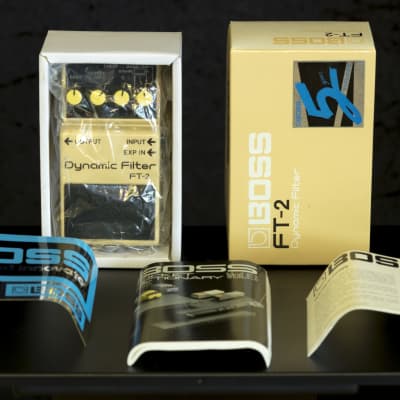

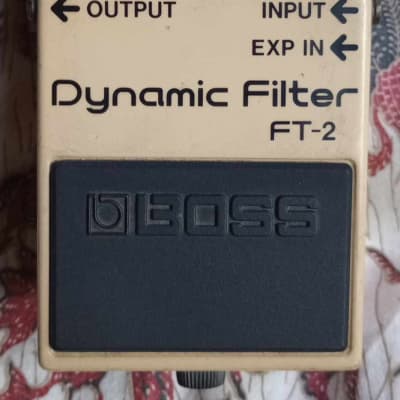

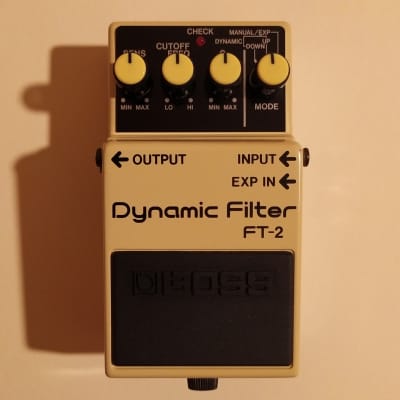

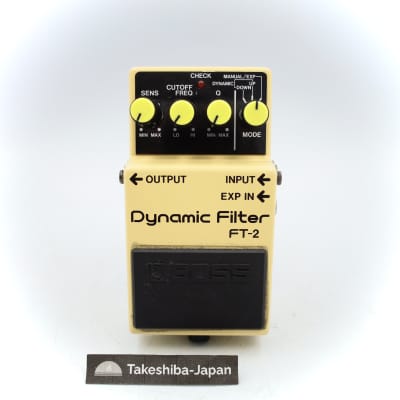

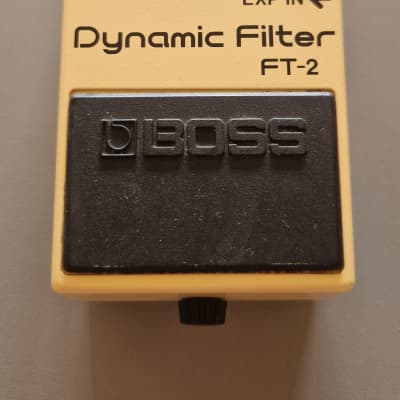

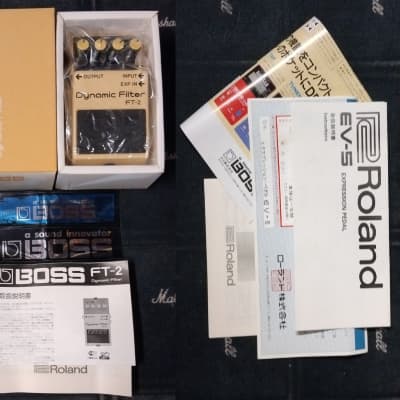

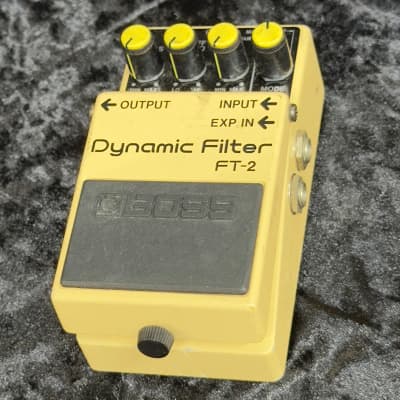

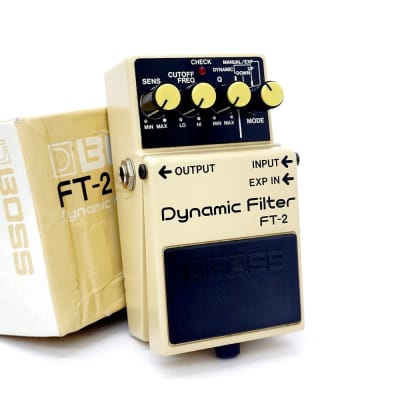

FT-2 Dynamic Filter

The BOSS FT-2 Dynamic Filter specifications are as follows:

- Power Source: 9V DC, Dry Cell Battery (x 1), AC Adaptor (BOSS ACA-120, 220 or 240: optional)
- Current Draw: 16mA (9V DC)

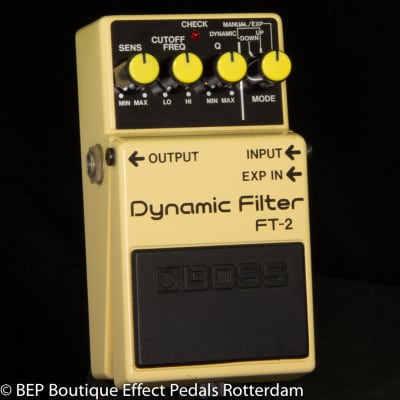

- Controls: SENS, CUTOFF, FREQUENCY, Q CONTROL
- Switches: Mode Selector, Effect On/Off
- Indicators: Effect On/Off (Battery Check)
- Jacks: INPUT, EXPRESSION IN, OUTPUT, AC Adaptor
- Residual Noise: -85dBm (IHF-A)
- Input Impedance: 1M Ohm
- Output Load Impedance: Over 10k Ohm
- Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches
- Weight: 400g / 14oz

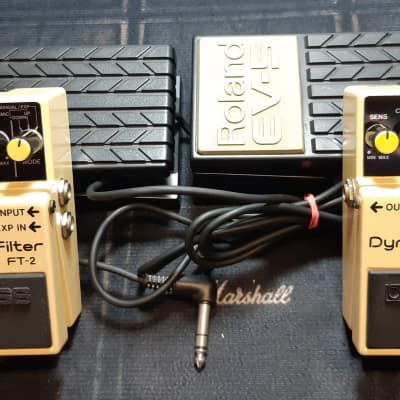

The FT-2 Dynamic Filter is an Auto Wah pedal that offers EQ-like capabilities for creating tonal effects with a specific frequency. It can be controlled by the touch sensitivity of the guitar string or an external expression pedal to control it like a wah. The Cut Off Frequency knob sets the center frequency where the effect occurs and can alter the effect completely. The pedal features Up/Down modes as well as a manual mode where it works as an equalizer, making it possible to create a cocked wah sound when used without an expression pedal.
