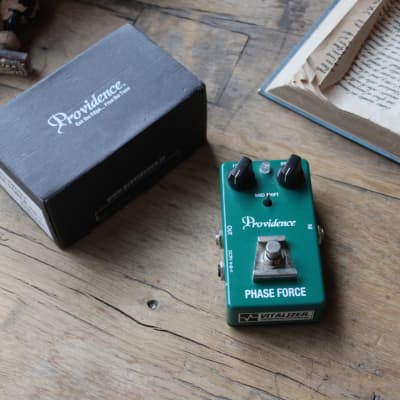

Phase Force PHF-1

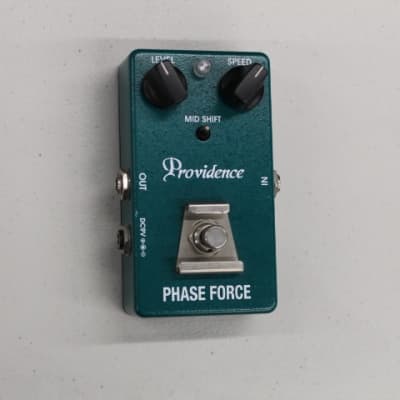

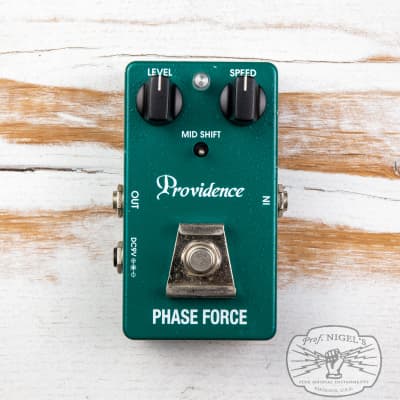

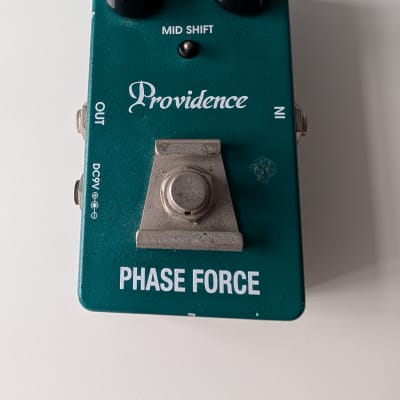

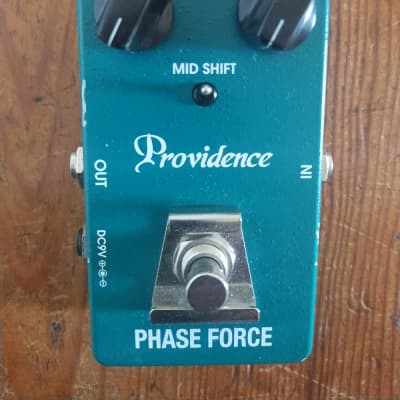

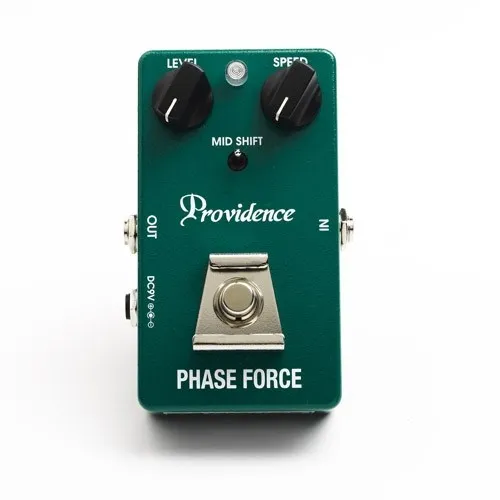

The Providence Phase Force PHF-1 is a phase shifter pedal designed to provide a wide range of phase shift sounds while retaining the natural characteristics of the instrument. The pedal features speed and output level controls, allowing users to achieve gentle undulations to wild variations in sound. The level control can be optimized to match the user's phrasing, and engaging the MID SHIFT switch alters the phase shift range, emphasizing mid-high frequencies.

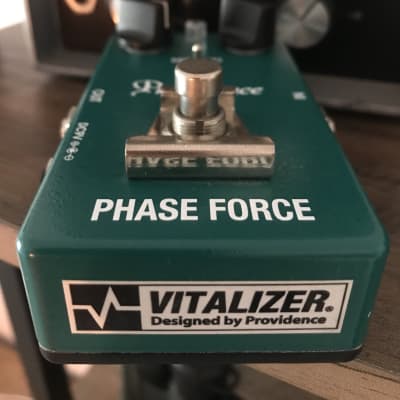

The pedal also includes a built-in VITALIZER® circuit, which enables a unique phase shift sound while allowing the natural characteristics of the instrument to come through. The VITALIZER® circuit remains active when the effect is turned off, delivering an ideal signal to processors connected after the Phase Force pedal.

Additionally, the PHF-1 is equipped with a multi-function LED that indicates the pedal's on/off status and provides visual battery power monitoring. When the battery voltage drops below 7 volts, the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but it is recommended to replace the battery for optimum performance.

Technical Specifications:
- Controls: LEVEL, SPEED, MID SHIFT
- Connectors: 1/4-inch phone jack x 2 (INPUT and OUTPUT), DC 9V input jack (AC adaptor jack)
- Power Supply: 9V battery or AC adaptor
- Power Consumption: DC 9V, 5 mA approx. (effect ON)
- Dimensions: 115(D)×72(W)×50(H)mm
- Weight: 250 g approx. (Not including battery)

The Providence Phase Force PHF-1 is designed for guitarists and musicians seeking versatile phase shifting capabilities with precise control over speed, output level, and frequency emphasis.
