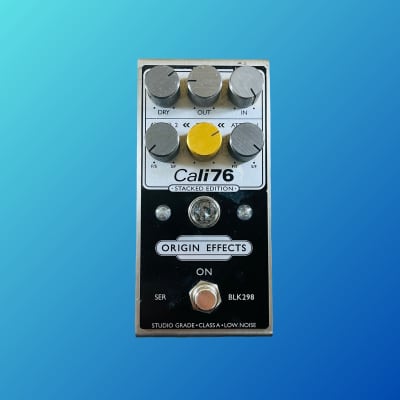

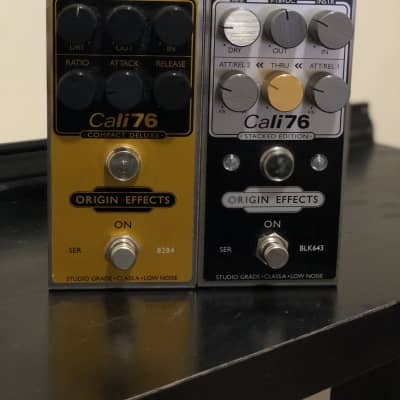

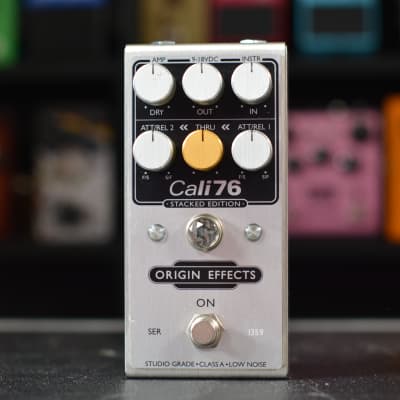

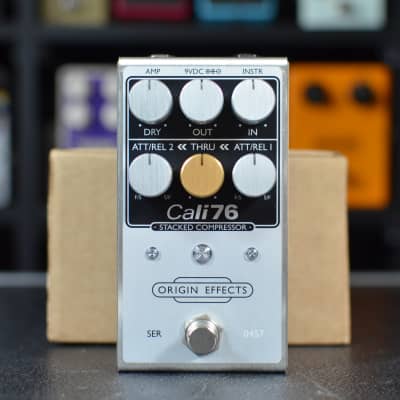

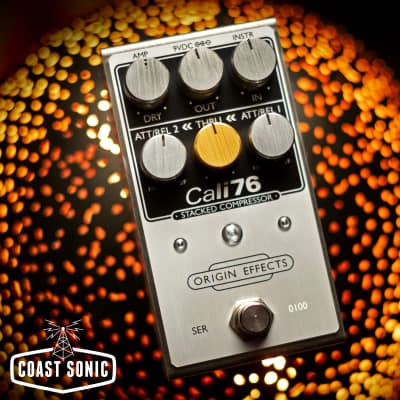

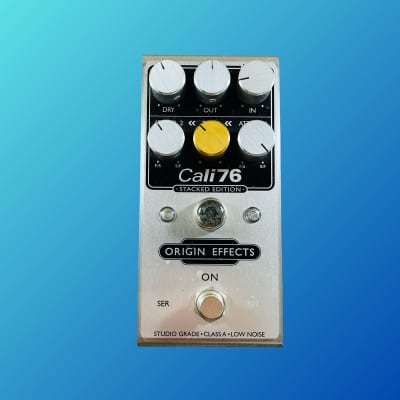

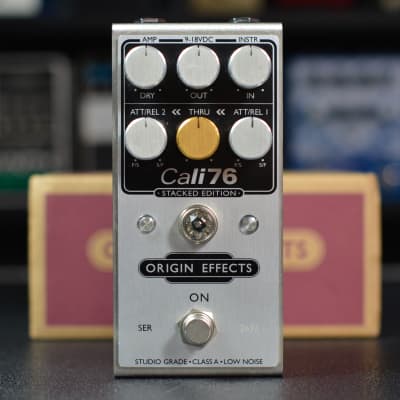

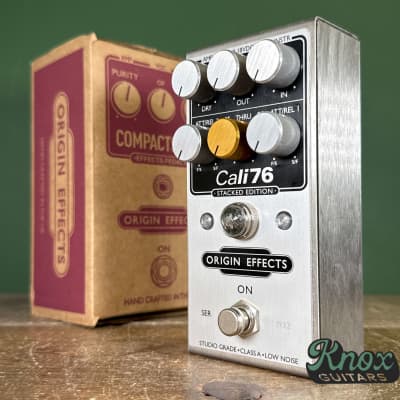

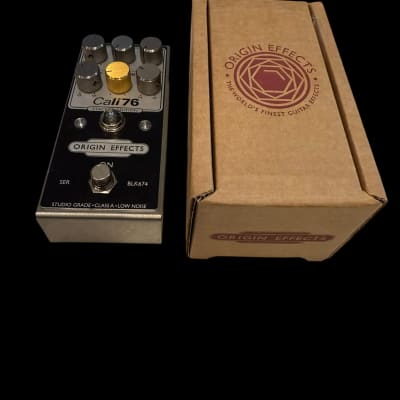

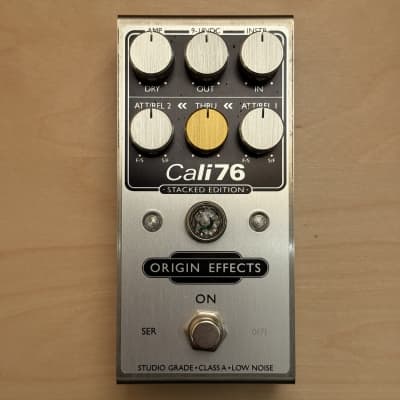

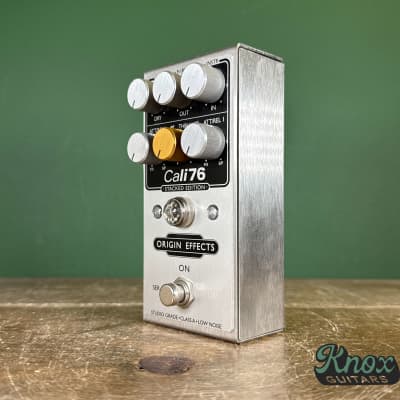

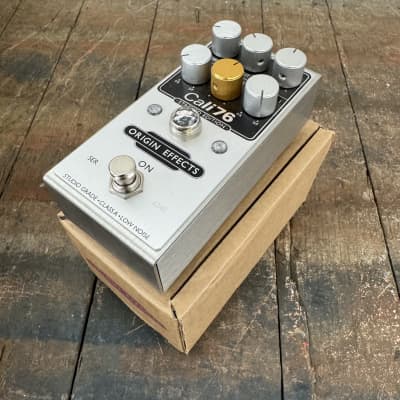

Cali76 Stacked Edition

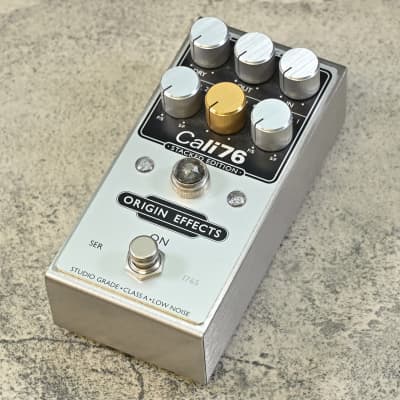

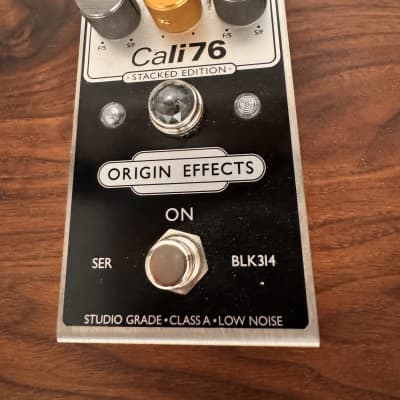

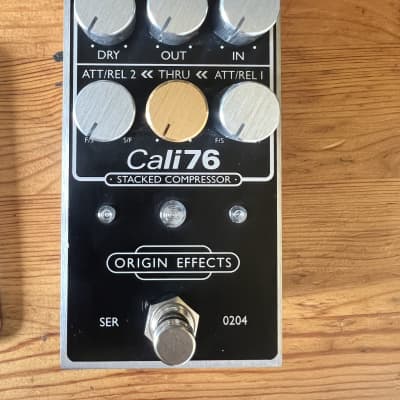

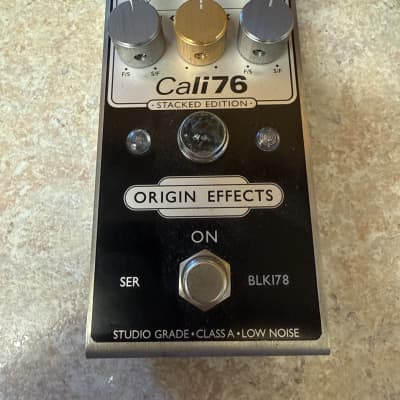

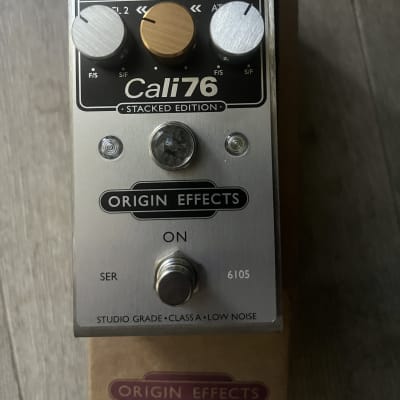

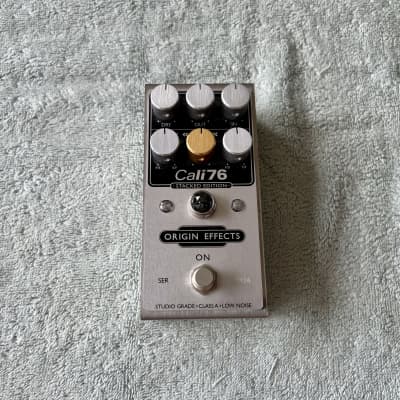

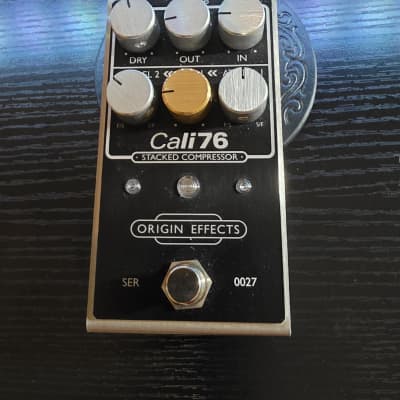

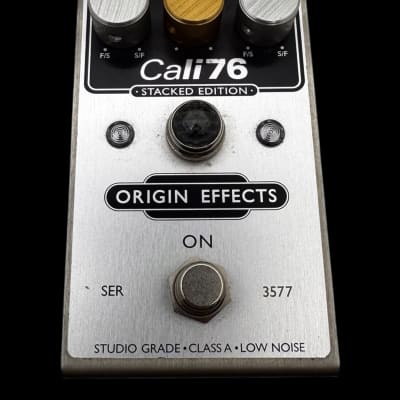

The Cali76 Stacked Edition by Origin Effects is a dual-stage compressor pedal featuring two independently adjustable, studio-grade FET compressors in a pedal format. It utilizes high-current, low-noise, discrete Class-A circuitry, providing a unique THRU control that sets the signal fed to the second compressor stage. The pedal offers independent Attack/Release controls for each compression stage, as well as a Dry level control for instant parallel compression. It also includes individual LED gain reduction indicators for each compressor and operates within a 9 to 18V range for increased headroom.

Physical Specifications:
- Weight: 620 g (1.37 lb)
- Dimensions: 143 x 66 x 65 mm (5.62 x 2.6 x 2.56 in.) including knobs and switches

Electrical Specifications:
- Input Impedance: 1 MΩ
- Output Impedance: 1 kΩ
- Current Draw: 100 mA
- Power Supply: 9-18V DC 2.1 mm centre-negative

The pedal is designed and built in England, featuring a tour-grade, all-metal construction with high-impedance buffered bypass and silent switching. It is housed in a hand-polished, brushed stainless steel enclosure and furnished with aluminum controls, Neutrik jack sockets, and a heavy-duty footswitch.

It is recommended to use a regulated power supply specifically designed for guitar pedal applications to ensure impeccable performance and avoid unwanted noise.
