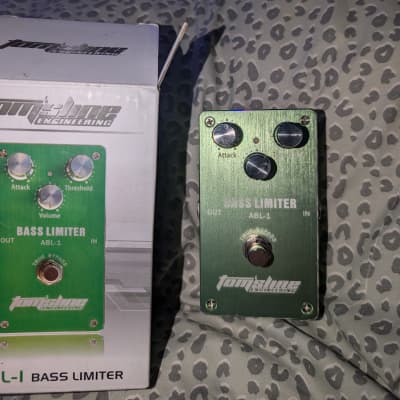

ABL-1 Bass Limiter

The ABL-1 Bass Limiter by Tomsline is a precision-engineered pedal designed specifically for electric bass. It features a wide range limiting ratio, low power consumption, and an ultra-low noise operation amplifier inside. The pedal is equipped with true bypass functionality, ensuring that the original sound is perfectly output without any distortion when the effect is turned off.

Technical Specifications:
- Input Impedance: 500 kohm
- Nominal Input Level: 100 mVrms
- Output Impedance: 150 ohm on max Volume
- Max Output Level: 600 mVrms
- Threshold levels: 18mVrms – 220mVrms
- Recommended Load Impedance: 10 kohm
- Equivalent Input Noise: -90 dBu or less
- Power Supply: DC 9V - battery or AC adapter
- Current Draw: 6.2 mA (DC 9V)

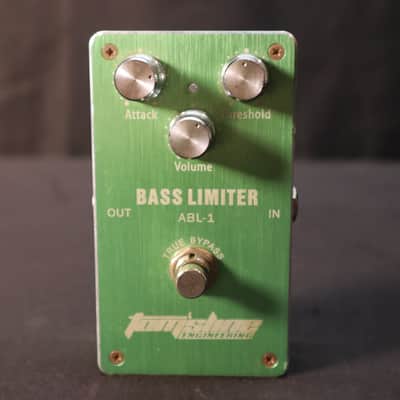

The pedal also features various controls, including a Threshold knob for controlling the working level of the limiter, an Attack knob for adjusting the Attack Time, and a Volume knob for adjusting the volume of the effect sounds. Additionally, it includes an AC/DC Adapter Jack, Output Jack, Pedal Switch, Indicator, and Input Jack.

The ABL-1 Bass Limiter is a versatile tool for bass players, offering precise control over dynamics and ensuring a clean, consistent bass sound in various musical settings.
