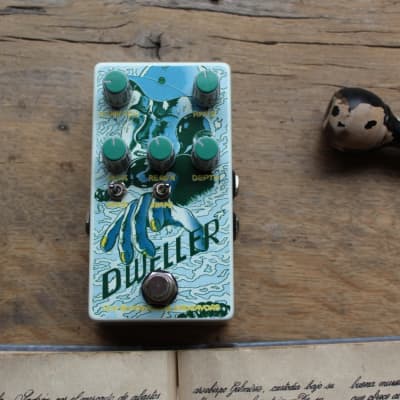

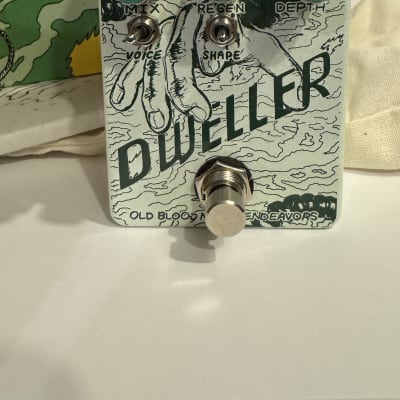

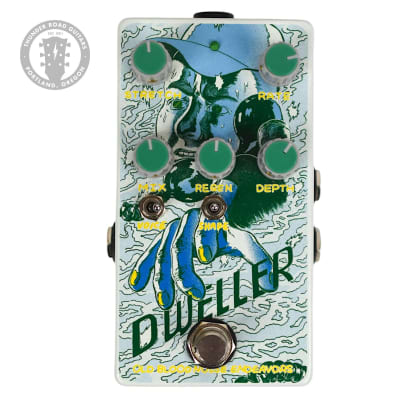

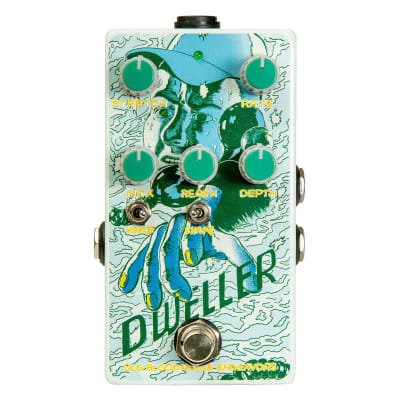

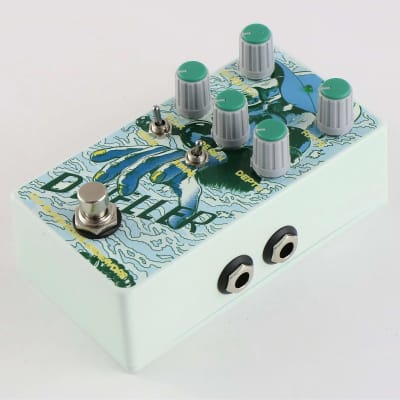

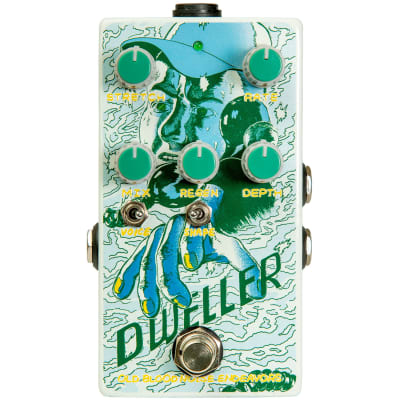

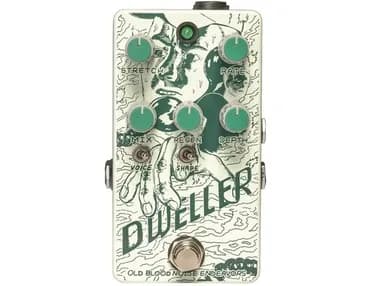

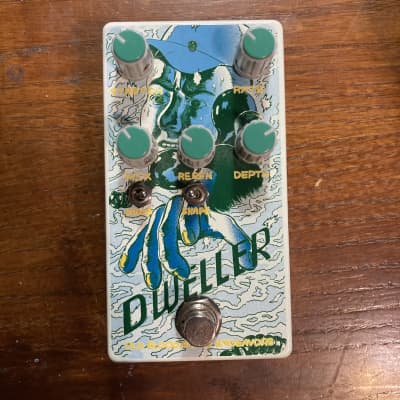

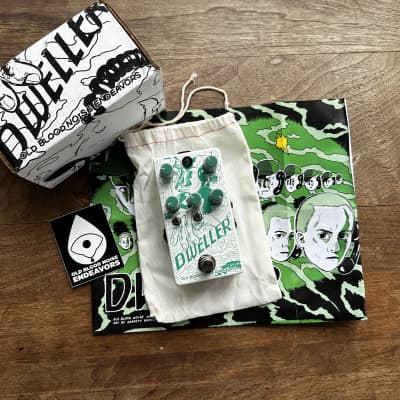

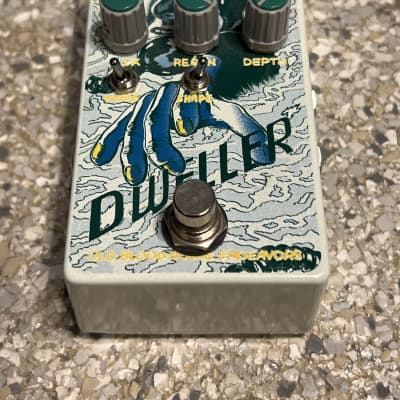

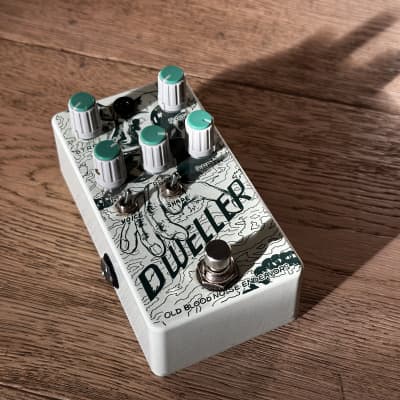

Dweller Phase Repeater

The Dweller Phase Repeater by Old Blood Noise Endeavors is a unique blend of phaser and delay effects, offering a wide range of sonic textures. Its features and technical specifications include:

- Voice toggle to select between four-stage or eight-stage phase repeating
- Shape toggle to select between three wave shapes (sine, triangle, and random sample and hold)
- Rate and Depth controls to set the rate and depth of the LFO
- Regen control to introduce feedback
- Stretch control to change the delay time within each phase repeating stage
- Mix control to set effect blend from 100% dry to 100% wet
- Expression jack for external control of the Stretch parameter
- Soft-touch bypass footswitch for true bypass and minimal switch noise
- Powered by a 9V DC center negative 2.1mm jack power supply capable of 110mA (not included)

The Dweller Phase Repeater is capable of producing familiar phase and vibe sounds, resonant random step filtering, warm delays, and unique ambient textures. It offers six modes and allows for control over Time or Morph via an external expression pedal. The pedal's output level can be adjusted via an internal trim-pot for boost, slight drop, or unity gain.

The dimensions of the Dweller Phase Repeater are approximately 12 x 6.6 x 5.8 cm, and it is designed and made in the USA.

For more detailed information, the Dweller manual is available on the manufacturer's website.
