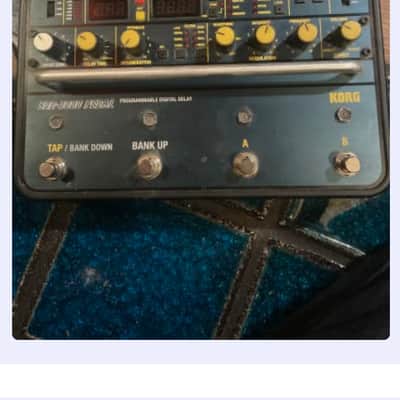

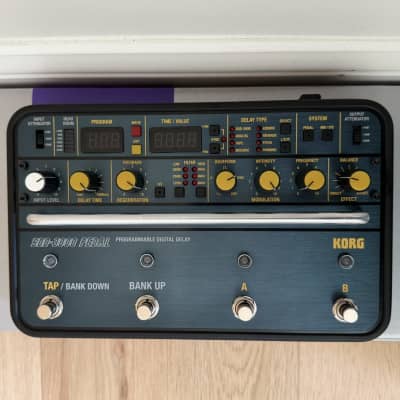

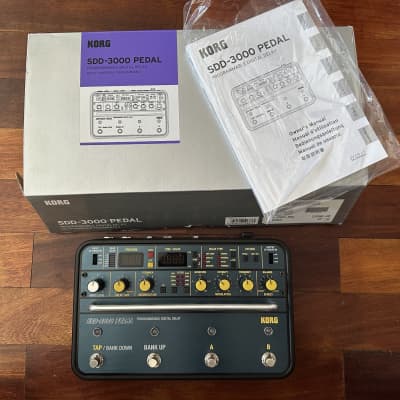

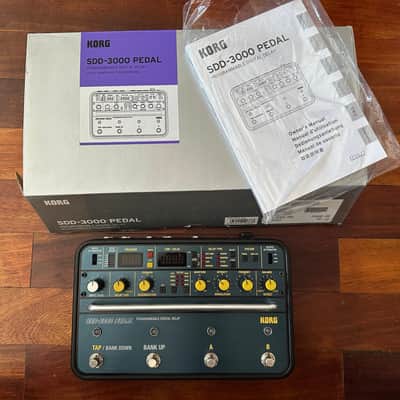

SDD-3000 Pedal

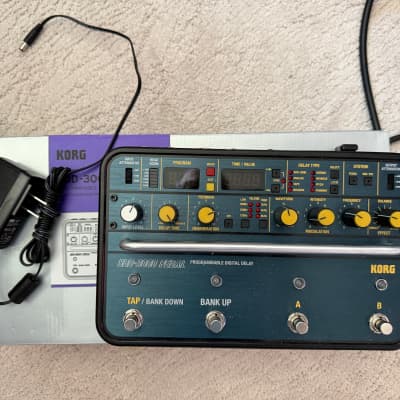

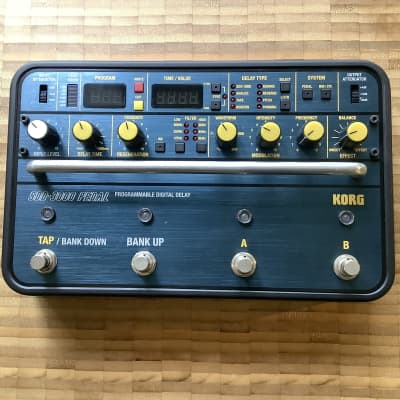

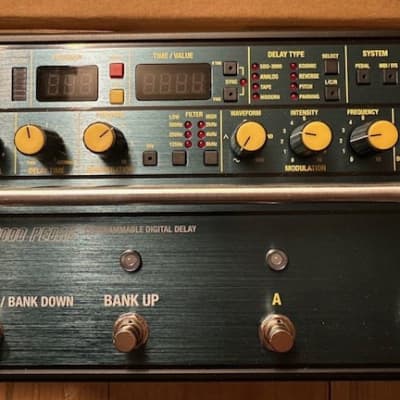

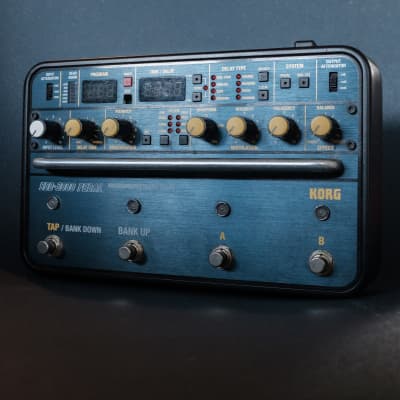

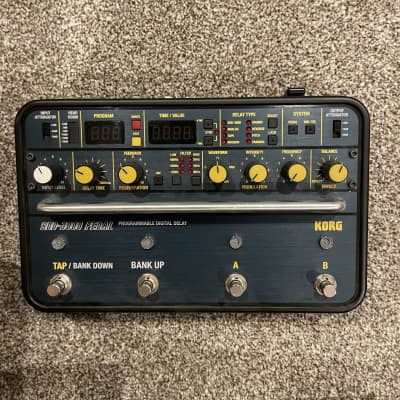

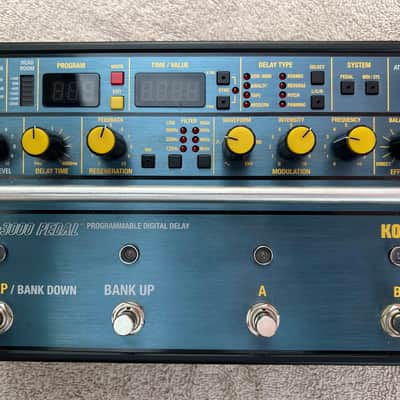

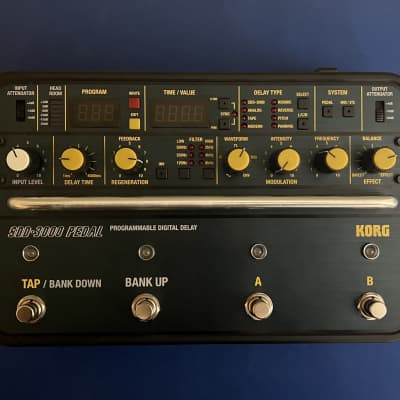

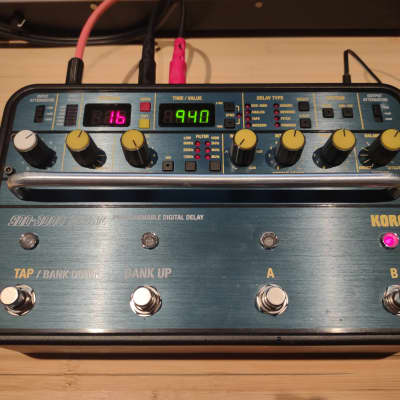

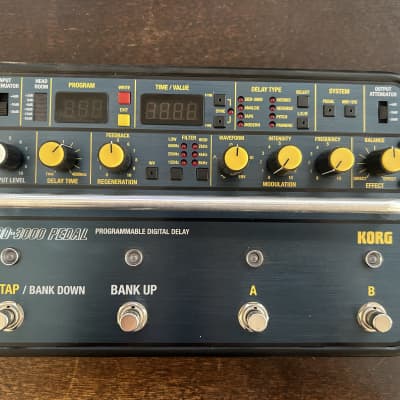

The Korg SDD-3000 Pedal is a programmable digital delay unit that encapsulates the functionality of the classic SDD-3000 digital delay rack-mounted unit into a convenient pedal form. It features a pre-amp with ample headroom, a filter circuit for modifying the feedback sound, and various modulation waveforms for creating diverse delay effects. The pedal offers eight distinct delay types, including SDD-3000, Analog, Tape, Modern, Kosmic, Reverse, Pitch, and Panning.

Key Technical Specifications:
- Input Level: -30dBm, -10dBm, +4dBm
- Max (Clip) Level: -13dBm, +7dBm, +21dBm
- Output Level: -20dBm, -10dBm, +7dBm
- Max (Clip) Level: -3dBm, +7dBm, +21dBm
- Frequency Response: 10Hz to 20kHz (+0.5dB, -1dB) for Direct, 10Hz to 17kHz (+0.5dB, -3dB) for Effect (when DELAY TYPE is set to SDD-3000)
- Dynamic Range: 110dB (Direct, A-Weighted), 94dB (Effect, A-Weighted)
- Filter: Low CUT (Turnover Freq: 125Hz, 250Hz, 500Hz; Roll off: -3dB/OCT), High CUT (Turnover Freq: 8KHz, 4KHz, 2KHz; Roll off: -6dB/OCT)
- Modulation: Frequency range 0.01Hz to 15Hz, Waveform (SINE, TRIANGLE, SQUARE, RANDOM, ENVELOPE), Intensity
- Delay Time: 1 millisecond to 4,000 milliseconds (1 millisecond step, with full bandwidth)
- Dimensions: 260 × 170 × 77 mm / 10.24" x 6.69" x 3.03"
- Weight: 1.5 kg / 3.31 lbs
- Power Supply: AC Adapter (DC 9V), Current Consumption: DC 9V 600mA

The pedal also offers MIDI compatibility, stereo input/output, and the ability to save 80 programs (40 banks x 2 channels). It supports seamless bypass and program changes, and features a reliable true bypass design. Additionally, an optional expression pedal can be used to control multiple effect parameters simultaneously.

The SDD-3000 Pedal is designed to provide a wide range of delay effects, modulation options, and user-friendly interface, making it suitable for guitarists and musicians seeking versatile and high-quality delay capabilities in a pedal format.
