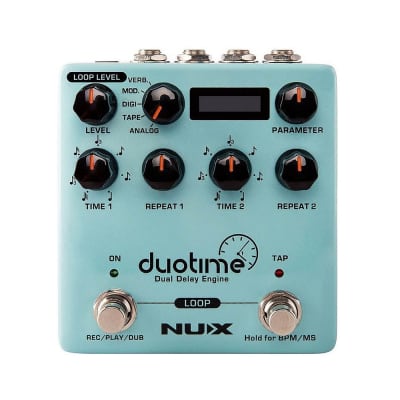

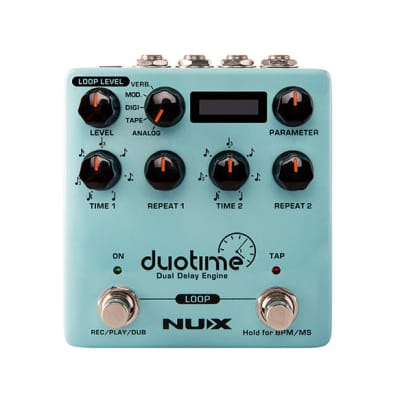

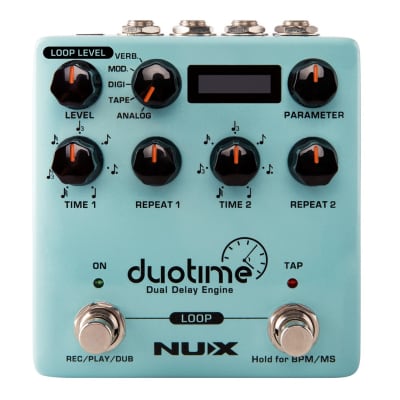

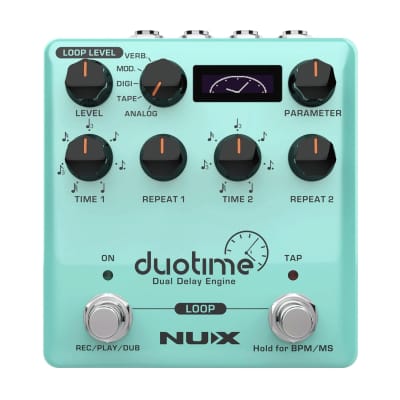

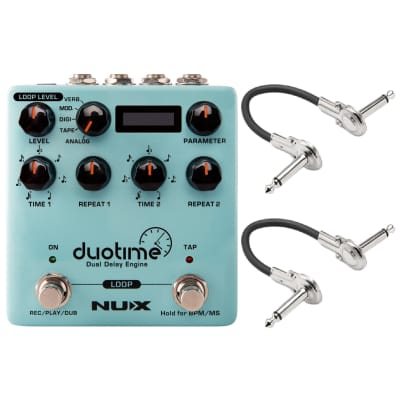

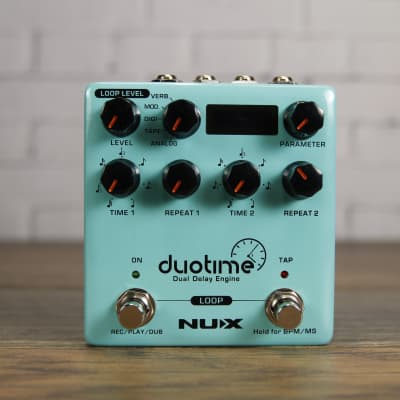

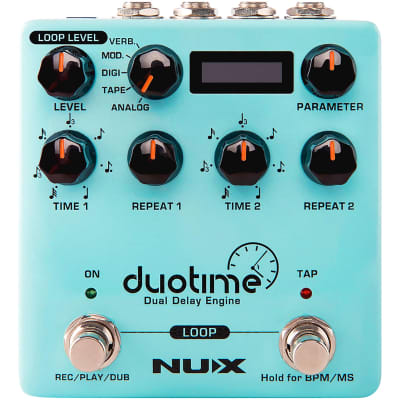

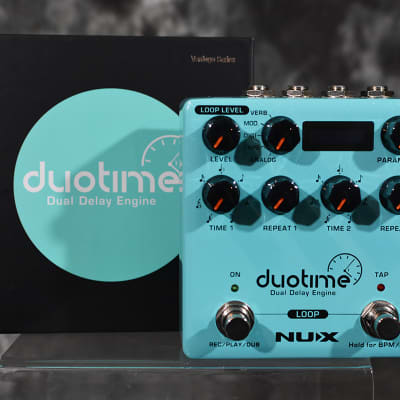

NDD-6 duotime Dual Delay

The NUX NDD-6 Duotime Dual Delay Engine is a real stereo delay pedal with independent time/sub-division and repeat knobs. It offers analog delay, tape echo, digital delay, modulation delay, and verb delay. The pedal's technical specifications are as follows:

- Sampling rate: 48kHz
- A/D Converter: 32Bit
- Signal Processing: 32Bit
- Frequency Response: 20Hz~20kHz - ±1dB
- Maximum input level: 10dBu/2.8Vrms
- Input Impedance: 5MΩ
- System Latency: 1ms
- Maximum output level: 10dBu/2.8Vrms
- Output Impedance: 1kΩ
- Dynamic Range: 102dBu
- THD+N Ratio: 0.02%/-70dB(A-Weighting)@input 1Vrms,1kHz
- Power: 9VDC (Negative tip, Optional ACD-006A adapter)
- Current Draw: >150mA

The pedal is designed to provide a compact size and ultra-simple controls, making it easy to operate. It is suitable for musicians looking for a high- quality stereo delay pedal with a wide range of delay effects.
