Binary Eko

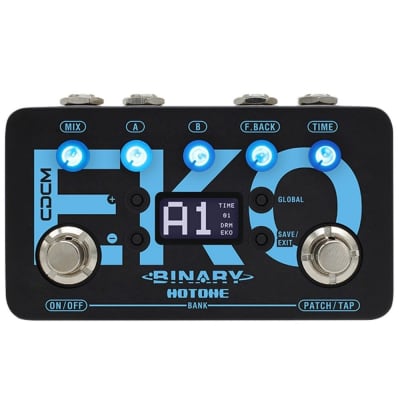

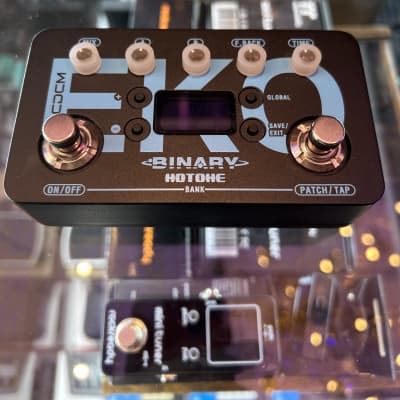

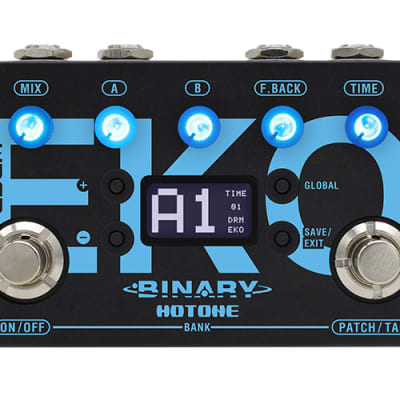

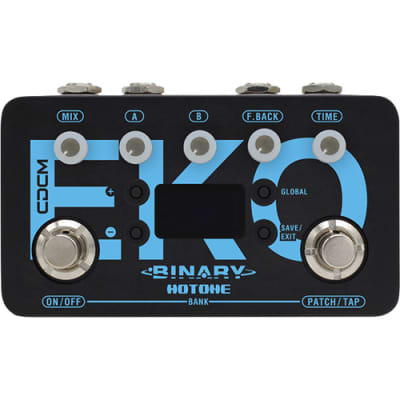

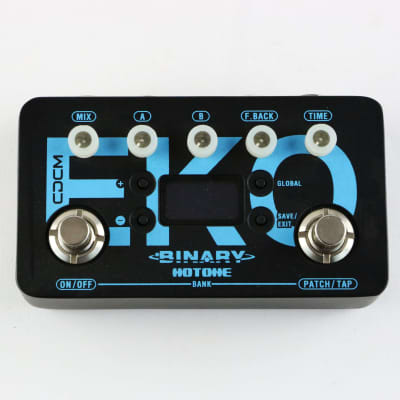

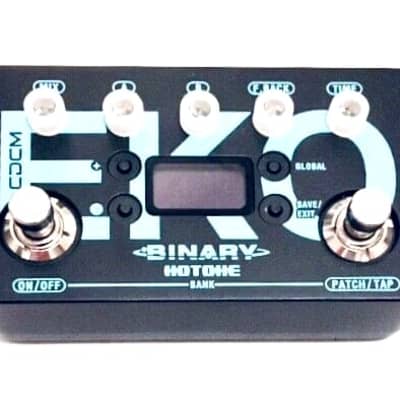

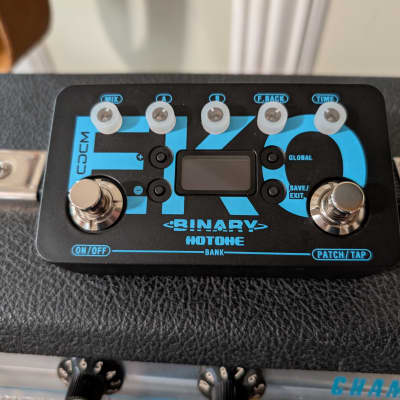

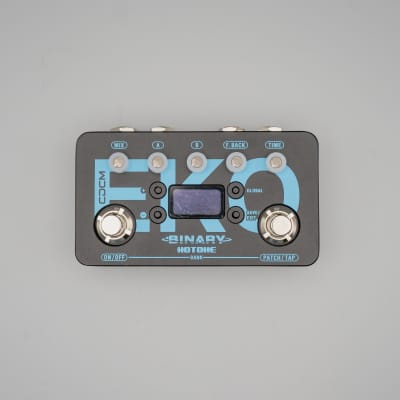

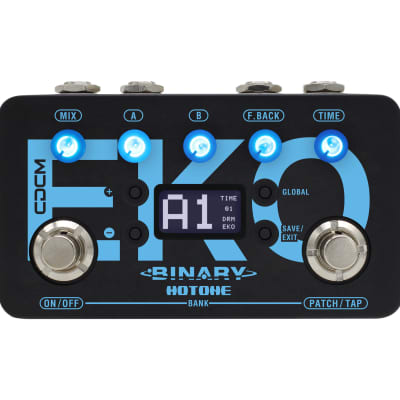

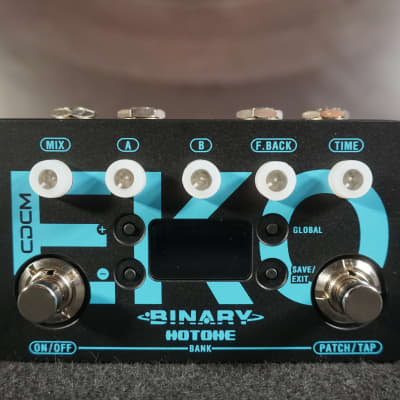

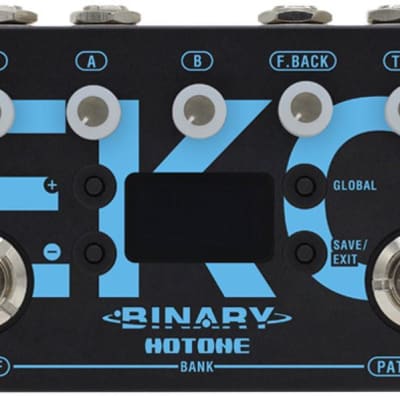

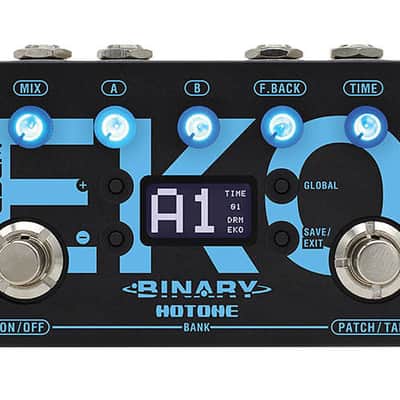

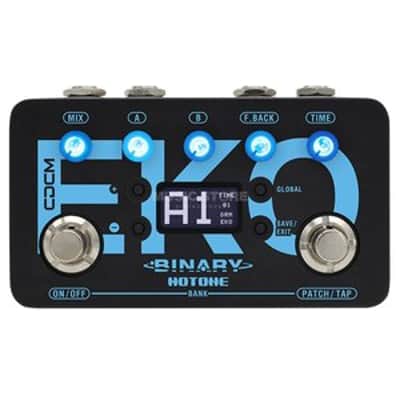

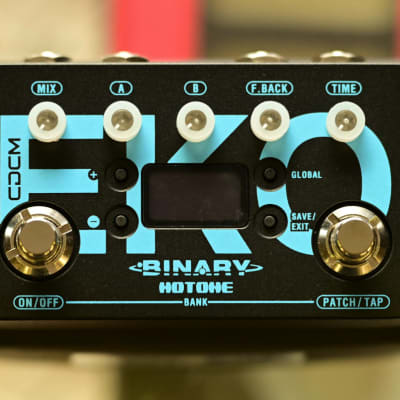

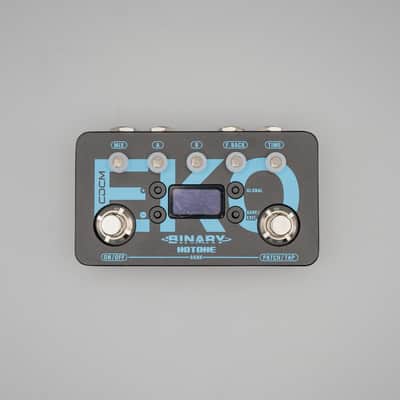

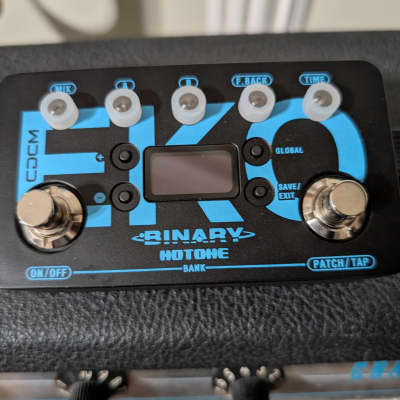

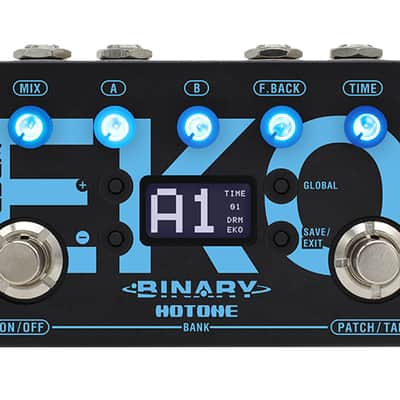

The Hotone Binary Eko is a CDCM-based multi-modulation effects pedal designed for guitar use. It offers 17 high-quality delay effects, including CDCM-based classics and Hotone originals. The pedal features a dual-DSP powered platform and a 24-bit A/D/A conversion, ensuring a realistic playing experience with a high sound quality and up to 110dB S/N ratio. The maximum delay time ranges from 1000ms to 4000ms, and it includes a tap tempo function with Tap Divide.

The pedal provides stereo I/Os, an EXP jack for expression pedal control, and a USB jack for firmware upgrading and effect management with free PC/Mac software. It offers 10 presets (2 banks x 5 patches) and is equipped with a built-in OLED screen for clear display. The pedal's dimensions are 121mm (D) x 72mm (W) x 47mm (H), and it weighs 340g. The power requirement is DC 9V, center negative, with a current consumption of 200mA minimum.

The Binary Eko also includes various features such as input mode selection, max delay time setting, trail settings, expression pedal range and calibration, and a comprehensive list of effect models. The pedal's specifications include 24-bit A/D/A conversion, 44.1 kHz sample rate, a frequency response of 20 Hz-20 kHz, an input impedance of 1M Ohms, and an output impedance of 100 Ohms.
