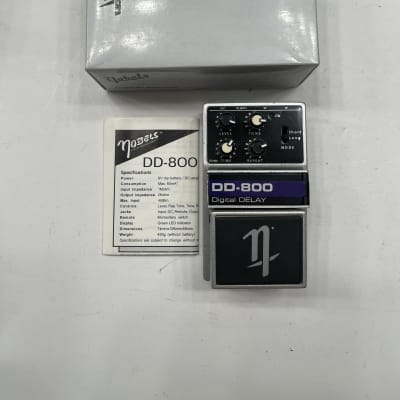

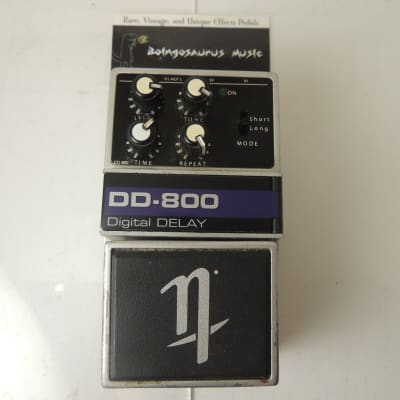

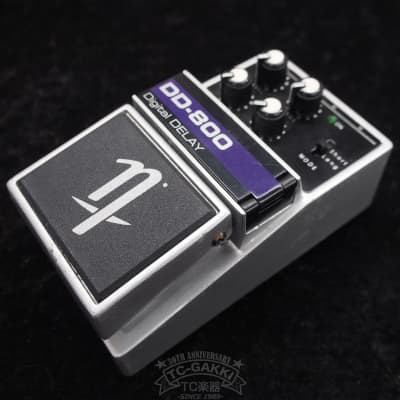

DD-800 Digital Delay

The Nobels DD-800 Digital Delay pedal offers the following technical specifications and features:

- Input Impedance: Approximately 1M ohm
- Output Impedance: Approximately 2k ohm
- Maximum Input: -6 dBm
- Power Supply: 9V battery or electrically stabilized power supply 9V to 12V DC, minimum 100mA, 2.1mm plug, tip negative (power supply not included)
- Dimensions: 109mm x 67mm x 48mm
- Weight: 248g
- Controls: Level, Rep.Tone, Time, Repeat, and Mode switch (short, long)
- Mode switch allows setting the maximum delay time to 200ms or 800ms
- Fine adjustment of delay time with the Time-Control
- Repeat-control leads the delayed signal back to the input to achieve periodic repeats
- Control range can be set to infinite repeats to create experimental space sounds
- Rep.Tone-control for tone control of the repeated delay signal, allowing for analog delay-like sound by dampening high frequencies
- Input for remote switch
- Heavy metal housing
- Low battery consumption
- Fast and easy battery exchange

The Nobels DD-800 Digital Delay pedal is designed to provide precise control over delay effects, offering flexibility in creating various delay sounds and experimental effects. It is suitable for use in guitar and other musical applications where high-quality digital delay effects are desired.
