Gravity

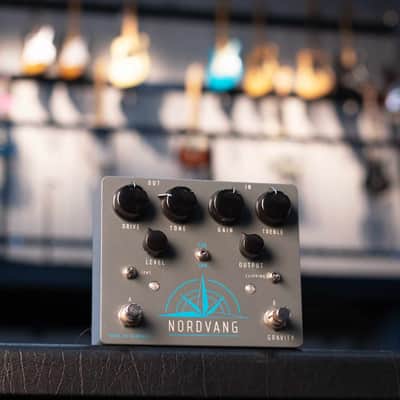

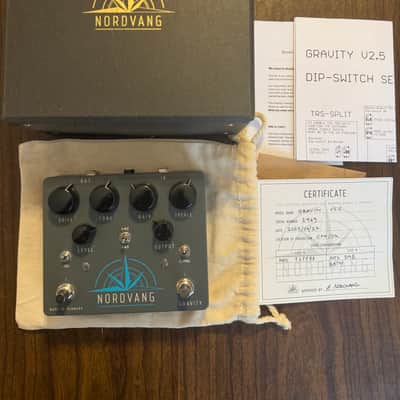

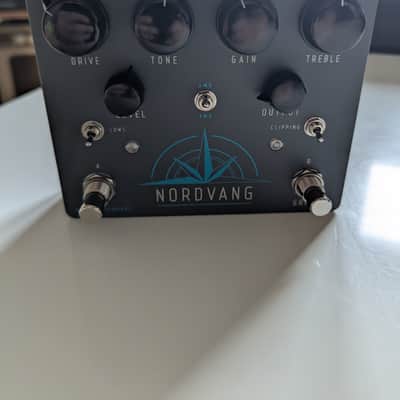

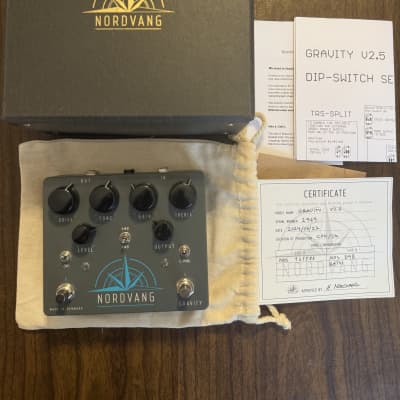

The Nordvang Custom Gravity v2.5 is a dual overdrive pedal that combines the K-style circuit and a TS10 circuit in one enclosure. It is designed to specialize in mid push, allowing users to cut through the mix in any situation. The pedal is inspired by the live lead tones of John Mayer, particularly in his songs "Gravity" and "Belief," where he stacks these two pedals to achieve a signature tone with a thick wall of mids.

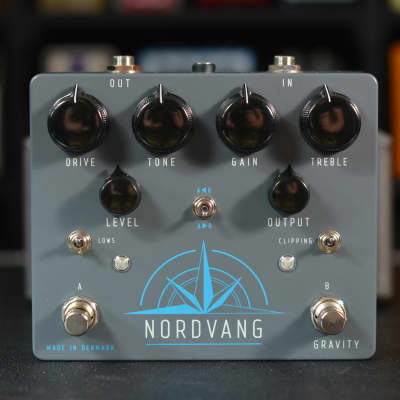

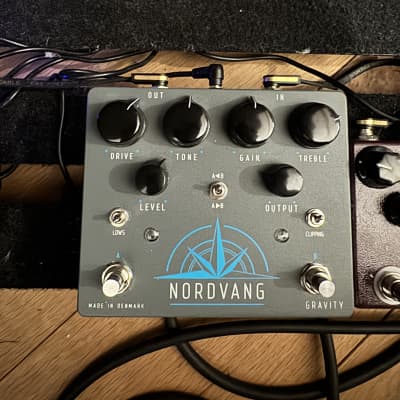

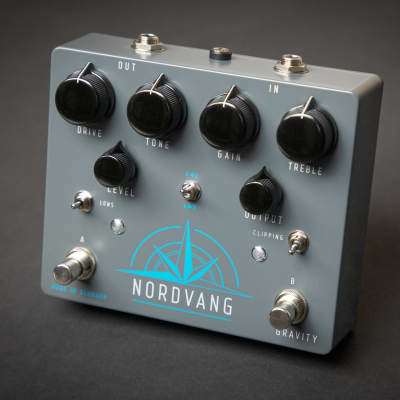

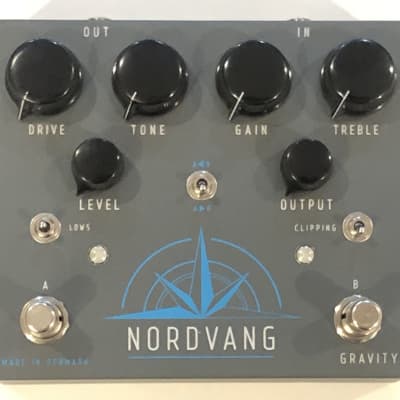

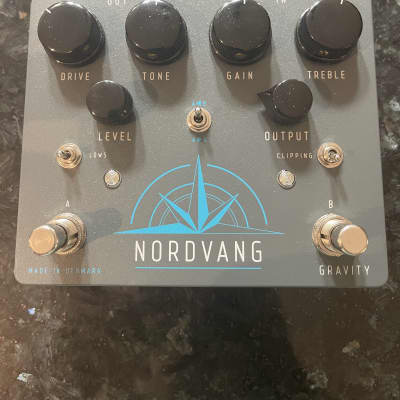

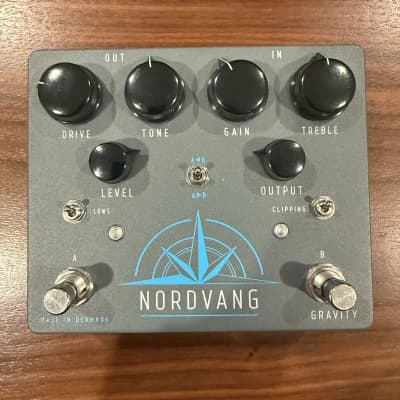

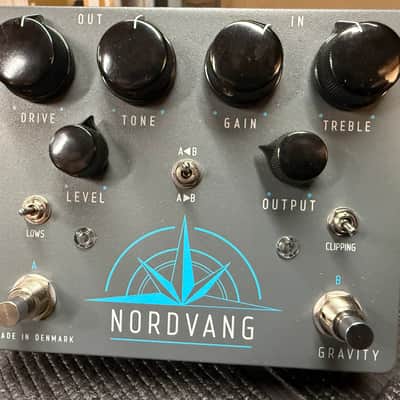

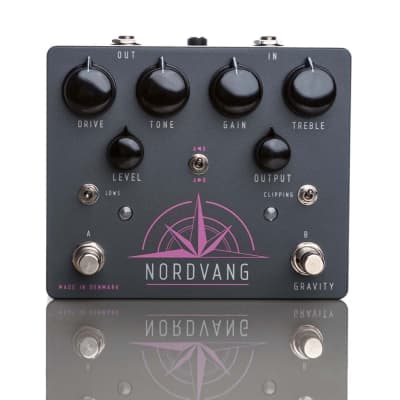

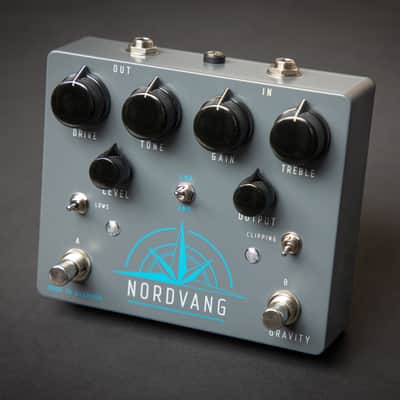

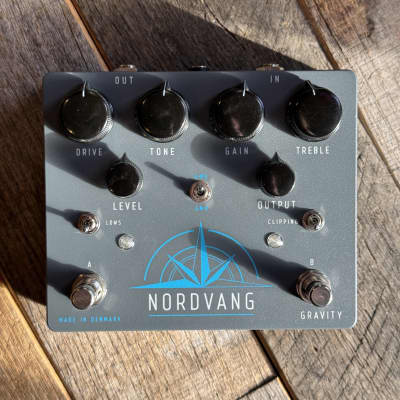

The Gravity v2.5 is divided into side A (left) and side B (right), with the ability to use both sides separately or stacked. It features external knobs for DRIVE, TONE, LEVEL, GAIN, TREBLE, and OUTPUT, as well as toggle switches for LOWS and CLIPPING. Additionally, the pedal offers internal dip switches for extended tweaking, including options for output boost, clarity, brightness, and clipping.

The technical specifications of the Gravity v2.5 include:
- Dimensions: 5.72" x 4.77" x 1.39"
- Power Supply: Requires a regulated 9-volt DC power supply with standard 2.1mm jack tip negative polarity
- Max Power Consumption: 100mA (+9VDC)
- No battery operation
- TRS split capability for using the two sides of Gravity in serial mode or split mode
- Carefully selected top shelf components, including VISHAY 1% metalfilm resistors, WIMA MKP10, MKS4, and FKP2 film capacitors, VIMEX sealed potentiometers, TAIWAY footswitch, TAIWAY toggle switches, PURE TONE MULTI- CONTACT 1/4" JACK, and silver plated teflon insulated cable for internal wiring
- US made DAVIES MOULDING 1470 knobs

The pedal is built with attention to detail, replicating the original circuits while adding switching options for additional tone shaping. It is recommended to use a quality power supply with isolated outputs to ensure optimal performance.
