Micro Flanger

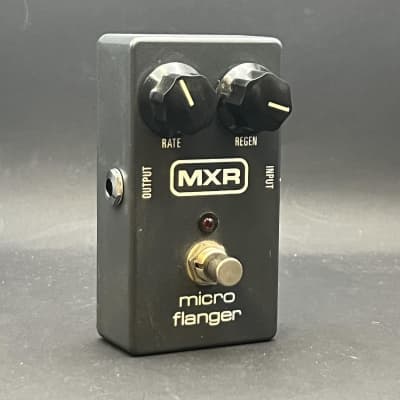

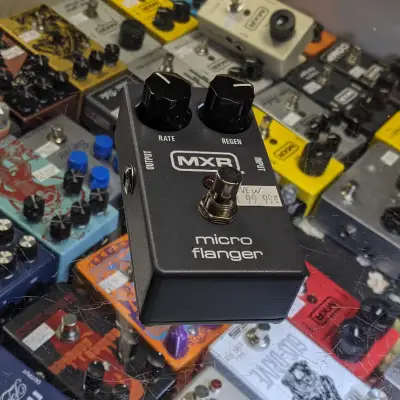

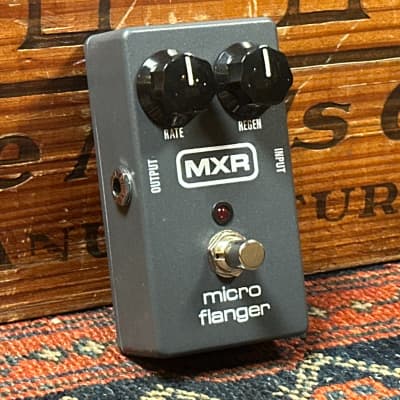

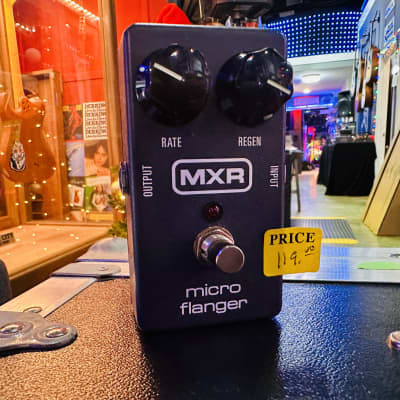

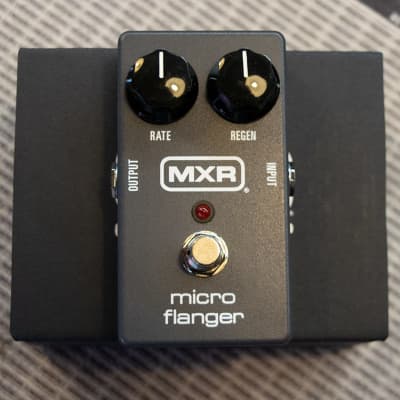

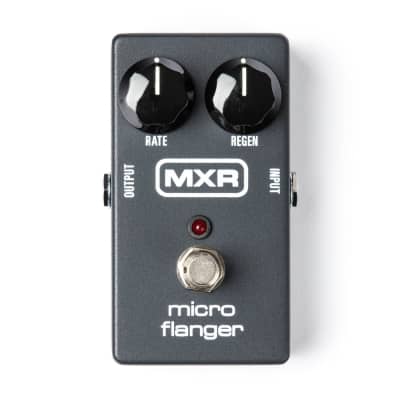

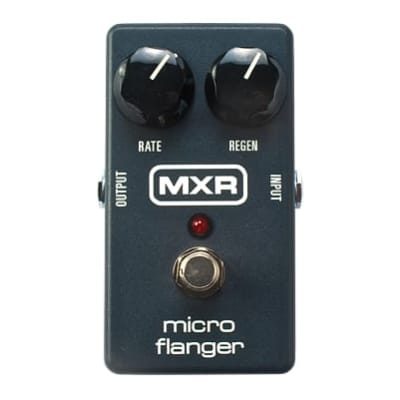

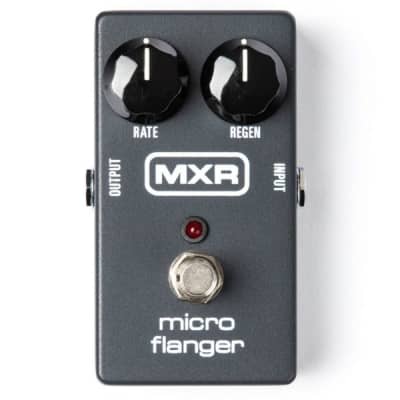

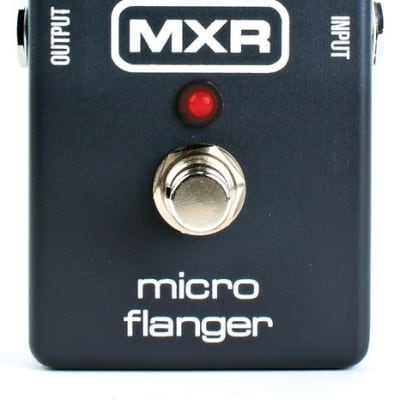

The MXR M152 Micro Flanger is a guitar effects pedal that offers a range of features and specifications:

- The pedal is based on the benchmark sounds of the MXR M117 Flanger, featuring many of the same flanging effects but in a smaller and more convenient size.
- It is equipped with 100% analog bucket brigade technology, providing warm and organic tone.
- The Micro Flanger features two critical controls: a Speed knob to control the rate of cycling and a Regeneration knob to manage the overall intensity.
- It is designed with true bypass switching to ensure no tone loss during bypass.
- The pedal operates with all analog circuitry and offers a delay range of 3.9 µs to 4 ms.
- The input impedance is 1 MΩ, output impedance is 1 kΩ, and the maximum input level at 500 Hz is -2 dBV.
- The maximum output level is +8 dBV, and the noise floor is -88 dBV (A-weighted).
- The Rate control ranges from 0.2 Hz to 5.5 Hz, and the current draw is 7 mA.
- The Micro Flanger can be powered by one 9-volt battery or a 9-volt AC adapter such as the Dunlop ECB003/ECB003E or a DC Brick™ power supply.

The MXR M152 Micro Flanger is suitable for creating a variety of flanging effects, from jet plane-like sweeps to cool outer space-type effects, making it a versatile tool for guitarists seeking to expand their sonic palette.
