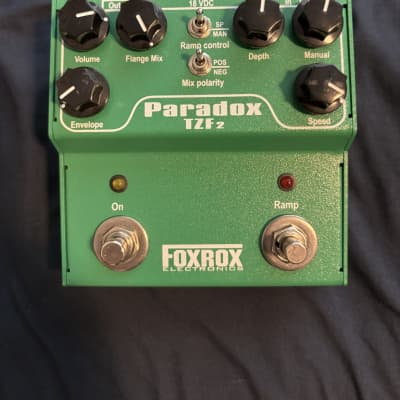

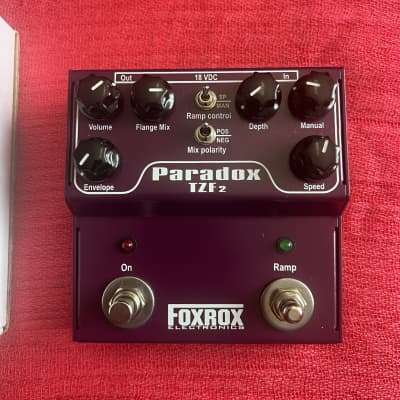

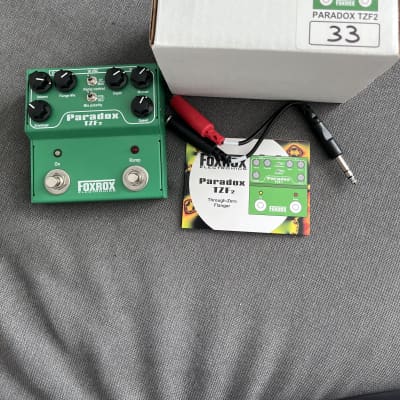

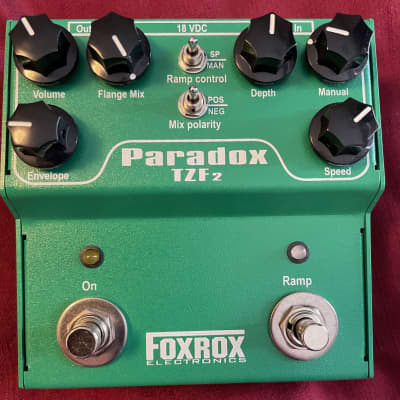

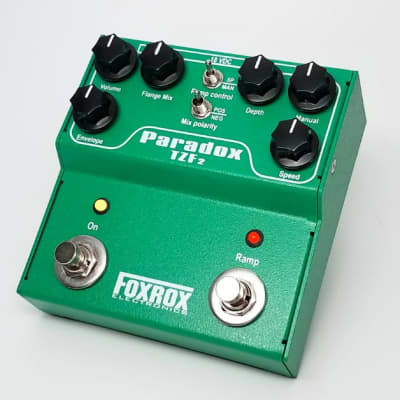

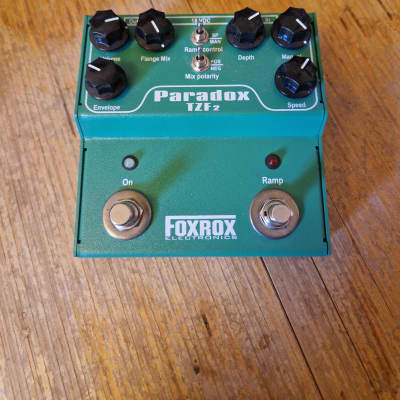

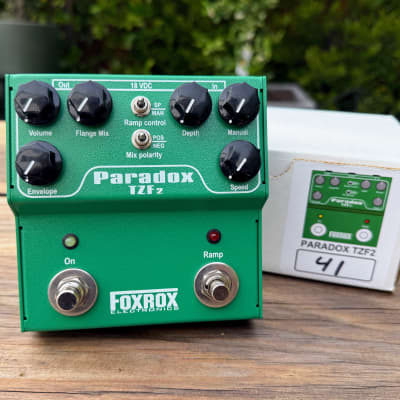

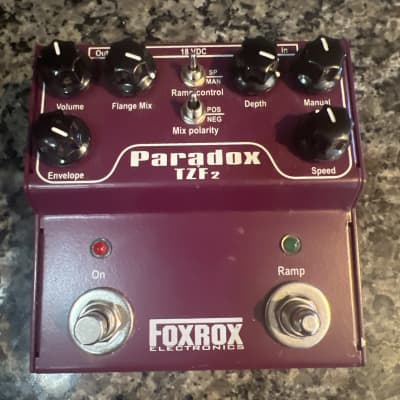

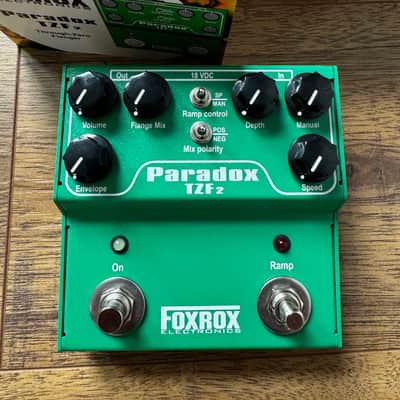

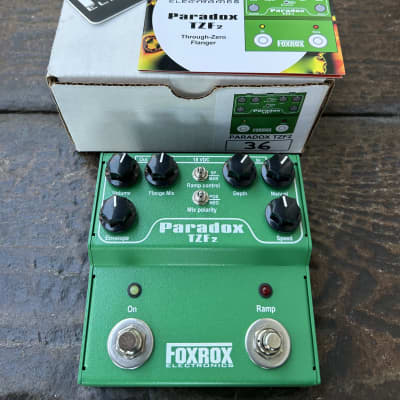

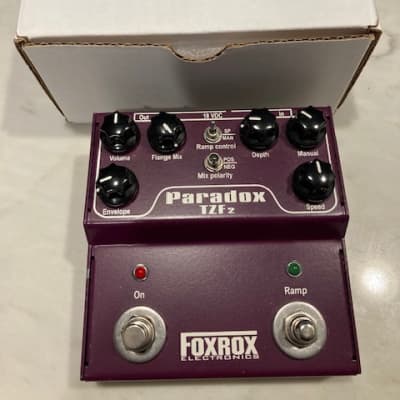

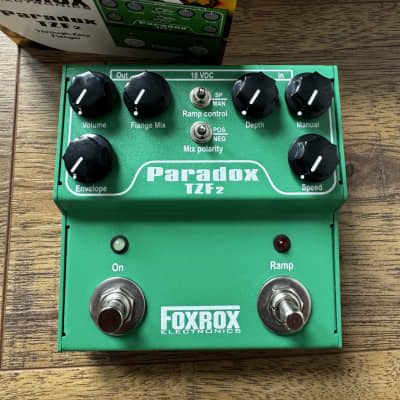

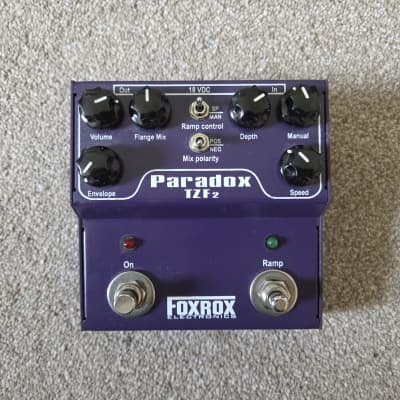

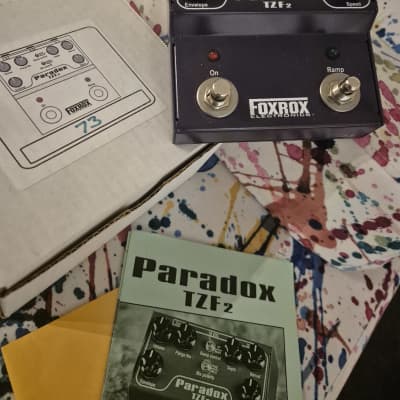

Paradox TZF2

The Paradox TZF2 by Foxrox Electronics is an analog through-zero flanger designed for live performance. It offers organic, time-based modulation with interactive sweep control and warm analog processing, producing flanging sounds found in recordings and nature. The pedal is an updated version of the original Foxrox Paradox TZF, known for being the first flanger pedal capable of achieving a through-zero sweep. The Paradox TZF2 is a smaller, slimmed-down version of the original design, with features geared towards live performance, including Envelope control and Ramping for speed and flange point, along with a wide range LFO. It also provides both Positive and Negative mixing for creating the through-zero sweep.

Key Features:
- Volume control for adjusting the level and providing a boost if needed
- Flange Mix control for adjusting the intensity of the effect
- Width control for adjusting the width of the LFO sweep
- Manual control for manually sweeping through the flanging spectrum
- Speed control for adjusting the speed of the sweep
- Envelope control for using the dynamics of the input signal to control flange point
- Polarity switch with a Center position for selecting a warm pitch vibrato
- Ramp selector switch for selecting between Speed ramping and Manual ramping
- True bypass with Red LED for signal switching

Technical Specifications:
- Inception Date: July 2015
- Dimensions: Width = 5", Depth = 4.8", Height = 2.85"
- Unit Weight: 1 lb. 11 oz.
- Voltage: 18 Volts DC
- Current Draw: 100 mA
- Power Connection: 2.1mm, Center = NEG (FX standard)
- Signal Switching: True bypass with Red LED

The Paradox TZF2 is designed to provide a wide stereo image when used with stereo outputs, and it is recommended to run overdrive/distortion/fuzz effects before the pedal for the best results.
