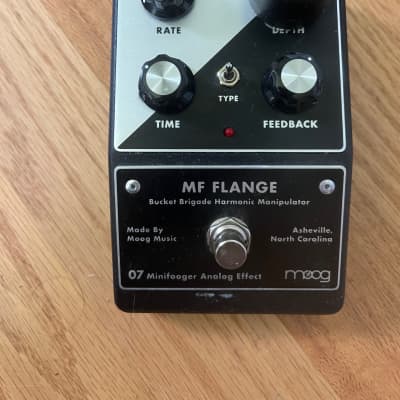

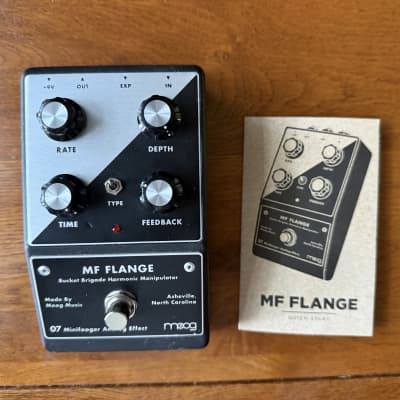

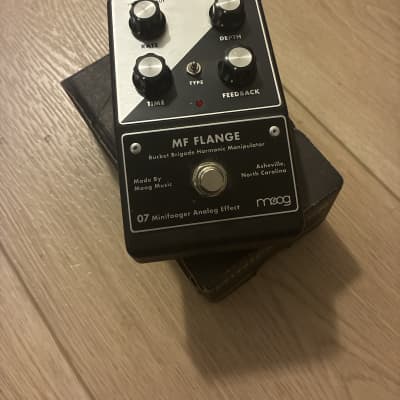

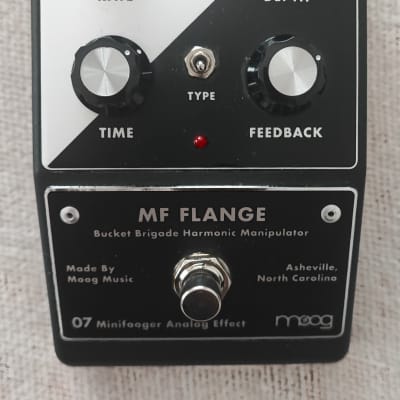

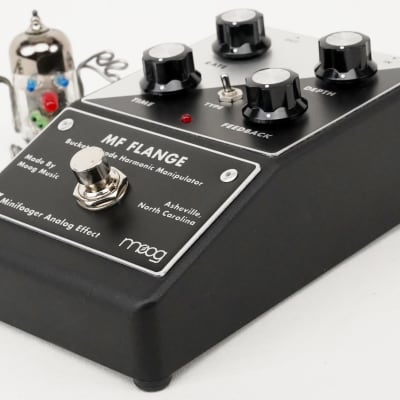

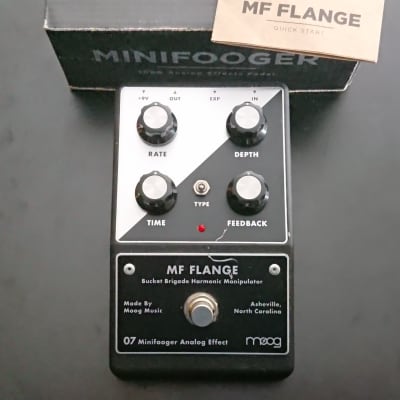

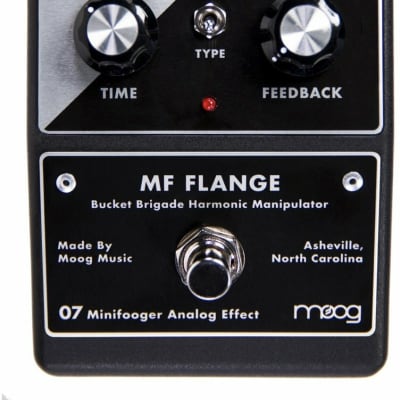

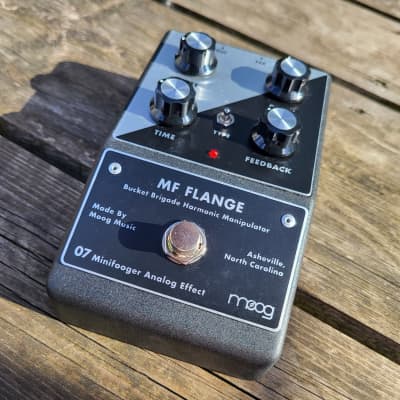

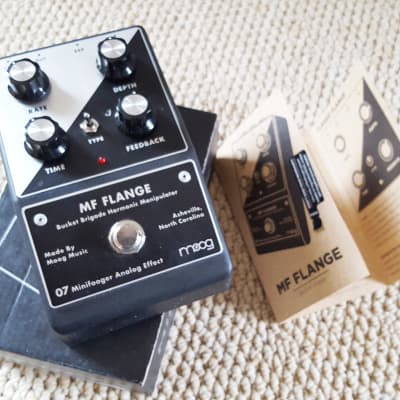

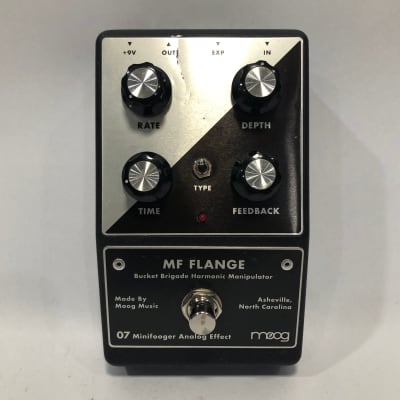

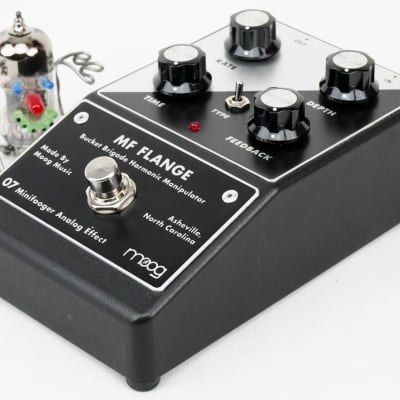

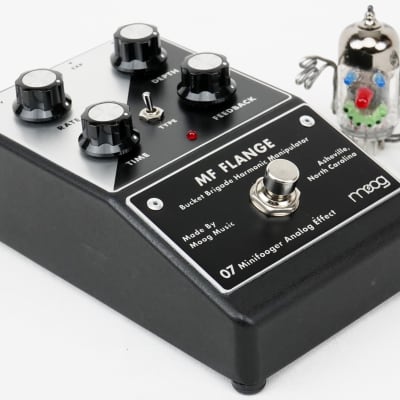

MF Flange

The MF Flange by Moog is a 100% analog, BBD-based harmonic manipulator pedal with a wide array of unique sound sculpting and phase manipulation capabilities. It offers a true bypass and is housed in a cast aluminum enclosure. The specific technical specifications are as follows:

- Signal Path: 100% Analog
- Bypass Type: True Bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast Aluminum
- Dimensions: D=5.75” (14.4 cm), W=3.25” (8.3 cm), H=2.25” (5.8 cm)
- Delay Time: <0.540mS – 16mS (0.340-20mS with modulation)
- LFO Rate: <.025Hz - >11Hz
- LFO Shape: Exponentiated Triangle
- Expression: Controls Time (Max Input level +5VDC)
- Input Impedance: >1 MegaOhm
- Output Impedance: 1000 Ohm Max
- Max Input Level: +7.5dBμ
- Max Output Level: +10dBμ
- Current: 18mA Nominal / 22mA Max
- Stereo Output Modes:
- Type Switch Up: Left (Mono) Output = Dry + Wet / Right Output = Dry - Wet
- Type Switch Down: Left (Mono) Output = Dry - Wet / Right Output = Dry + Wet

The pedal offers a range of controls including Rate, Depth, Time, Feedback, and Type, allowing for a wide variety of flange and vocal effects. Additionally, it features an expression pedal input assigned to the Time control, enabling manual sweep through the delay frequency range of the MF Flange.
