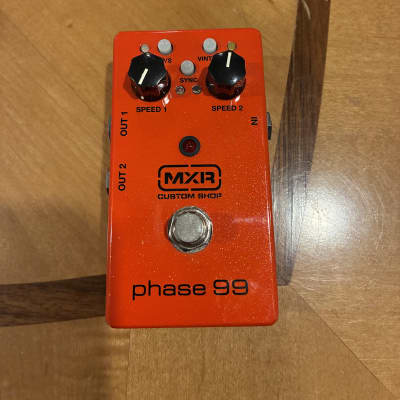

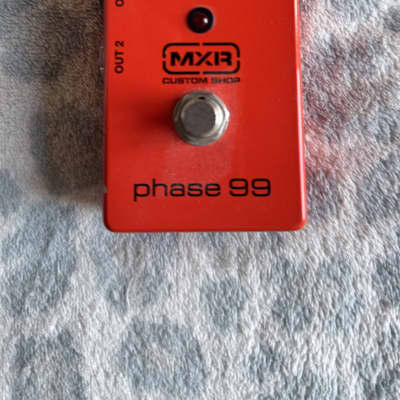

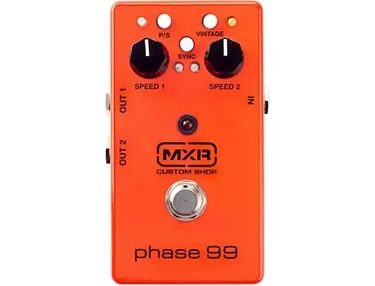

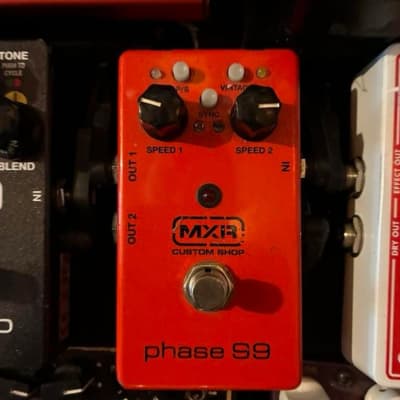

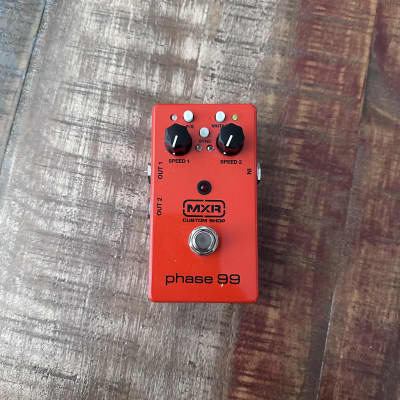

CSP099 Phase 99

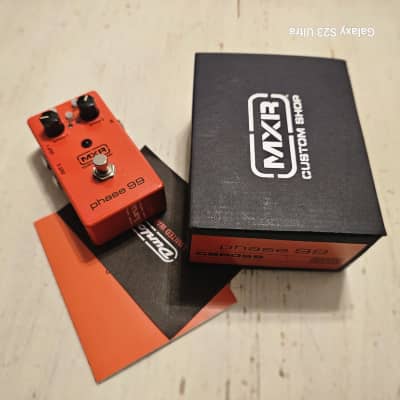

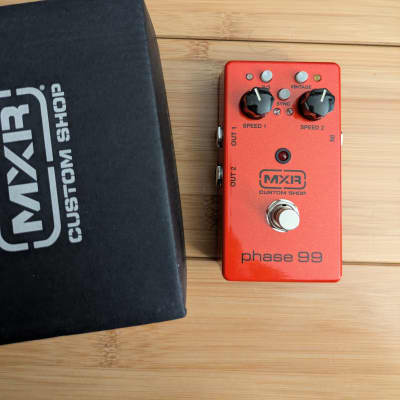

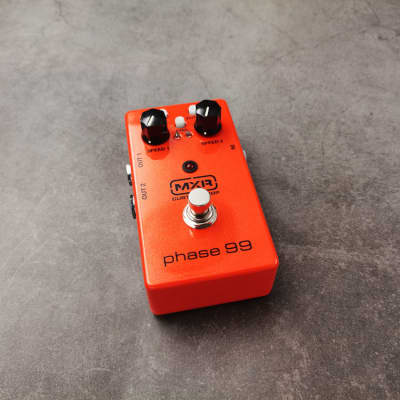

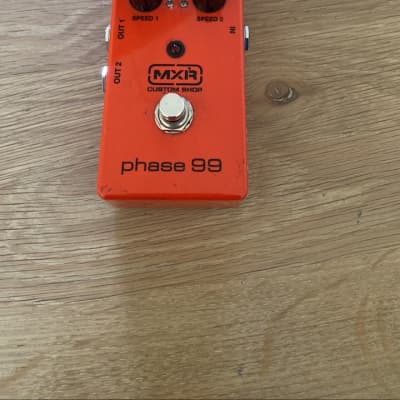

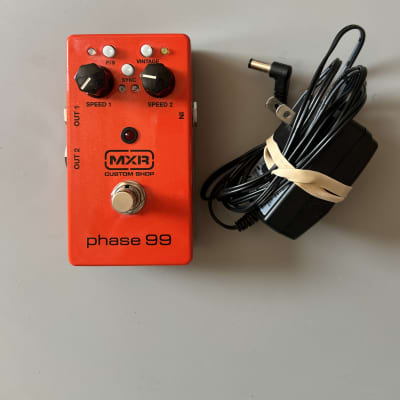

The MXR CSP099 Phase 99 is a versatile phaser pedal designed to provide a wide range of phase effects. It features two Phase 90 circuits in a single Phase 90-sized housing, allowing users to run both circuits independently or feed one into the other. The pedal offers separate rate controls for each circuit, enabling the creation of intense, complex phasing effects.

Key Features:
- Two Phase 90 circuits in a single Phase 90-sized housing
- Separate rate controls for each circuit
- Modern and vintage phase sounds toggle switch
- Series to parallel signal flow toggle switch
- Sync switch to synchronize the rate of each phase circuit

Specifications:
- Input Impedance: 450 kΩ
- Output Impedance: 2 kΩ
- Nominal Input: 20 dBV
- Max Output: 20 dBV
- Noise Floor:
- Series Mode: -95 dBV
- Parallel Mode: -101 dBV
- Bypass: Hardwire
- Current Draw: 24 mA
- Power Supply: 9 volts DC

The pedal also includes a Vintage switch to toggle between modern and vintage style phasing. Additionally, it offers the option to run both phase circuits independently in parallel mode or in series mode for a more intense effect with exaggerated frequency cuts and peaks.

The MXR CSP099 Phase 99 is designed to provide musicians with a wide range of phasing options, making it suitable for various musical styles and applications.
