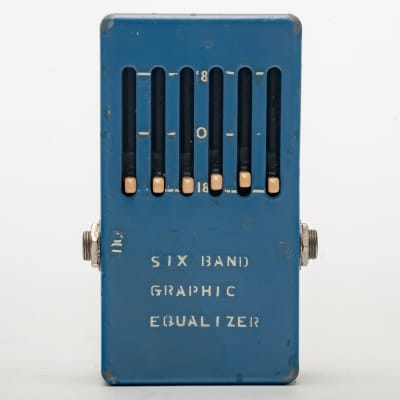

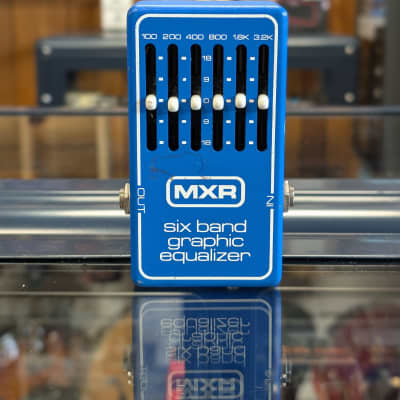

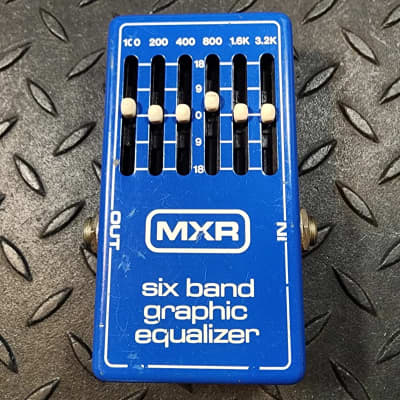

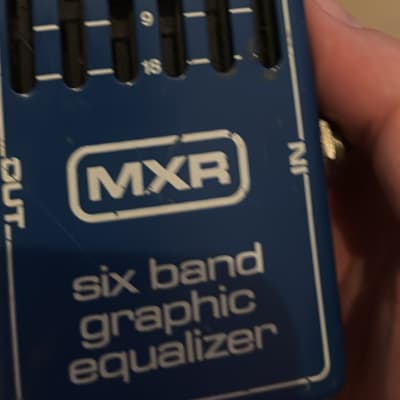

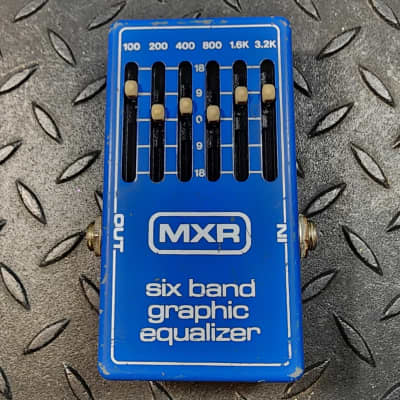

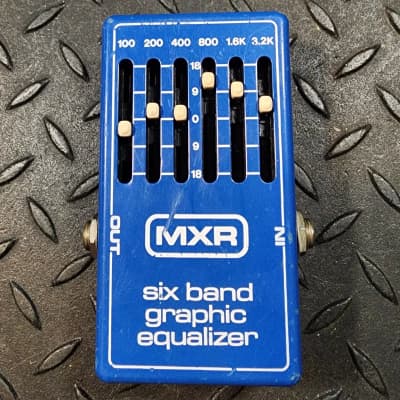

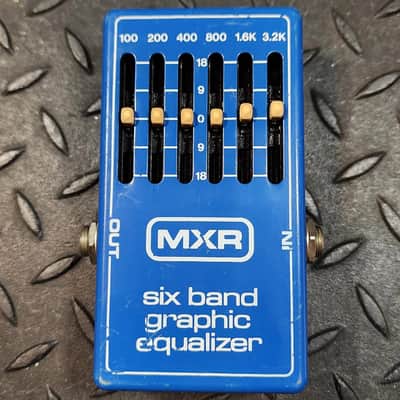

6-Band Graphic Equalizer

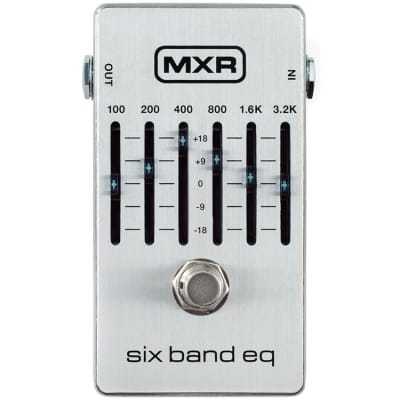

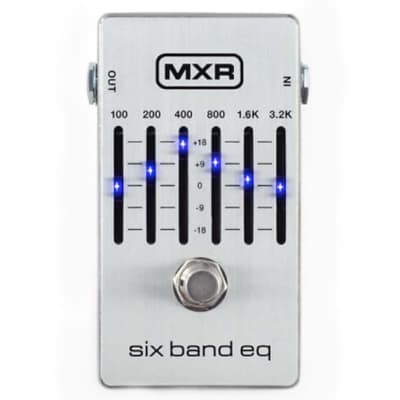

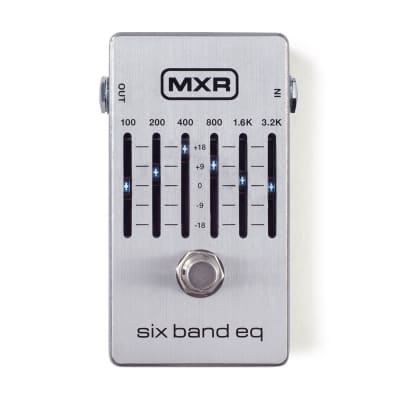

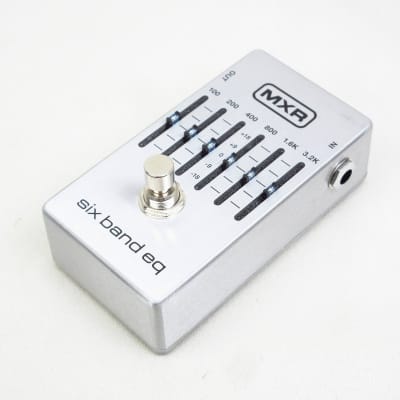

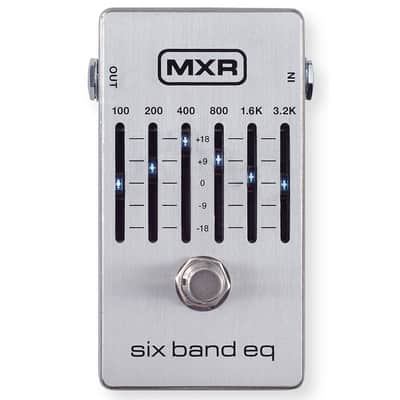

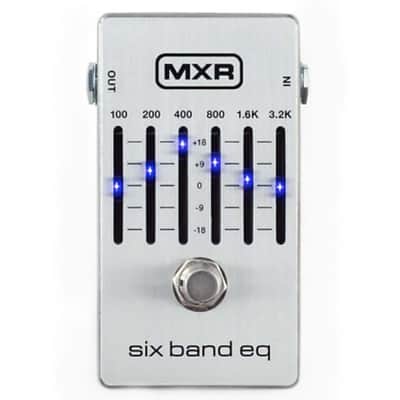

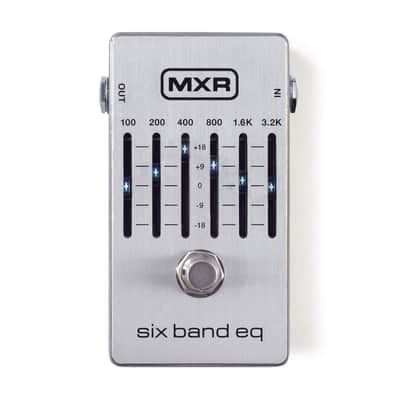

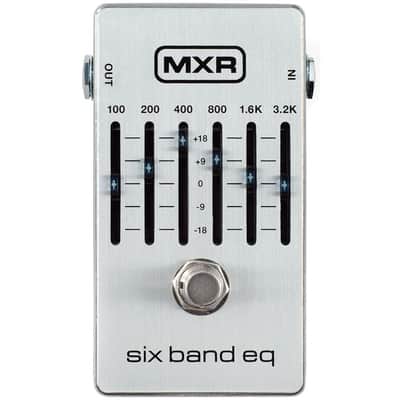

The MXR M109S Six Band EQ is a 6-band graphic equalizer designed for guitar and bass applications. It covers all essential frequencies, with each slider capable of delivering +/-18dB of cut or boost for precise control over the sound. The pedal features noise-reduction circuitry, true bypass switching, and brighter LEDs for increased visibility. It is housed in a lightweight aluminum enclosure.

Specifications:
- Input Impedance: 470 kΩ
- Output Impedance: 5 kΩ
- Max Input Level: +14 dBV at 1 kHz
- Max Output Level: +14 dBV at 1 kHz
- Frequency Response: ±1 dB, 20 Hz to 20 kHz
- Noise Floor: -101.7dBv (A-weighted at 5.2Vrms)
- Filtering: ±18dB at 100, 200, 400, 800, 1.6K, 3.2KHz; ±18dB shelf at 16kHz
- Bypass: True Hardwire
- Current Draw: 14.5 mA

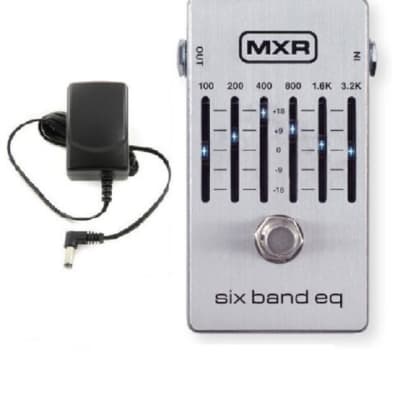

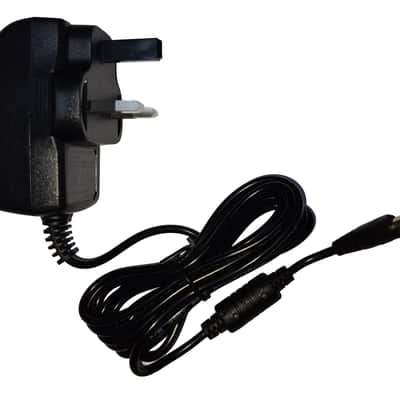

Power options include a 9-volt battery, a 9-volt AC adapter such as the Dunlop ECB003, or the DC Brick™ and Iso-Brick™ power supplies.

The MXR Six Band EQ can be used to create scooped-mid rhythm tones with massive low end, add natural warmth to acoustic pickups, eliminate onstage feedback, and provide a sculptable lead boost when used in the effects loop of an amplifier.
