Phasor II

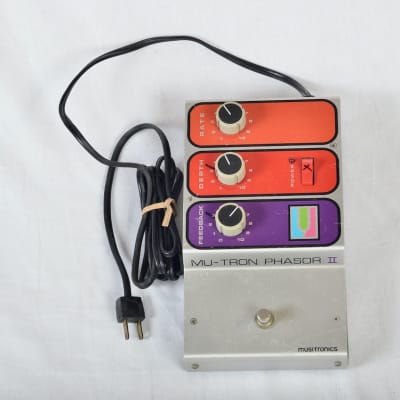

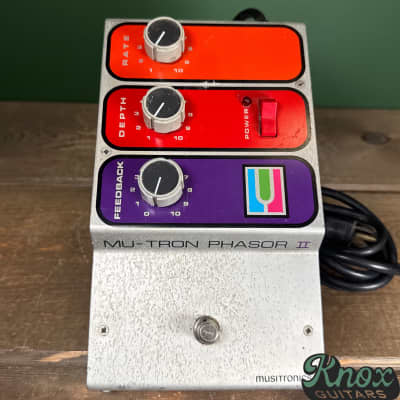

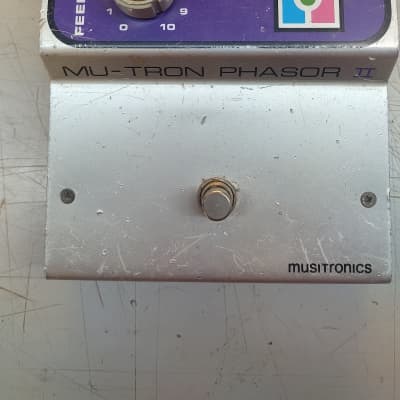

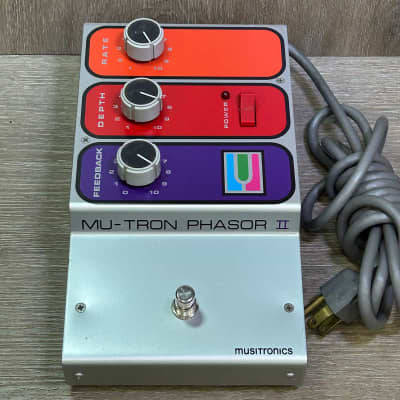

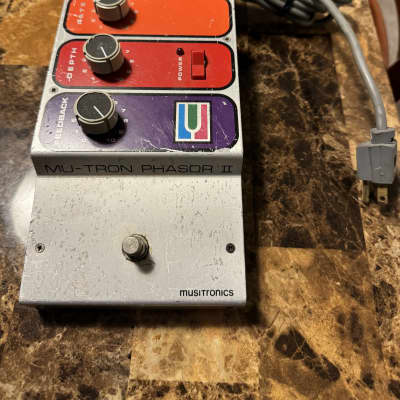

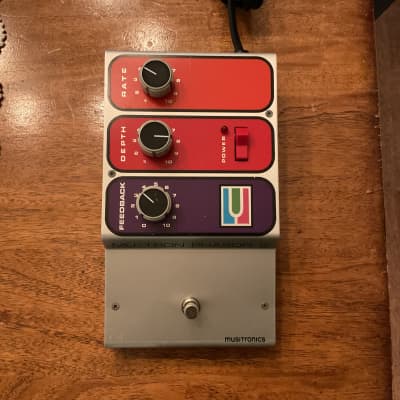

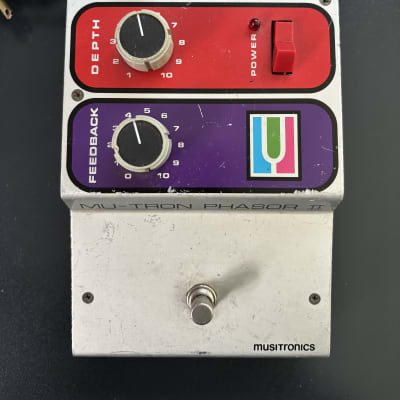

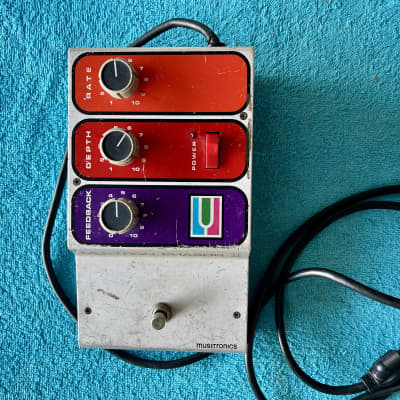

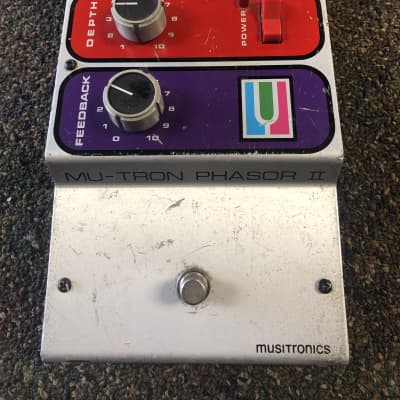

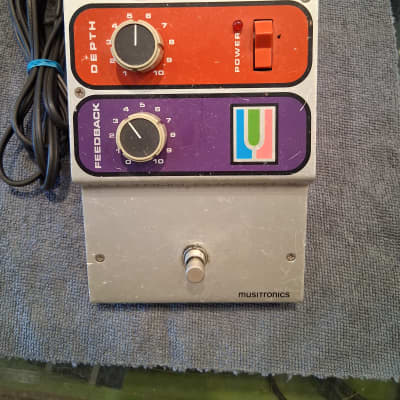

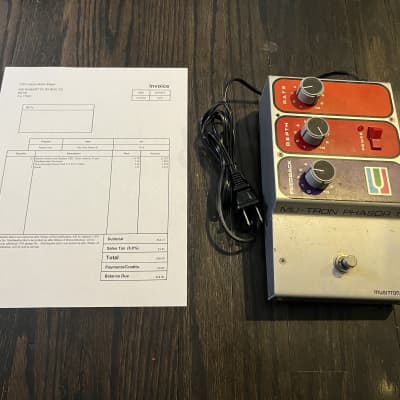

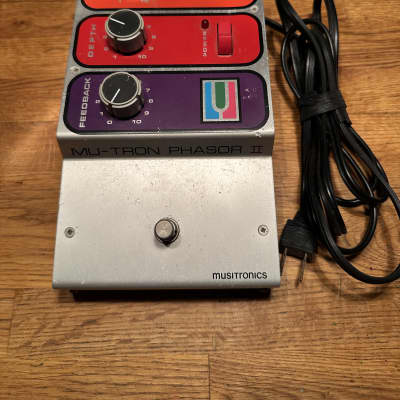

The Mu-Tron Phasor II is an advanced phase-shifting device designed to provide state-of-the-art performance in a rugged, compact package at an affordable price. It features six phase-shift stages providing a maximum of 1080 degrees of phase-shift for a deep, satisfying phasing effect. The exclusive feedback circuitry produces a distinctive, pronounced sweeping effect, even at the slowest phasing rate. The pedal has extremely low noise and unequaled signal- handling capability for freedom from distortion, making it ideal for use after a pre-amplifier or with high-output electric keyboards, as well as for critical use with electric guitars or other instruments in the studio or on stage.

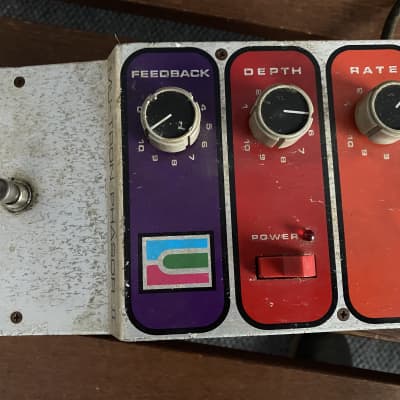

The Phasor II is AC powered for quiet, reliable operation without the annoyance of frequent battery changes. It is equipped with three continuously variable controls for Rate, Depth, and Feedback, providing complete and effective control of sound over a wide range of possible effects. The housing is made of heavy gauge steel and thick, rugged epoxy-finished aluminum, ensuring durability for use on the road.

Technical Specifications:
- Input Impedance: 390K ohms, unbalanced
- Output Impedance: 600 ohms, unbalanced
- Gain: Unity (Less than 1db insertion loss)
- Frequency Response (Bypass): 20Hz – 20KHz ± 2db
- Signal Handling Capability:
- Minimum Feedback: 4V RMS, 11.2V Peak-to-Peak
- Maximum Feedback: 2V RMS, 5.6V Peak-to-Peak
- Signal-to-Noise Ratio: Better than 86 dB below 2V input
- Phasing Rate: 1Hz to 18Hz
- AC Power Requirements: 115V AC, 50-60Hz, 5 watts (230V AC, 50-60Hz available on special order)
- Weight: 3½ pounds
- Dimensions: 8¾” l. X 5″ w. X 3⅛” h.

The Mu-Tron Phasor II is a versatile and high-performance phase-shifting device suitable for a wide range of musical applications, offering musicians the ability to create unique and dynamic soundscapes.
