PH-2 Super Phaser

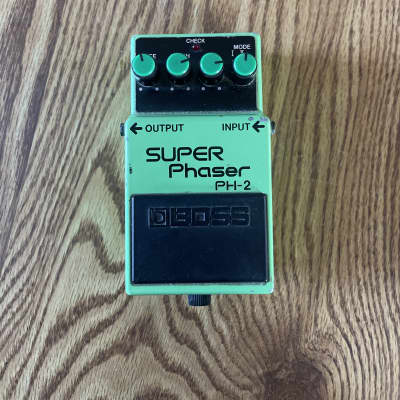

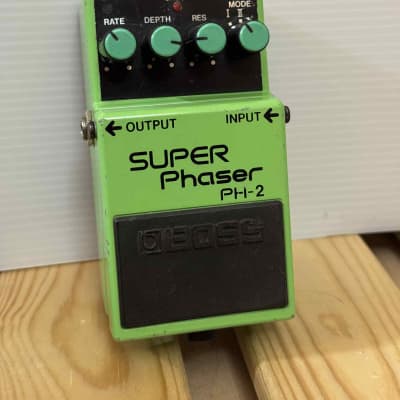

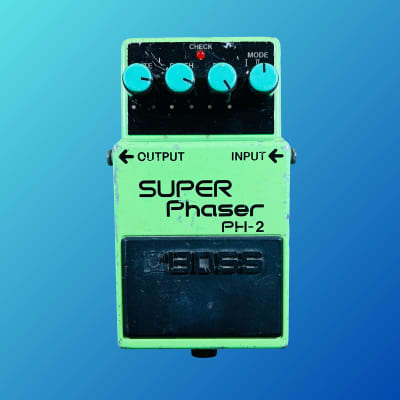

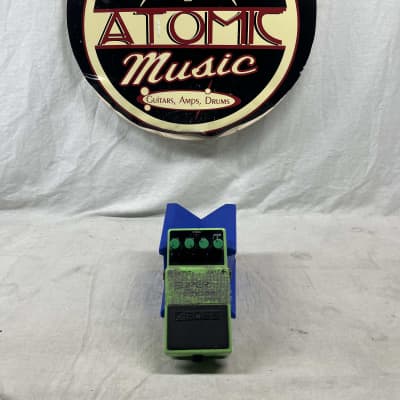

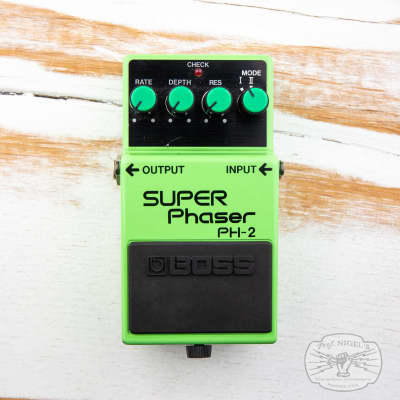

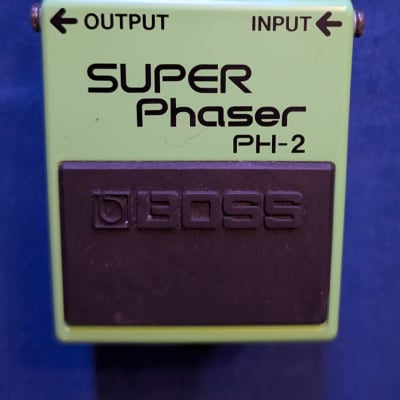

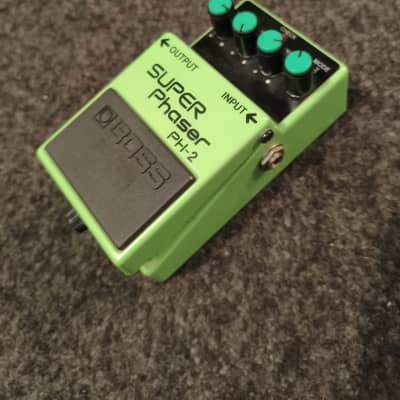

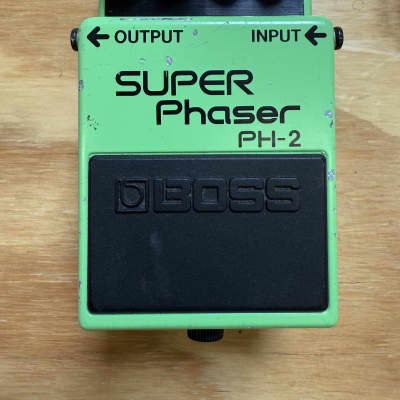

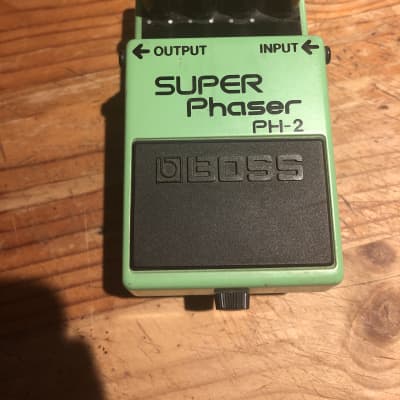

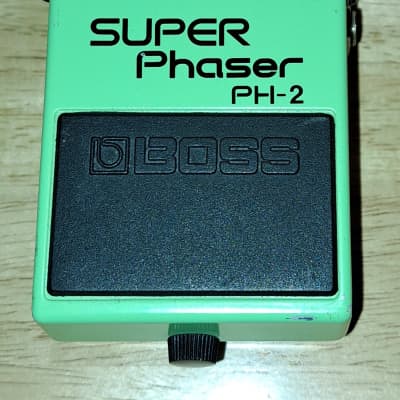

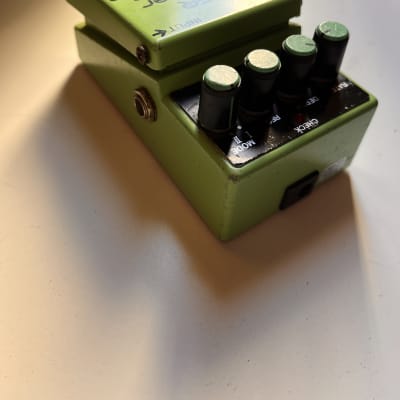

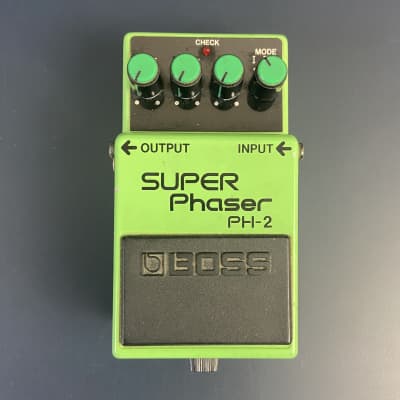

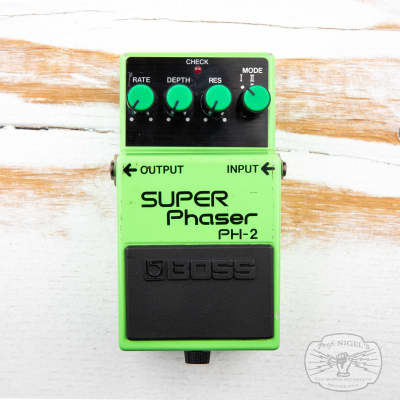

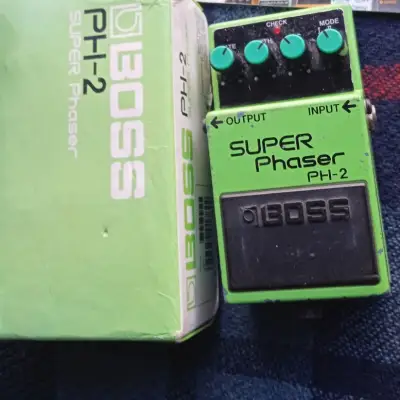

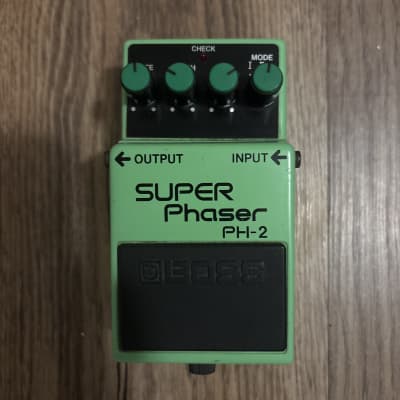

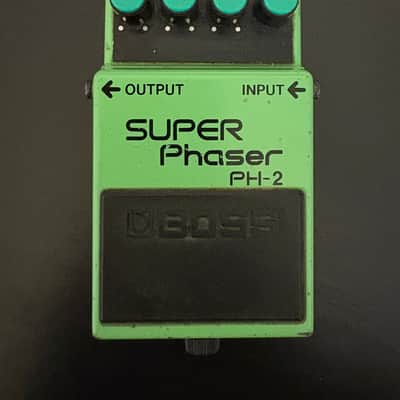

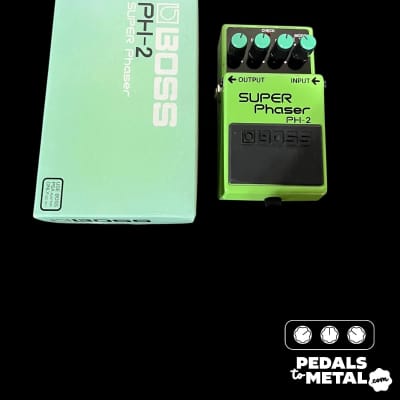

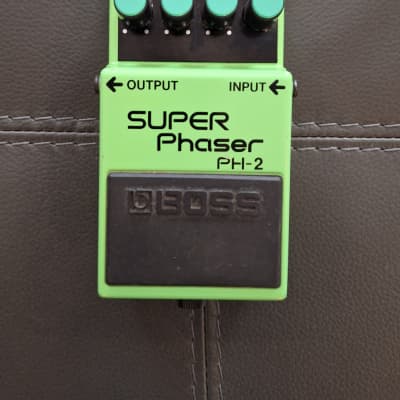

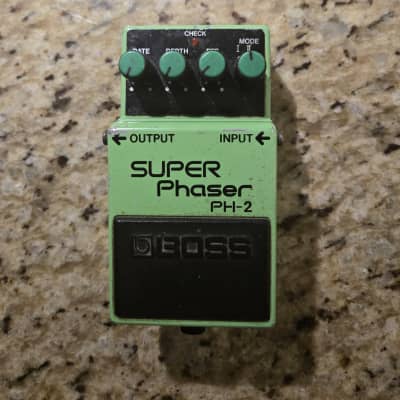

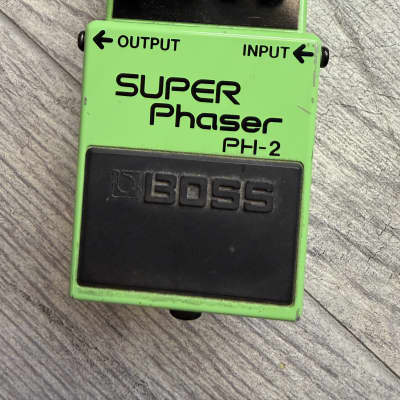

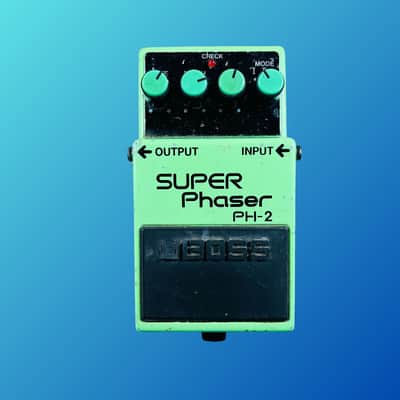

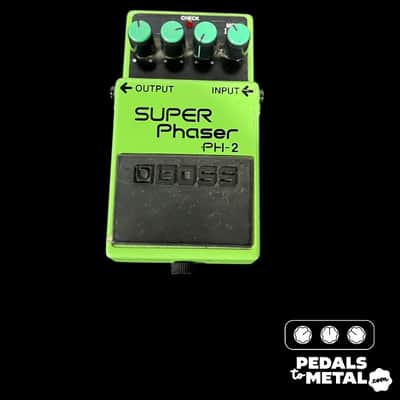

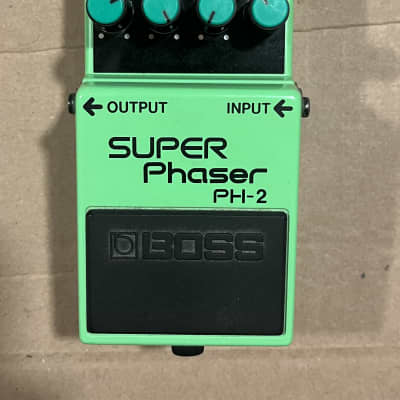

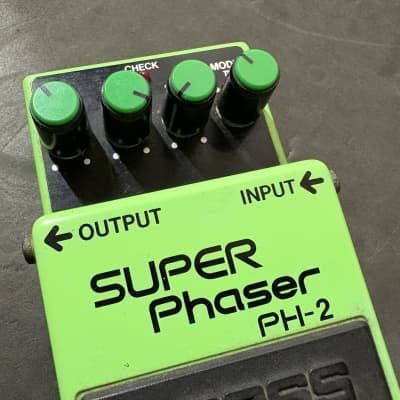

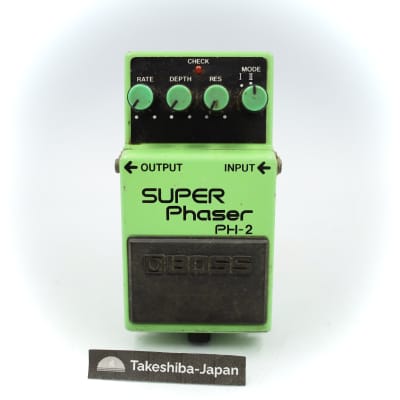

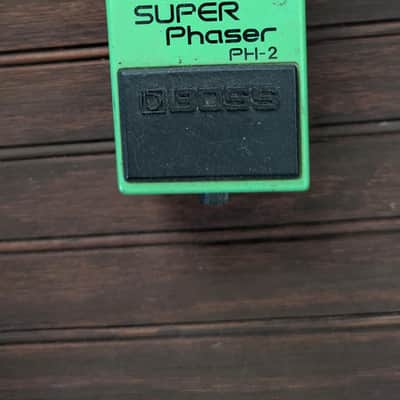

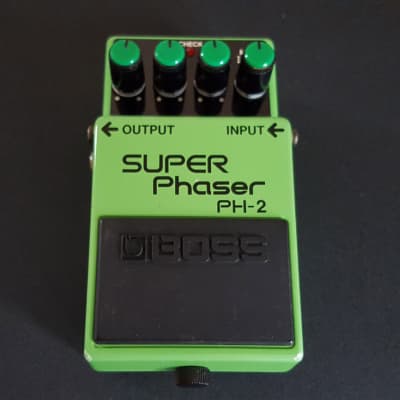

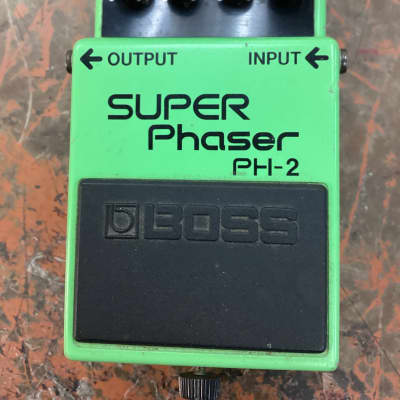

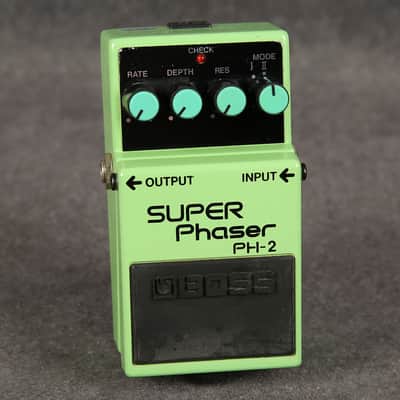

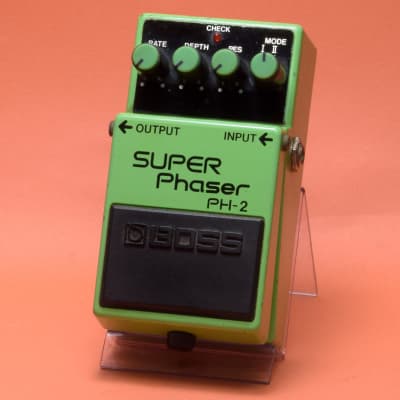

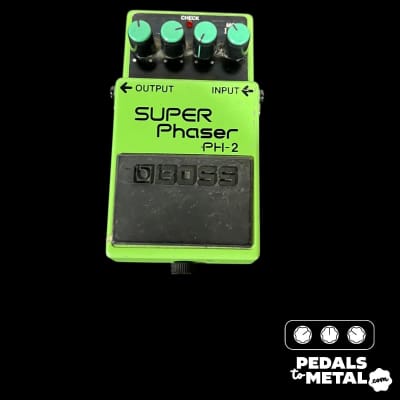

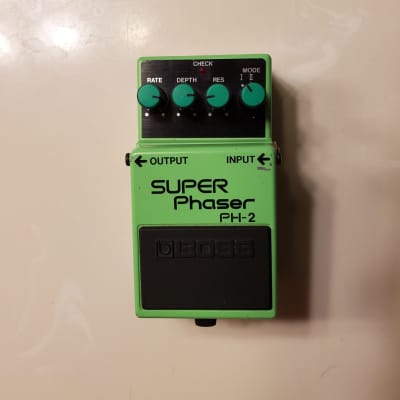

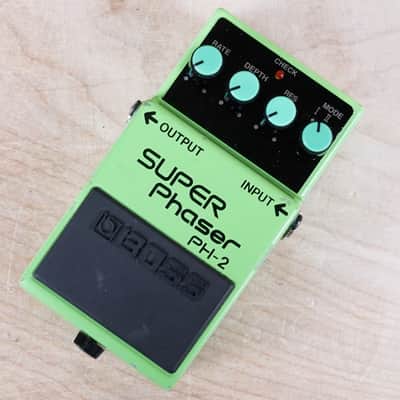

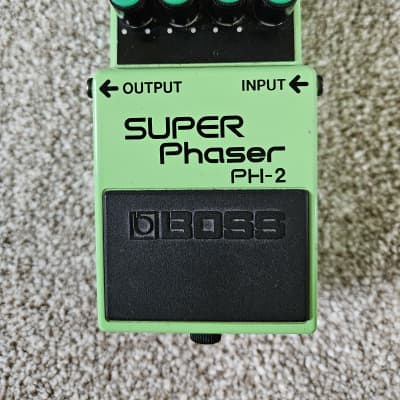

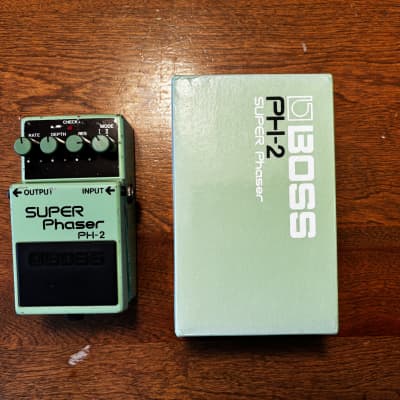

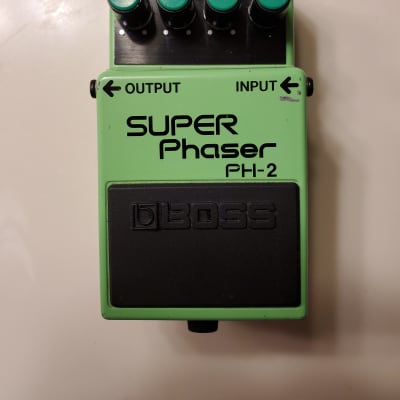

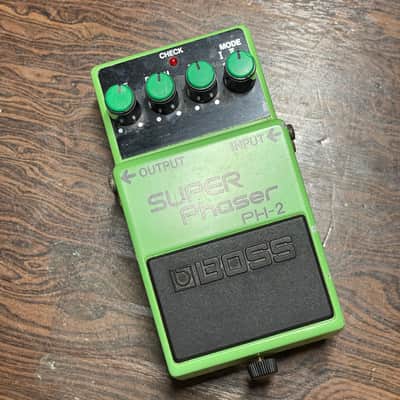

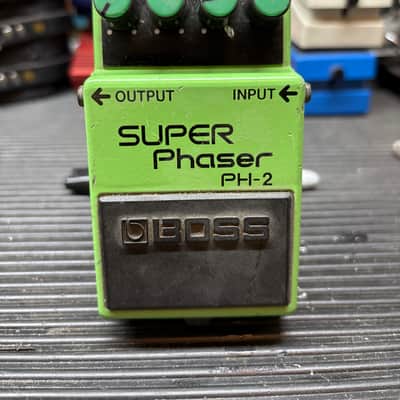

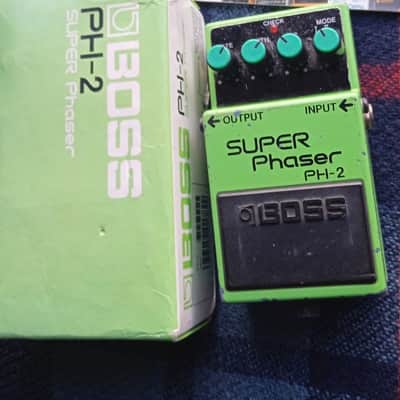

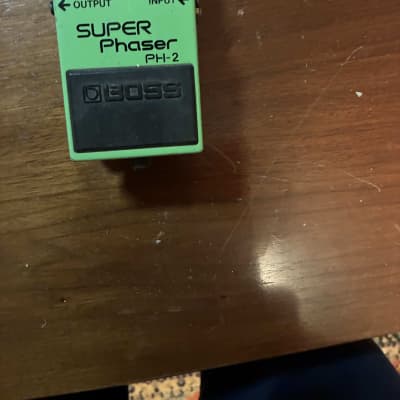

The BOSS PH-2 Super Phaser features a phase shift circuit that provides twelve stages of adjustment for smooth, professional-sounding phasing. It offers two modes with different tonal characteristics, one for a standard effect and the other for a deep, rich phased effect ideal for a funky guitar sound. The controls include Rate, Depth, Res, and a 2-way Mode switch. The pedal has connectors for Input, Output, and AC Adaptor, with a current draw of 20mA (DC 9V). It weighs 410g (.90 lbs) and has an input impedance of 1Mohm (FET Input). The recommended load impedance is 10kOhm or greater, and the LFO speed ranges from 100 ms to 14 s. The PH-2 was sold from September 1984 to March 2001.
