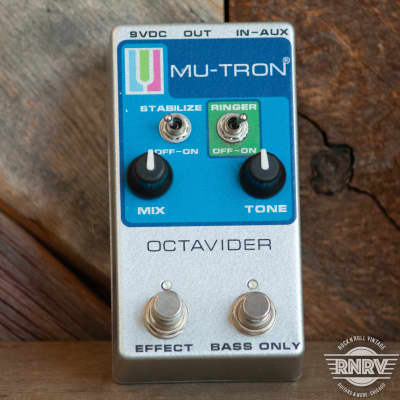

Octavider

The Octavider by Mu-Tron is a compact and versatile pedal designed to create thick analog octave-down and fuzzy ring-modulated octave-up tones. It is powered by an industry-standard 9V DC power supply. The pedal is suitable for use with guitar, bass, keyboards, and horns, effectively turning the instrument into a fat monophonic synthesizer.

Key Features:
- Ability to preserve dynamics and harmonic content of the original signal in the sub-octave
- Stabilization circuit that "locks into" all single-voiced signals
- Tone color control for sub-octave
- Ringer circuit for harmonic emphasis of upper tones and special multi-note effects
- Independent high-fidelity fuzz circuit that adds harmonic overdrive tones with single-knob control
- LED indicators to show the operating status of effects
- 9V DC powered in a rugged Mu-Tron enclosure

Controls:
- Mix: Controls the mix between the direct signal and the effect signal
- Tone (Lo-Hi): Controls the tone
- Ringer: Adds a slight octave up and fuzz tone
- Stabilize (On/Off): Provides note tracking stability
- Bass Only (On/Off): Takes out the input signal
- Fuzz: Adds a warm hi-fi fuzz tone

Specifications:
- 1/4″ Input Jack
- 1/4″ Output Jack
- 9V DC
- Weight: 1 lb
- Dimensions: 4.75″ x 2.5″ x 2.25″
- 1 Year Limited Warranty
- Made in the USA

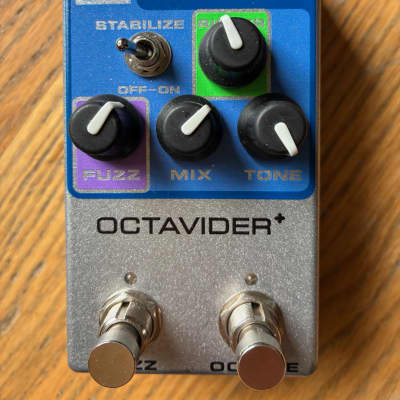

The Octavider+ also includes a new, high-voltage, hi-fidelity "blue" fuzz circuit that adds amazing harmonic distortion, which may be used independently or in addition to the octave effect. The pedal is designed to work in a complementary fashion with the Mu-Tron Micro-Tron IV and Phasor III products to produce a "modular synthesis system."
