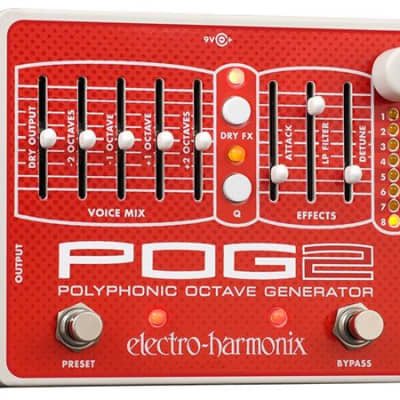

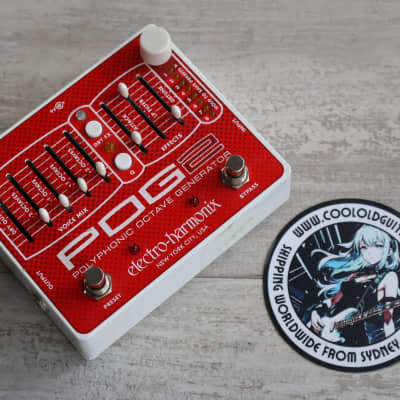

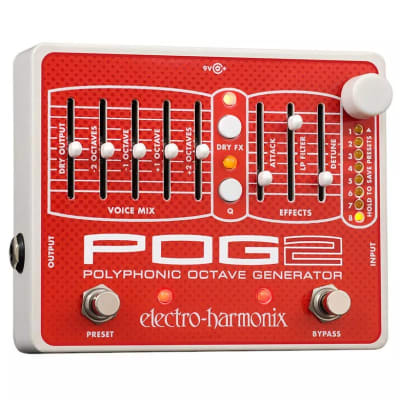

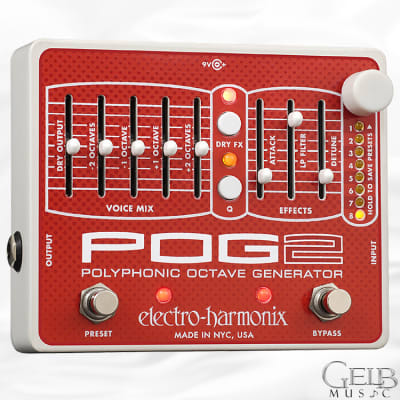

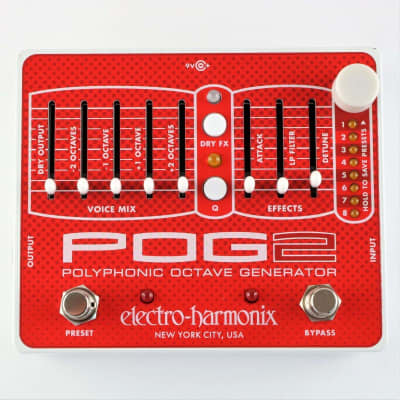

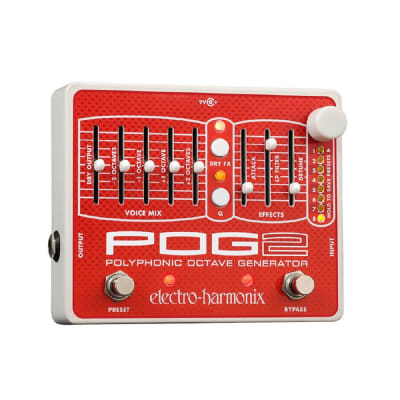

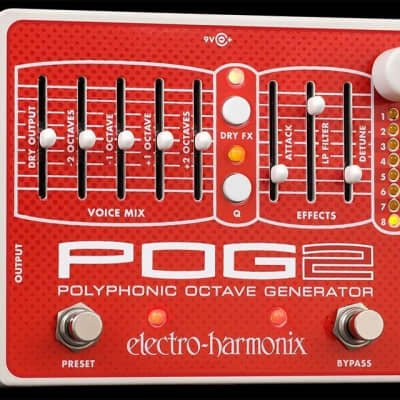

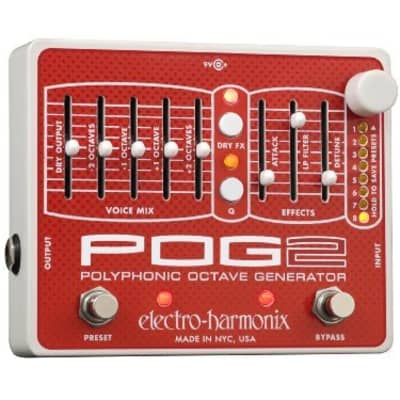

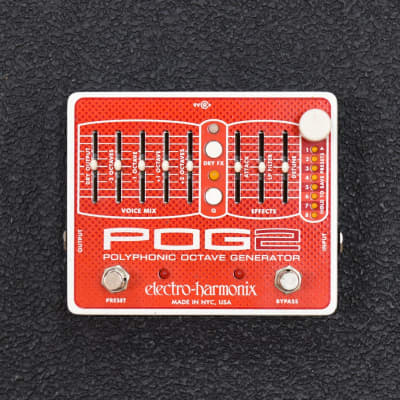

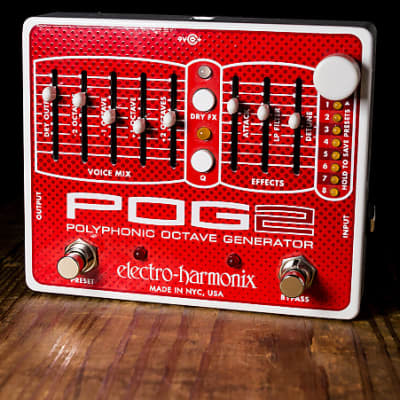

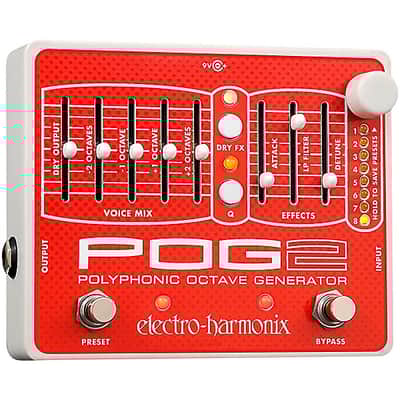

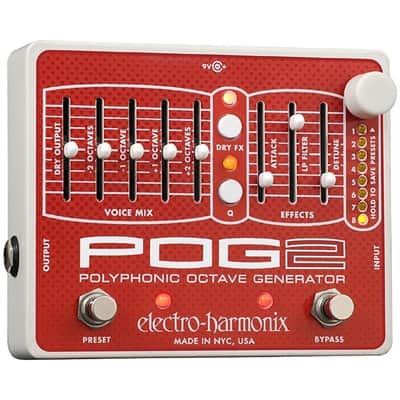

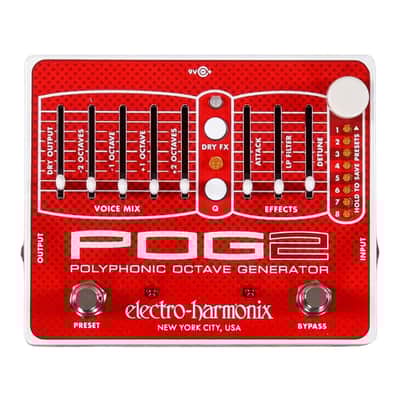

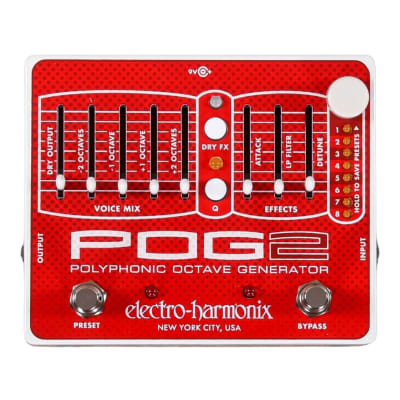

POG2

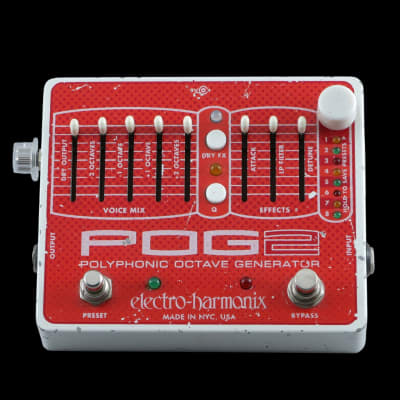

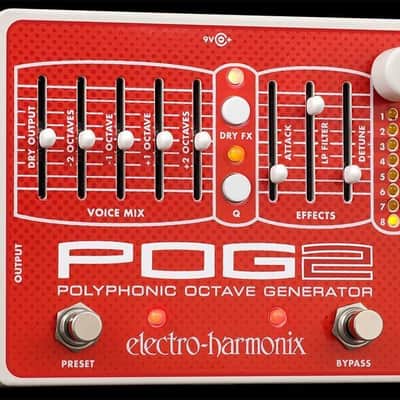

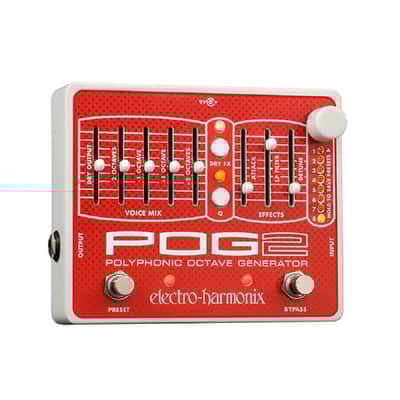

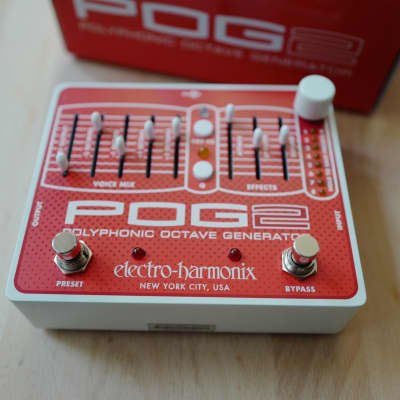

The Electro-Harmonix POG2 Polyphonic Octave Generator features the following technical specifications:

- Circuit: Digital
- Bypass: True Bypass
- Audio: Mono
- Power Supply: 9.6VDC-200mA power adapter included
- Dimensions (in): 5.75 x 4.75 x 2.5
- Current Draw: 160mA
- Year Released: 2009

Key Features:
- Totally programmable 8-preset memory with instant recall
- Four polyphonic mixable voices + your guitar
- Attack delay slider controls the fade-in speed of the octaves
- Low Pass filter with selectable Q
- Flawless polyphonic glitch-free tracking
- Can be daisy chained with other pedals and power supplies

Additional Controls:
- DRY OUTPUT SLIDER: Controls the output volume of the original DRY signal
- -2 OCTAVES SLIDER: Controls the output volume of the signal 2 octaves below the input signal
- -1 OCTAVE SLIDER: Controls the output volume of the signal 1 octave below the input signal
- +1 OCTAVE SLIDER: Controls the output volume of the +1 octave signal
- +2 OCTAVE SLIDER: Controls the output volume of the +2 octave signal
- ATTACK SLIDER: Controls the attack envelope of all the octave voices
- LP FILTER SLIDER: Controls the cutoff frequency of the Low Pass Filter
- DETUNE SLIDER: Controls the amount of detune applied to the +1 and +2 OCTAVE signals
- PRESET KNOB: Selects, loads, and saves the 8 available presets
- PRESET FSW AND LED: Cycles through and loads the 8 available presets
- BYPASS FOOTSWITCH AND LED: Toggles the POG2 between effect mode and true bypass mode
- DRY FX PUSH-BUTTON AND LED: Cycles through four modes allowing the DRY signal to either bypass or pass through the Attack, LP Filter, and Detune effects
- Q PPUSH-BUTTON AND LED: Cycles through four levels of resonance or Q for the Low Pass Filter
