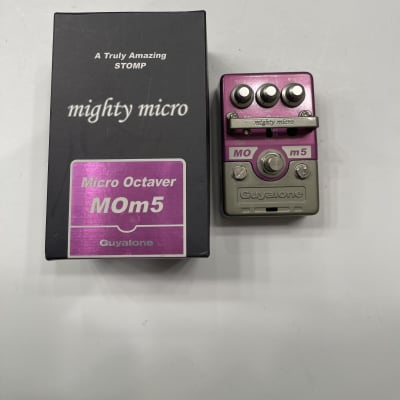

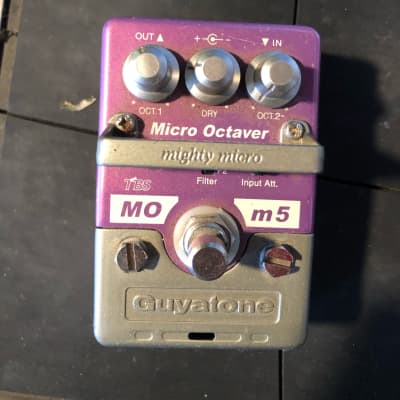

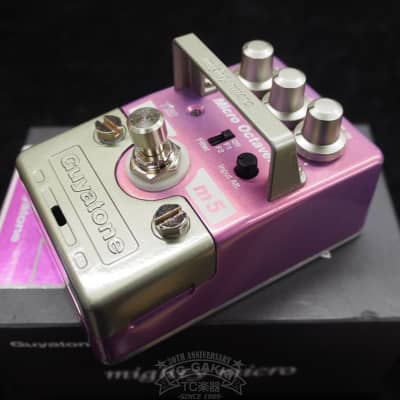

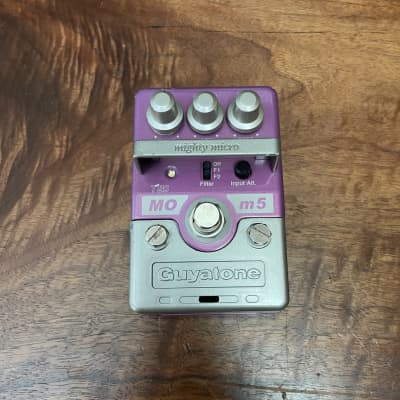

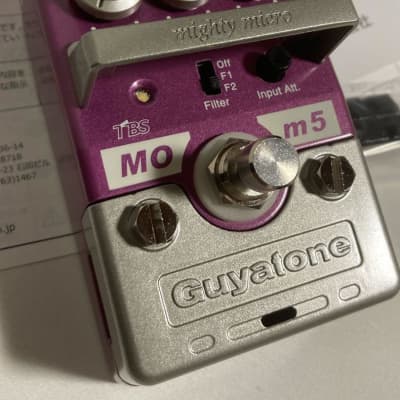

MOm5

The Guyatone MOm5 Mighty Micro Octaver is a guitar effects pedal designed to produce analog octave tones. It features controls for OCT.1, OCT.2, DRY, and INPUT ATTENUATOR, as well as jacks for INPUT, OUTPUT, and DC IN. The pedal also includes a switch for EFFECT ON/OFF (True Bypass) and FILTER (OFF/1/2), with an indicator for EFFECT ON/OFF. The input impedance is 470 kOHM, and the output impedance is less than 10 kOHM. The current consumption is 20 mA (at effect ON), and it requires a DC 9V 006P (6F22)/AC-2 Adaptor for power. The dimensions of the MOm5 are 2-6/10" (W) x 3-9/10" (D) x 2-3/10" (H), and it weighs 8.47 oz. (without battery). The pedal also comes with a 3-year parts and labor warranty.

The MOm5 features One- and Two Octaves down voices along with Dry Blend, and a 3-way Filter switch that selects between a fuzzy, square wave octave tone, a milder sine wave, and a deep organ tone. The Input Attenuator allows for controlling the note-tracking of the pedal’s octave voices, enabling fine- tuning of performance to the specific guitar.
