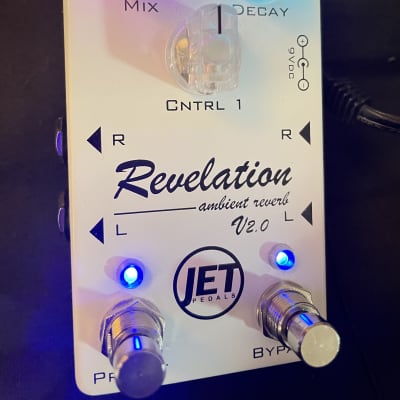

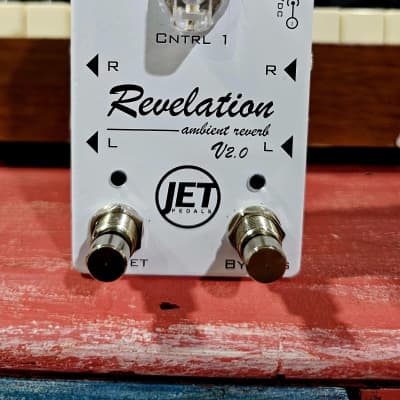

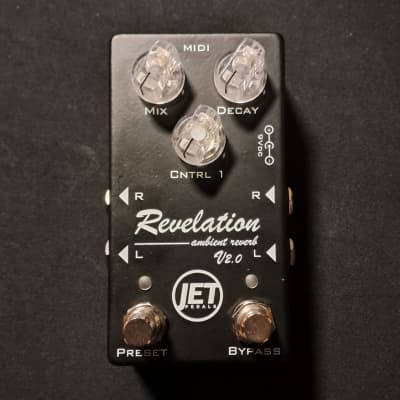

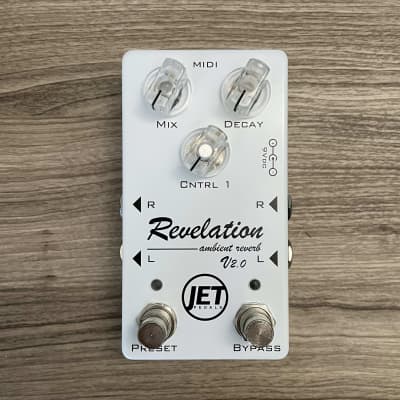

Revelation Reverb V2

The Revelation Reverb V2 by JET Pedals is a versatile effects pedal engineered with six studio-grade algorithms and six onboard presets, expandable to 127 presets via MIDI. It offers full MIDI control over every knob, switch, algorithm, and preset, as well as a live mode, preset mode, and kill-dry mode. The pedal features true stereo ins and outs, with the ability to operate in various mono and stereo configurations. It also includes user-adjustable global settings and power via a 9V (Negative Tip) power supply with a current draw of 250mA. The enclosure dimensions are 4.82" x 2.62" x 1.425".

Algorithms:
1. Spring
2. Room
3. Plate
4. Modulated
5. Shimmer
6. Anti-Shimmer

Key Features:
- Stereo In's & Out's
- 3 Selectable Algorithms
- 3 Selectable Presets
- Full MIDI Control
- Live Mode, Preset Mode, and Kill Dry Mode
- User-Adjustable Global Settings
- Power via 9V (Negative Tip) Power Supply
- Current Draw: 250mA
- Enclosure Dimensions: 4.82" x 2.62" x 1.425"

The pedal also includes additional features such as multi-colored LEDs showing preset and algorithm status, soft click bypass switching, and press-and-hold for infinite bloom decay. It offers over 1 minute of decay and a 0-100% wet mix, making it suitable for a wide range of musical applications.
