Golden Boy

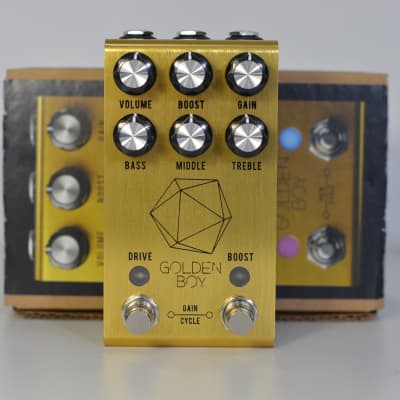

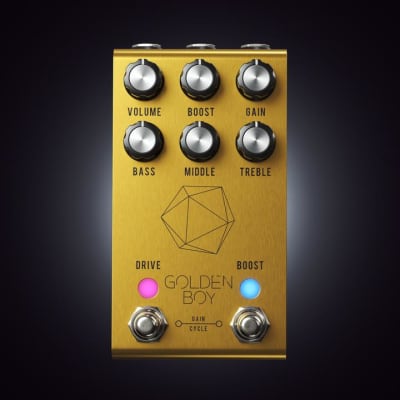

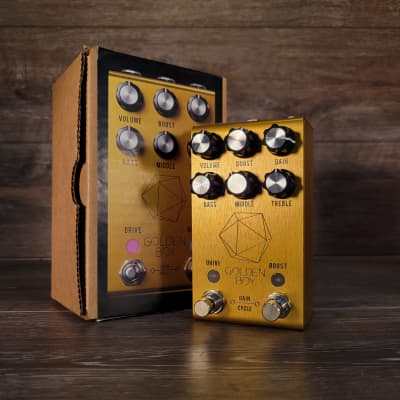

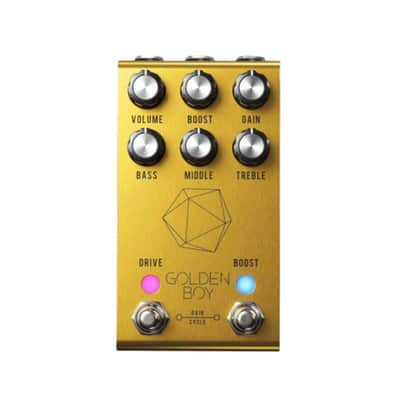

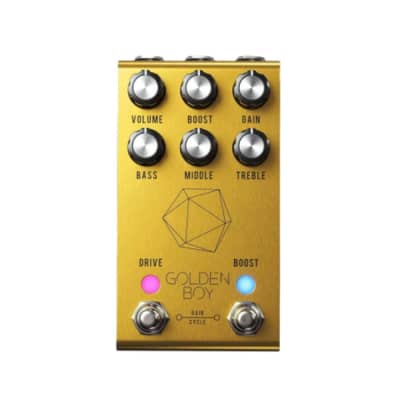

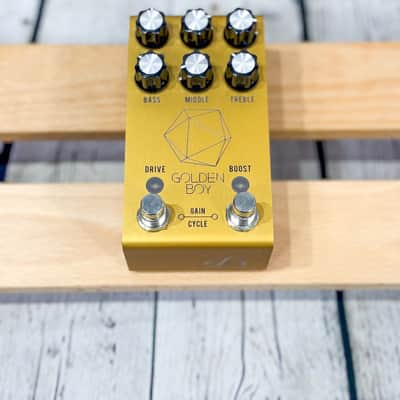

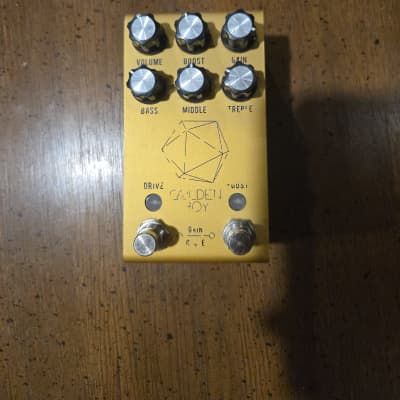

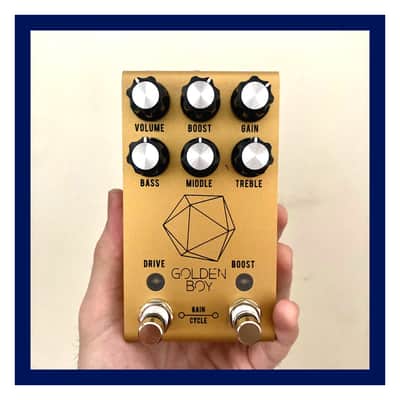

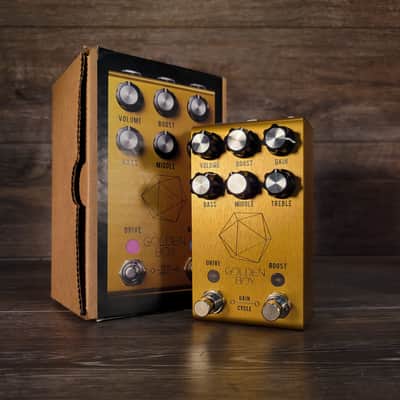

The Golden Boy by Jackson Audio is a versatile and transparent overdrive pedal designed in collaboration with guitarist Joey Landreth. It features a 3-band active EQ, 4 presets for clipping options, and an innovative gain adjustment feature called GAIN CYCLE. The boost circuit, with 4 presets available, is in its own true bypass loop and is based on a MOSFET boost circuit. The pedal is based on the Bluesbreaker/King of Tone circuit, providing open, uncompressed, and transparent overdriven tones.

The Golden Boy allows for 4 different presets of clipping diodes, each drastically altering the tone and feel of the overdrive. The GAIN CYCLE feature divides the GAIN knob setting into 4 equal parts, allowing easy ramping of gain without bending down to adjust settings. The pedal also includes a 3-band active EQ based on the legendary Baxandall EQ, providing tremendous tonal flexibility.

MIDI control is available for clipping options, gain cycle options, boost EQ options, and ON/OFF of the overdrive and boost circuits. The pedal requires a MIDI (DIN-5) to TRS cable for MIDI use and ships with MIDI Channel 1 as the default, which can be changed by pressing and holding the DRIVE footswitch while applying power to the pedal.

Technical Specifications:
- Input Impedance: 1M
- Output Impedance: 100k
- Power Supply: DC
- Voltage Input: 9V MAX
- Polarity: Center Negative
- Min Current Required: 150mA
- Dimensions: 2.7” x 4.875″

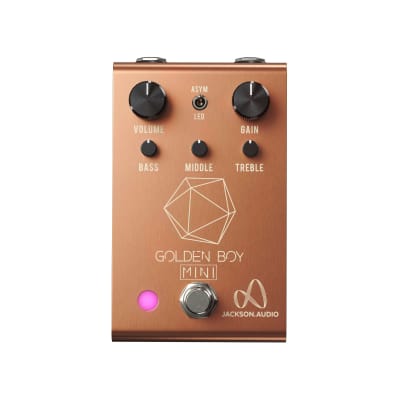

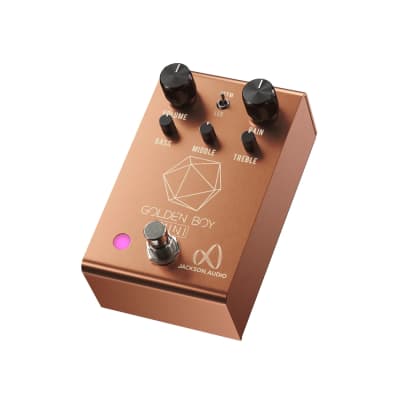

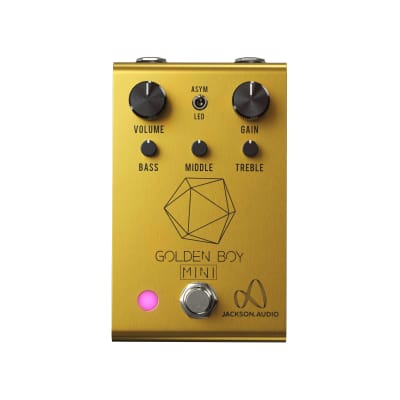

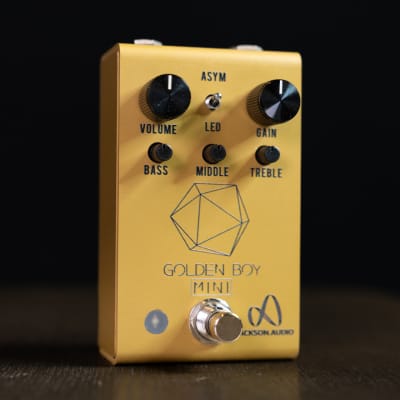

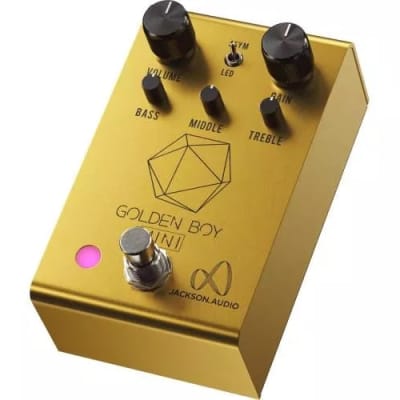

The Golden Boy Mini, a compact version of the pedal, features top-mounted jacks, an input impedance of 1M, output impedance of 100k, power supply of DC, voltage input of 9V, polarity of center negative, current draw of 35mA, and dimensions of 2.5” x 4.25”.
