Diablo GH

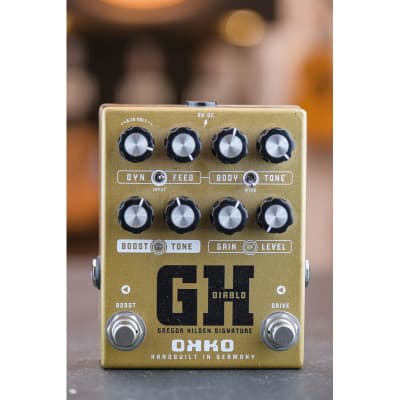

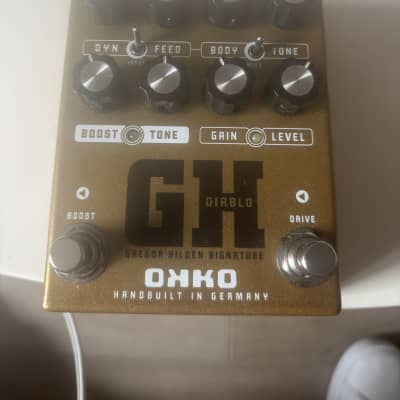

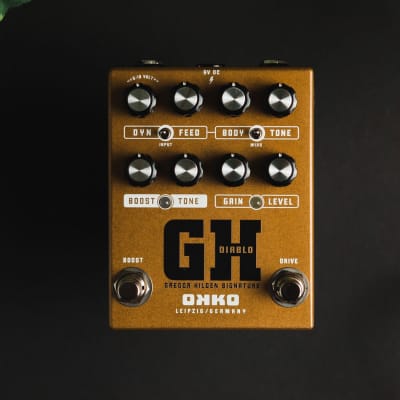

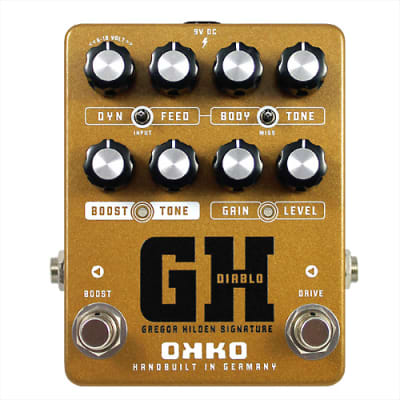

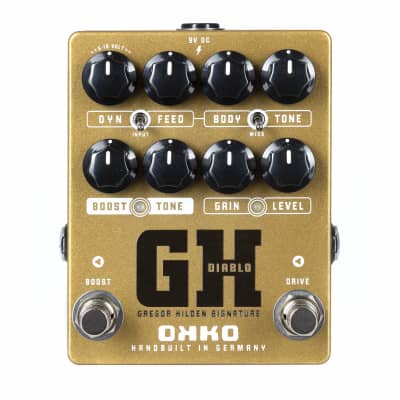

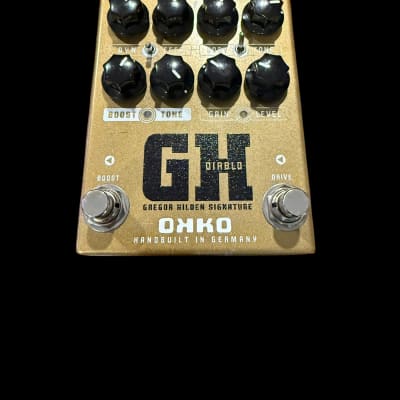

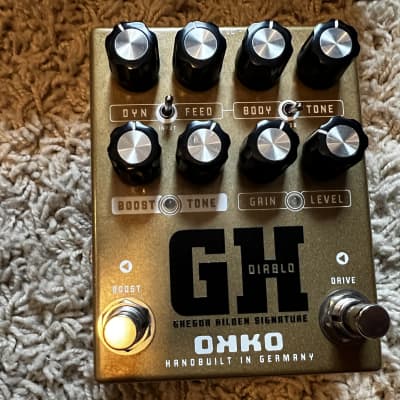

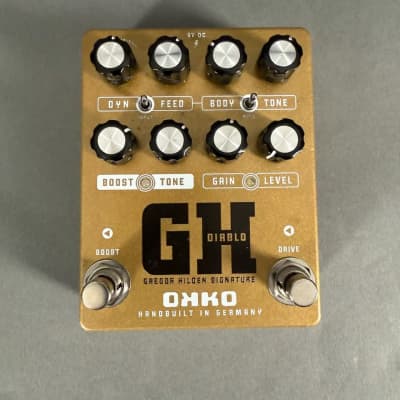

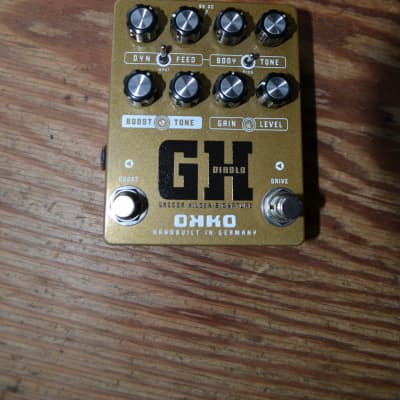

The OKKO FX Diablo GH Signature is a versatile overdrive and boost pedal designed in collaboration with blues guitarist Gregor Hilden. It offers exceptional dynamic qualities and a super-clear, warm tone. The pedal is known for its ability to work perfectly with clean amps and is suitable for various pickups.

Key Features:
- Controls: DYN (adjusts internal voltage from about 6 to 18 volts), FEED (controls low frequencies in the input signal), BODY (adds bass and low mids for a fat sound and different gain structure), INPUT (three-position mini switch for input gain stage sensitivity), MIDS (changes frequencies in the tone control), BOOST (independent circuit with separate boost and tone controls)
- Enclosure Dimensions: Length: 117 mm / 4.5 in, Width: 91 mm / 3.6 in, Height: 40 mm / 1.5 in
- Weight: 429 g
- Power: 9V center negative power, no battery option
- Construction: All metal enclosure, hand-built and wired
- Other Features: LED power indicator, true bypass, all-analog, side-mounted jack sockets

Technical Specifications:
- Technology: Analog
- Effect Type: Overdrive/Boost Pedal
- Mono/Stereo: Mono In, Mono Out
- Controls: DYN, FEED, BODY, INPUT, MIDS, BOOST, TONE, GAIN, LEVEL
- Modes: 4 Modes
- Switches: Input, Mids
- Bypass Mode: True bypass
- Power Supply: 9 VDC, Center negative
- Power Consumption: 5 mA
- Battery Type: 9 V Block
- Housing Size: Medium Size
- Dimensions (WxHxD): 92 x 37 x 120 mm
- Suitable for Harps: Yes
- Boutique Effect: Yes
- Country of Origin: Germany
