Roach

The Roach by Fortin is a 3-way signal splitter with discrete Class-A buffers. It is designed to reinstate tone and remove top-end loss caused by running a board full of true bypass pedals. The Roach has 3 outputs and is suitable for use with the Mini Zuul or Zuul+ pedals. It allows for a variety of options, including triggering a gate, recording the signal before amp saturation, and running multiple amps simultaneously.

Technical Specifications:
- Built in U.S.A.
- Highest grade materials selected for superior sound, response, and reliability
- Industry Standard 3DPT true bypass mechanical stomp
- Input impedance: ~1MΩ / Output impedance: ~10kΩ minimum load
- Frequency response: 20Hz to 20kHz
- Max output: +9dBm (9VDC), +18dBm (24VDC)
- Power supply: 9-24VDC center-pin negative (fully regulated) external adapter/power supply only (not included)
- Power draw: 4mA
- Pedal Dimensions (W/D/H): 3.6” x 1.5” x 1.2” (92mm x 38mm x 31mm) excluding knobs and switches
- Shipping Weight: 360g
- Includes Fortin’s limited 1-year warranty

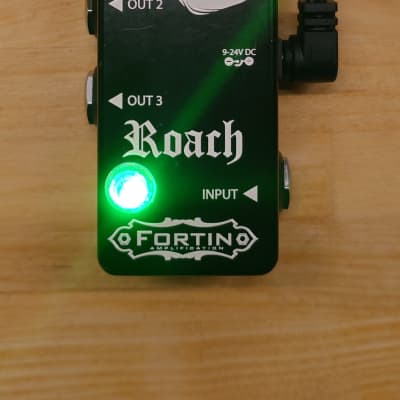

The Roach is an exceptionally low-current circuit and can be run on a 9VDC battery for extended use, or an external power supply can be used via the DC inlet, between 9-24VDC. It features a green LED indicator for active status and a red LED for muting outputs 1-3. The pedal also includes a mosfet input to protect against the wrong orientation adapter connection.
