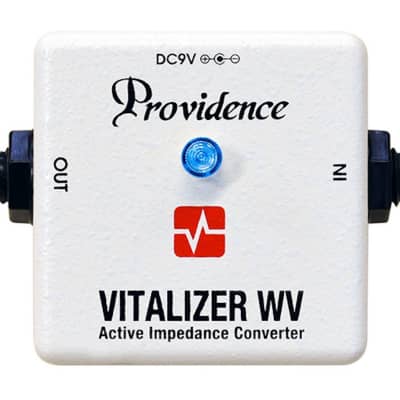

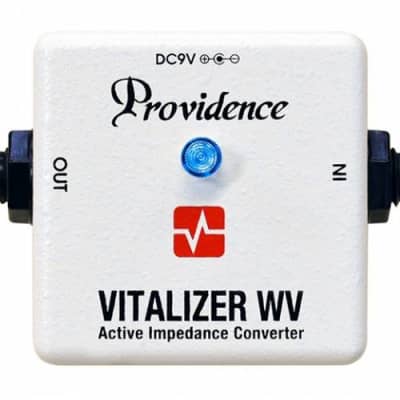

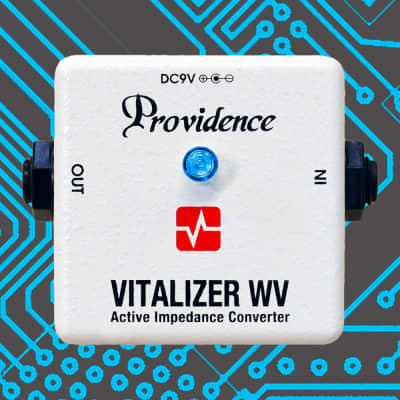

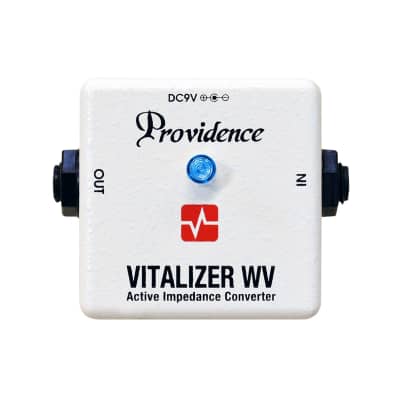

Vitalizer WV

The Vitalizer WV by Providence, model VZW-1, is an active impedance converter designed to enhance sound quality when using a passive-pickup guitar with wah or volume pedals. It converts high impedance signals, which are prone to degradation and noise, into low impedance signals, preserving the original sound quality.

Specifications:
- Connectors: 1/4-inch phone jack x 2 (INPUT and OUTPUT), DC 9V input jack (AC adaptor jack)
- Power Supply: 9V battery or AC adaptor
- Power Consumption: DC 9V, 3 mA approx. (effect ON)
- Dimensions: 60(D) x 73(W) x 43(H)mm
- Weight: 100 g approx.

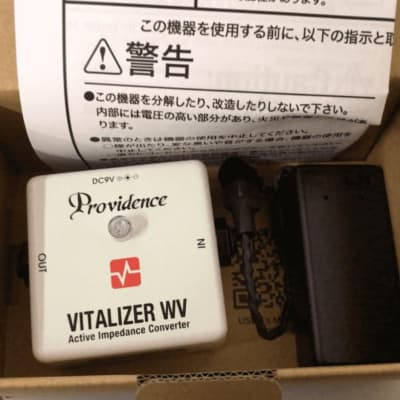

- Supplied Accessories: Outer Battery Box LE-OBB-2, 006P 9V Battery (6F22)

Use Cases:
The Vitalizer WV is particularly effective when placed next to wah or volume pedals, minimizing tonal changes and signal degradation. It can be positioned at the last position before the amp or the first position after the guitar to control the signal with minimized degradation on pedals.

Design:
The pedal is designed in a small chassis (60x73mm), allowing it to be placed in a small space on the pedalboard. It can be powered by a 9V battery or an AC adaptor, providing flexibility in usage.

Functionality:
The Vitalizer WV actively converts high impedance signals to low impedance signals, ensuring minimal degradation and noise pickup. It is designed to deliver a natural, faithful instrument sound while respecting the character of guitar and effect pedal signals.

Overall, the Vitalizer WV serves as an essential tool for maintaining sound quality and minimizing signal degradation when using passive-pickup guitars with wah or volume pedals.
