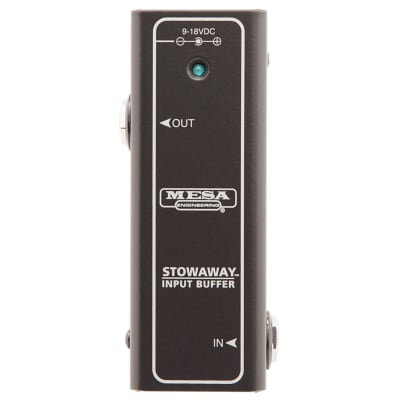

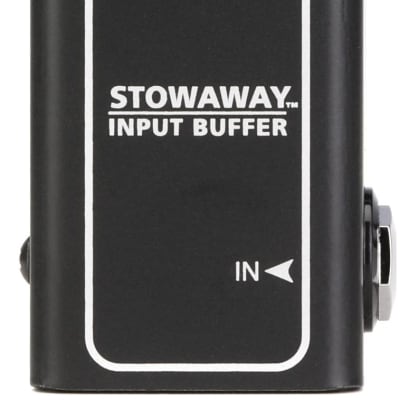

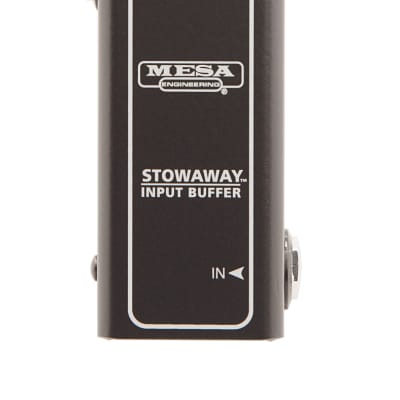

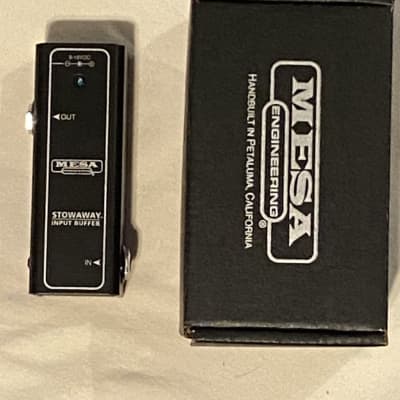

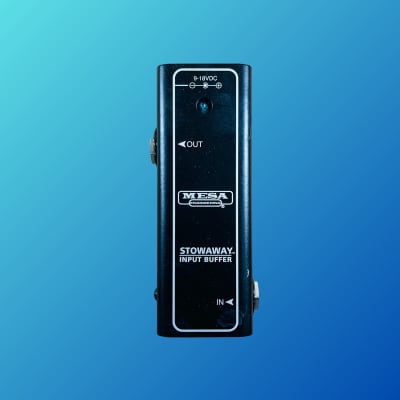

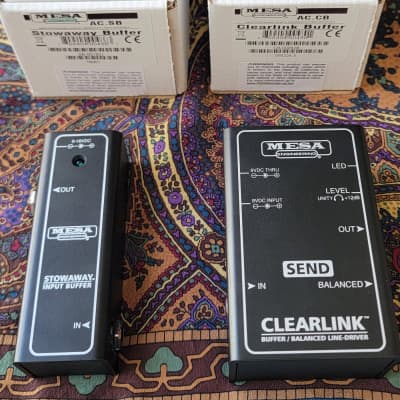

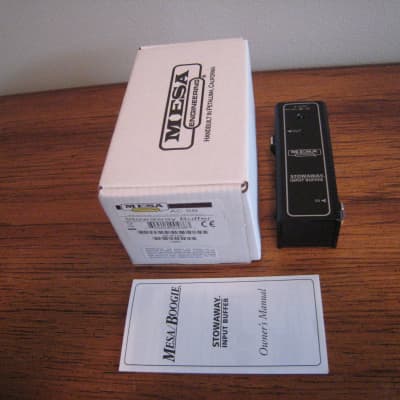

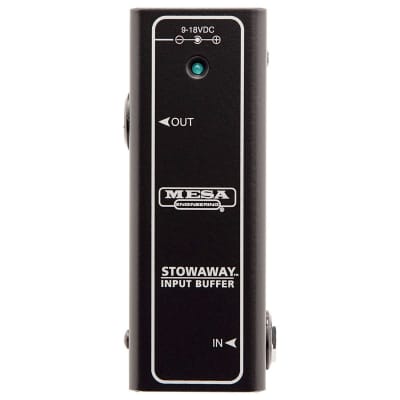

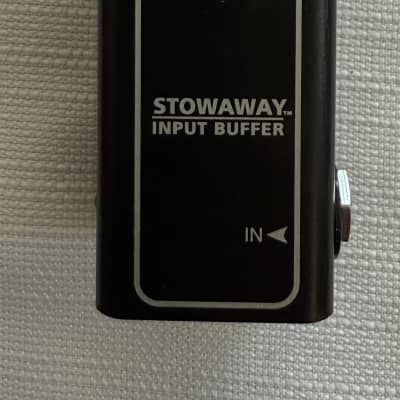

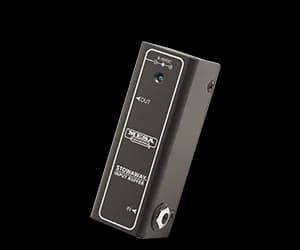

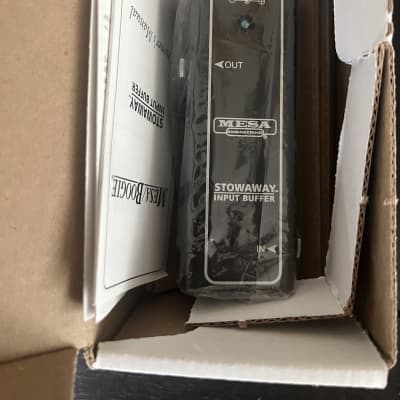

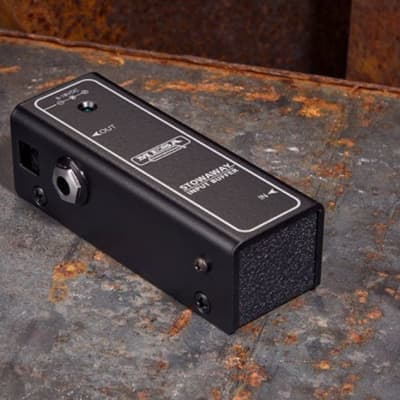

Stowaway Input Buffer

The Mesa/Boogie Stowaway Input Buffer is a compact 100% discrete Class-A solution designed to address various input challenges caused by impedance loading, mismatching, and changes in a pickup's character and response due to varying effect pedals' input impedance and interconnecting cables' capacitance. The Stowaway provides a stable, consistent load for the instrument to maintain its intended sound.

Key Features:
- 100% Discrete Class-A Circuit
- RFI Filtering to minimize radio-frequency interference and noise
- On/Off Status LED
- 9-18VDC External Power Jack Input (power supply not included)

Technical Specifications:
- Input Impedance: 1M Ohm
- Output Impedance: 150 Ohm
- Buffer Design: Discrete Class-A
- Nominal Operating Voltage: 9-18VDC
- Maximum Operating Voltage: 20VDC
- Typical Current Draw: 10mA @ 9VDC
- Weight: .267 lbs (121.1 g)
- Dimensions (W x D x H): 1.42 x 3.98 x 1.24 inch (36 x 101 x 32 mm)

It is important to note that the external power supply must be 9-18VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm barrel plug to avoid immediate damage and voiding the warranty.

The Stowaway Input Buffer is designed to provide the tone and feel of plugging directly into a high-quality tube amp, ensuring consistent tone and feel for the guitar amidst the variables on a pedalboard and long cable runs to a back- line amplifier.
