Organizer

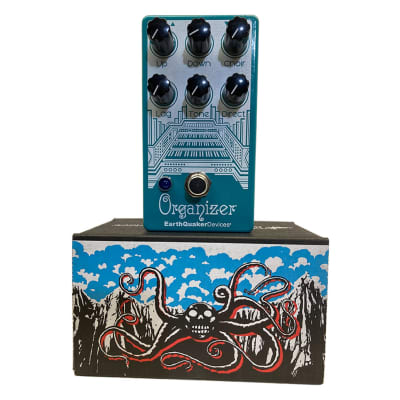

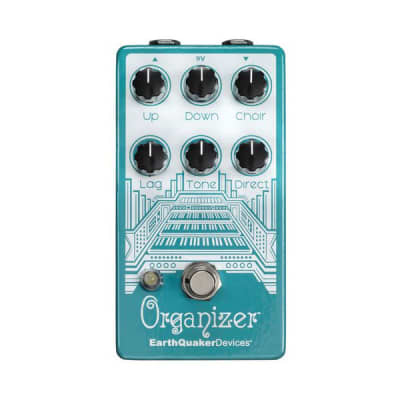

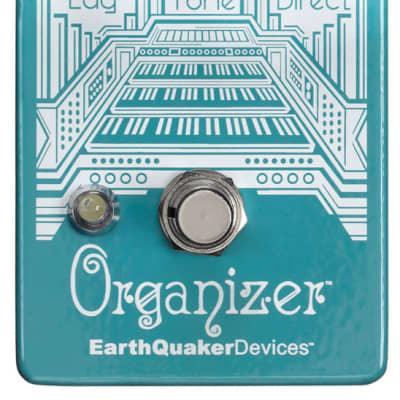

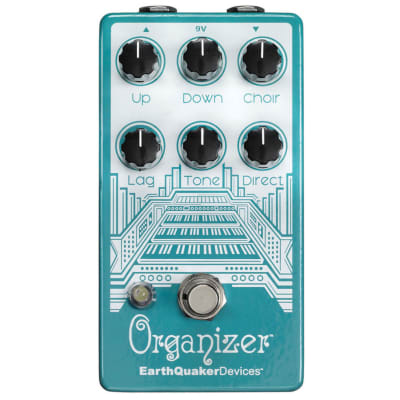

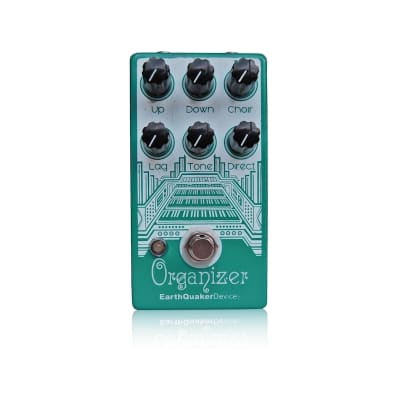

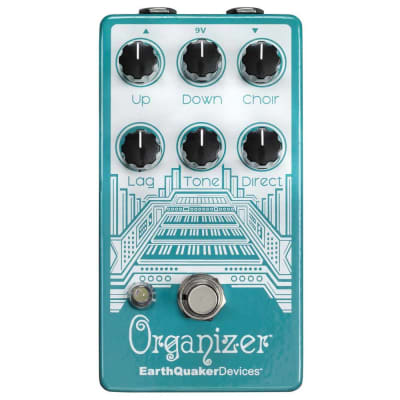

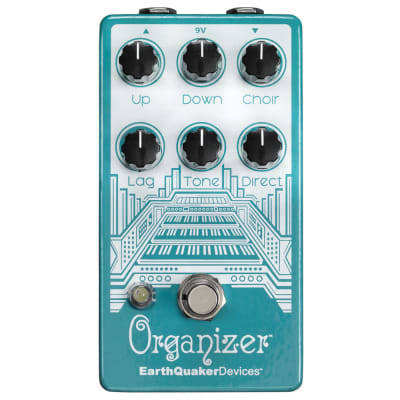

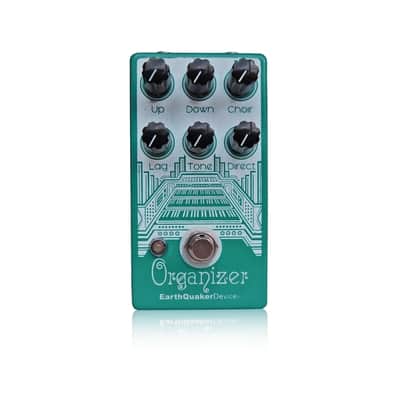

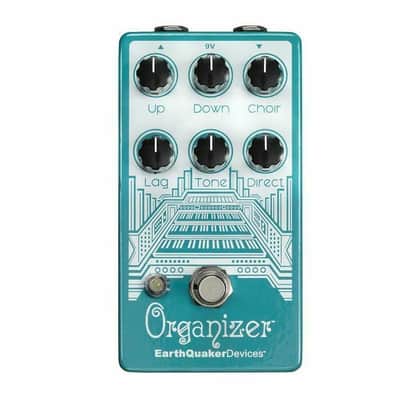

The Organizer by EarthQuaker Devices is a polyphonic organ emulator designed to replicate the organ tones of the past, combined with the unique "Guitorgan" sound. It offers a warm, analog feel with a hint of Leslie warble, distinct from modern octave shifters. The pedal is capable of tracking chords and single notes across the entire guitar and bass neck. Additionally, it can be used with vocals, synths, horns, and drums.

Key Controls:
1. Up: Level control for the octave up.
2. Down: Level control for the octave down.
3. Choir: Mixes the octave up and octave down settings, generating an additional 2 octaves up, 2 octaves down, and direct signal with a slight delay for a "church organ" feel.
4. Lag: Delay control for the wet signal.
5. Tone: Adjusts the high-end frequencies.
6. Direct: Level control for the analog dry signal.

Technical Specifications:
- Dimensions: 4.75 x 2.50 x 2.25 inches (121 x 64 x 57 mm) with knobs
- Current Draw: 81 mA
- Input Impedance: 1 MΩ
- Output Impedance: 500 Ω
- Switching: True bypass using electronic relay-based switching
- Power: Standard 9-volt DC power supply with a 2.1mm negative center barrel

The Organizer utilizes a mix of analog and DSP circuitry, ensuring a true bypass and an all-analog dry signal path. It is suitable for a wide range of musical applications due to its versatile and high-quality performance.
